Battery drill winch 1000kg
by Gebuwin
SKU DW1000
Capacity: up to 1000Kg
Save 35%
Price on application.

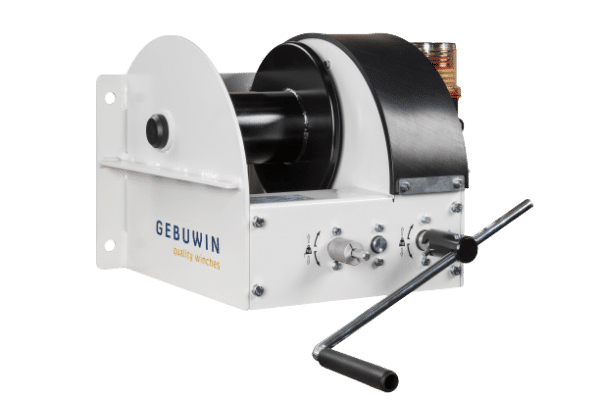

This worm gear winch can be controlled manually with a crank or with a cordless drill, ideal in situations where there is no electrical power available but you do not want to move the load manually.

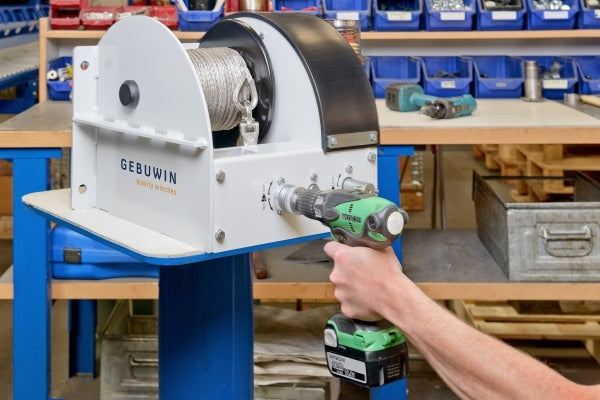

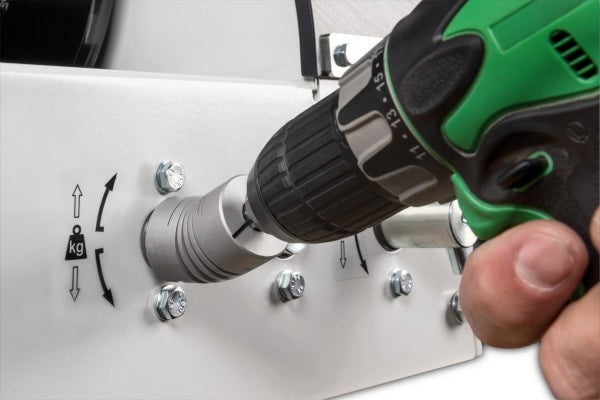

- Lifting loads with crank and (cordless) battery drill

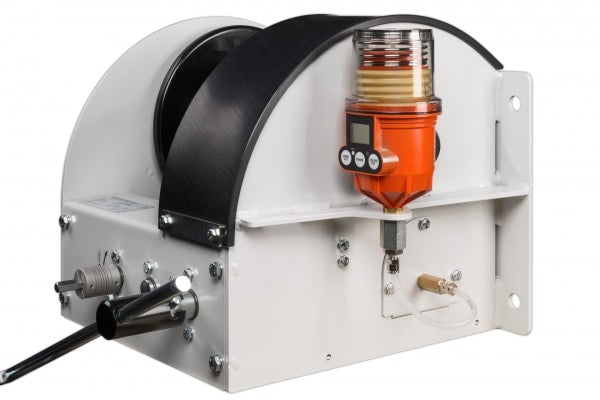

- Automatic grease lubrication system

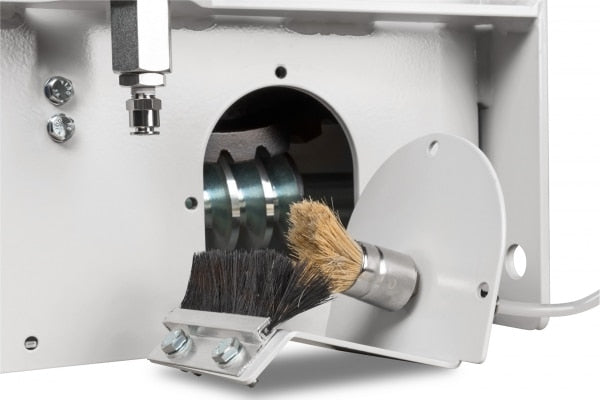

- Flexible head to absorb vibrations
| Capacity 1st layer | 1000 kg (2205 lb) |
| Capacity 4th layer | 725 kg (1598 lb) |
| Capacity top layer | 527 kg (1162 lb) |
| Lifting speed | 0.5 m/min (2 ft/min) |
| MBL of cable | 30 kN |
| Rope diameter | 8 mm (0.31 in) |
| Rope storage 1st layer | 5.5 meter (18 ft) |
| Rope storage 4th layer | 29.2 meter (96 ft) |
| Rope storage top layer | 73 meter (240 ft) |
| Lift per crank rotation | 9 mm (0.35 in) |
| Crank effort at full load | 11 daN |
| Torque ingoing shaft | 6 Nm |
| Max. input rotation speed drill | 650 rpm |
| Weight (without rope) | 39 kg (86 lb) |
