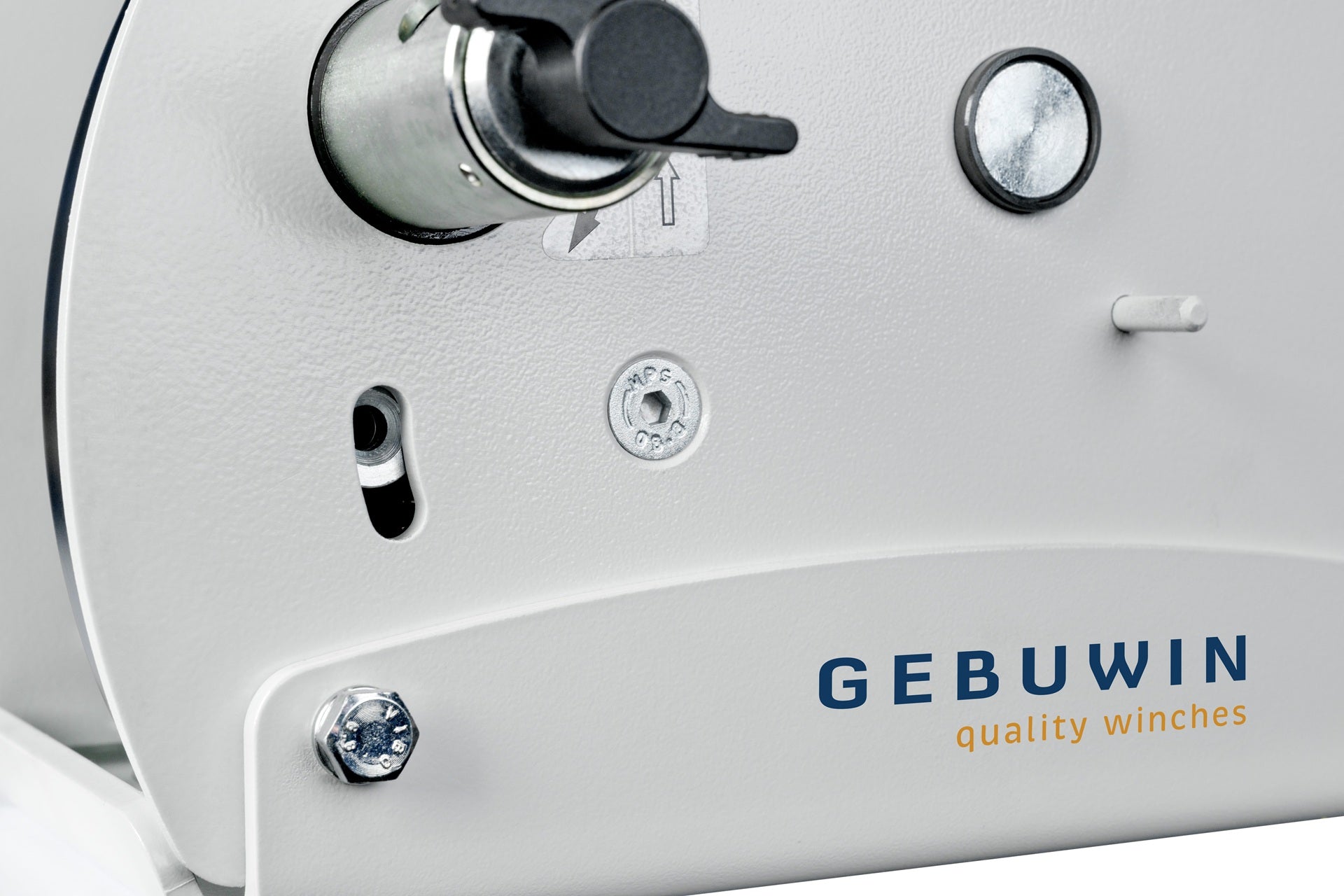

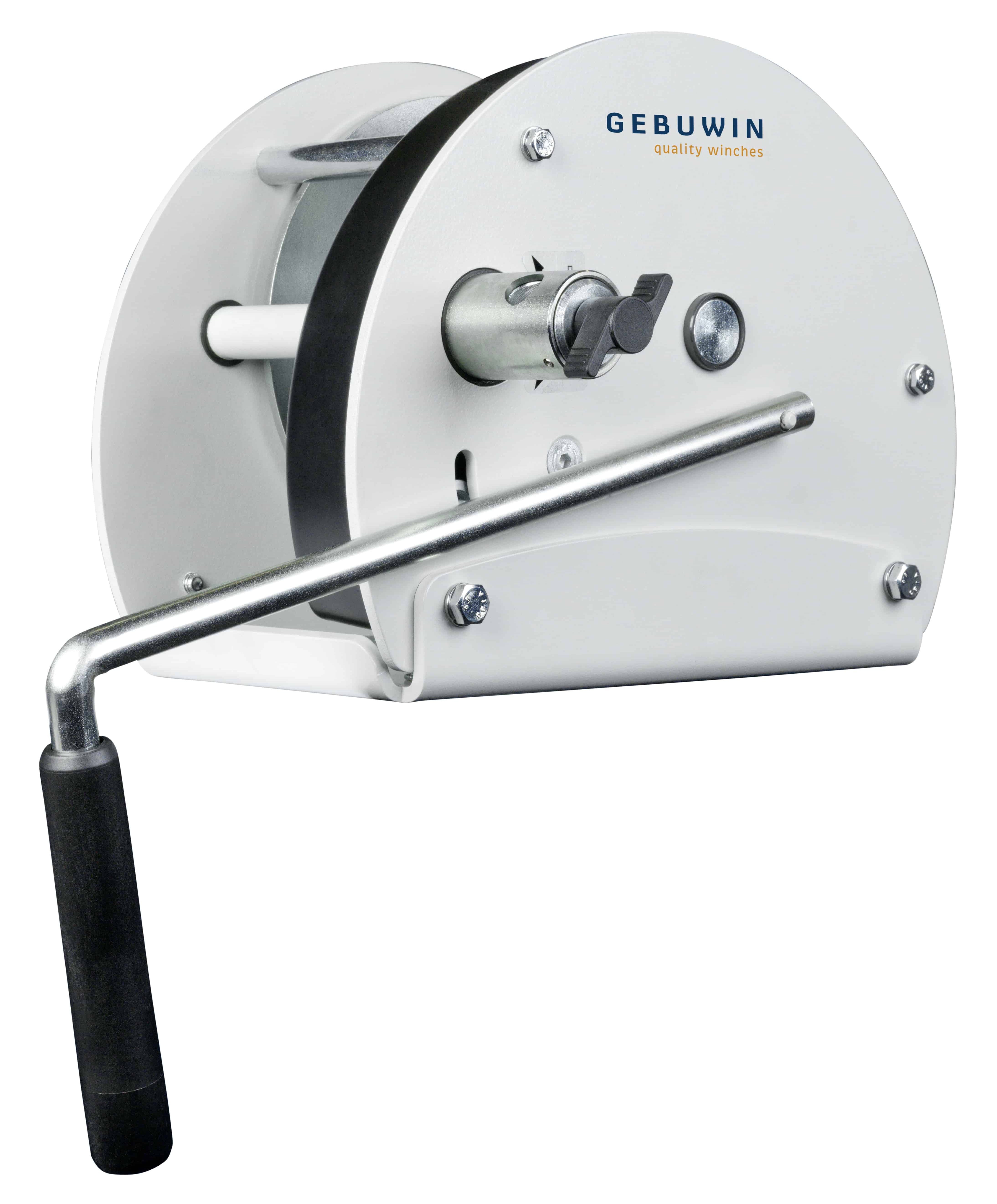

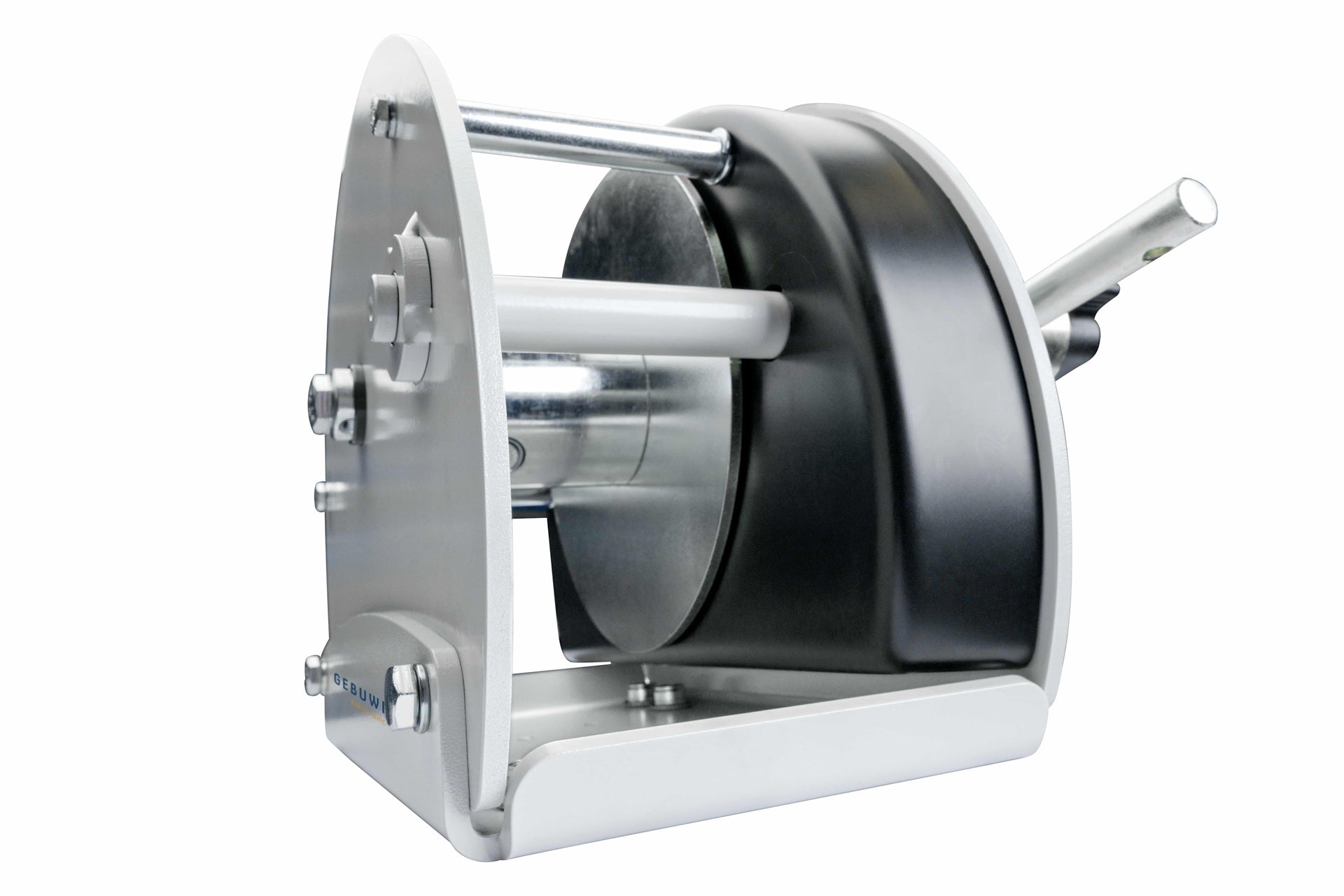

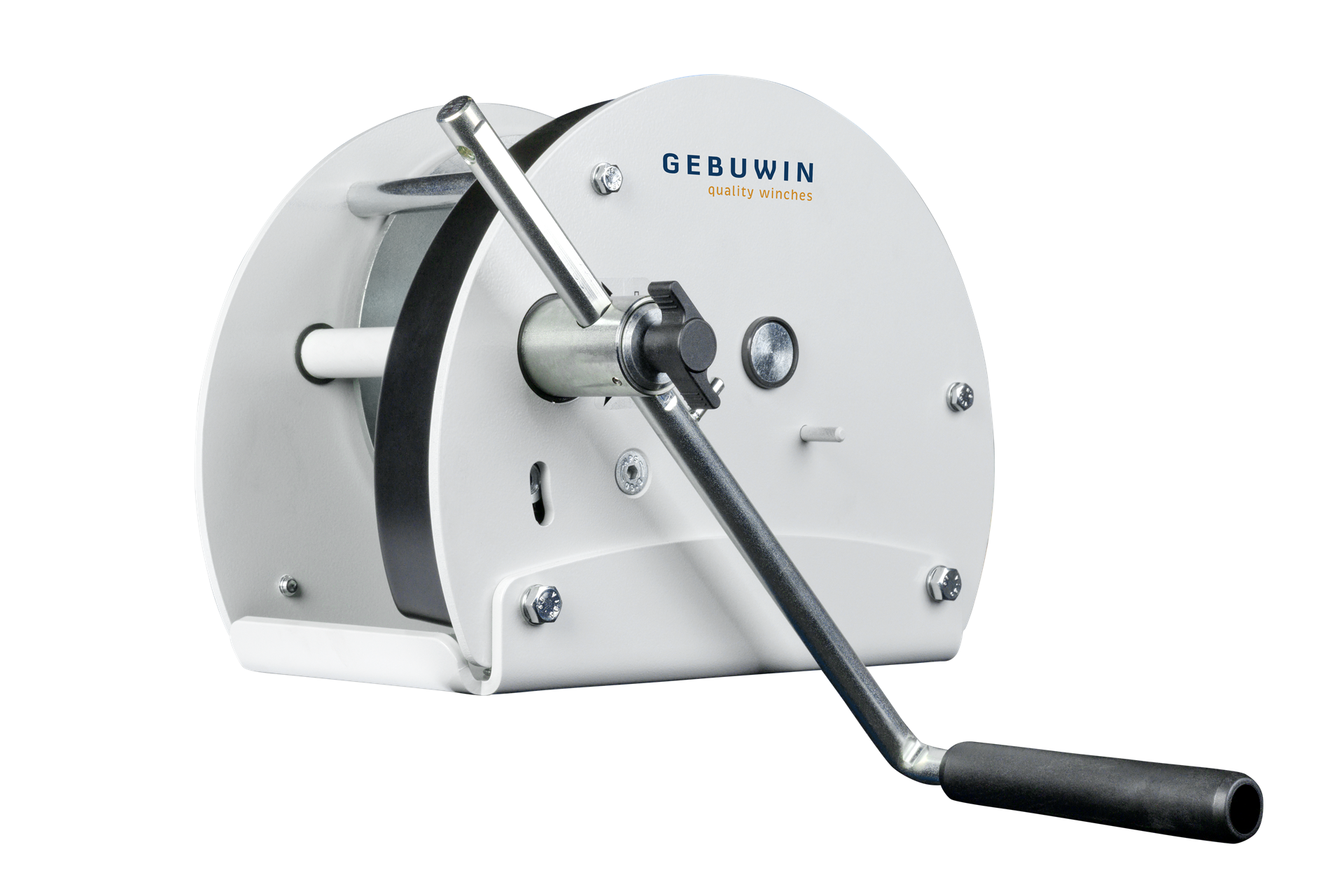

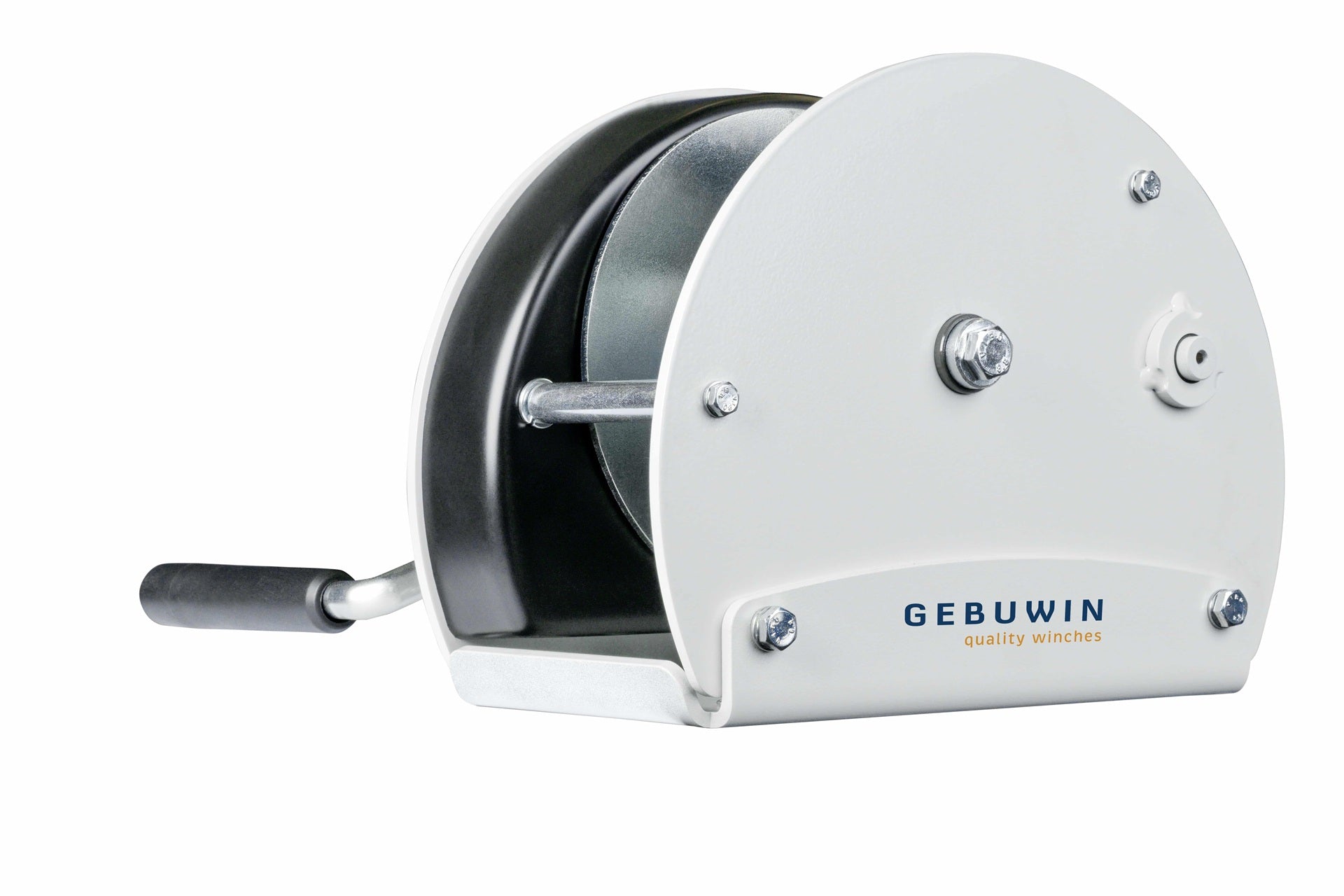

Console winch
by Gebuwin
SKU CW700
Capacity: up to 700Kg
Save 35%
Price on application.

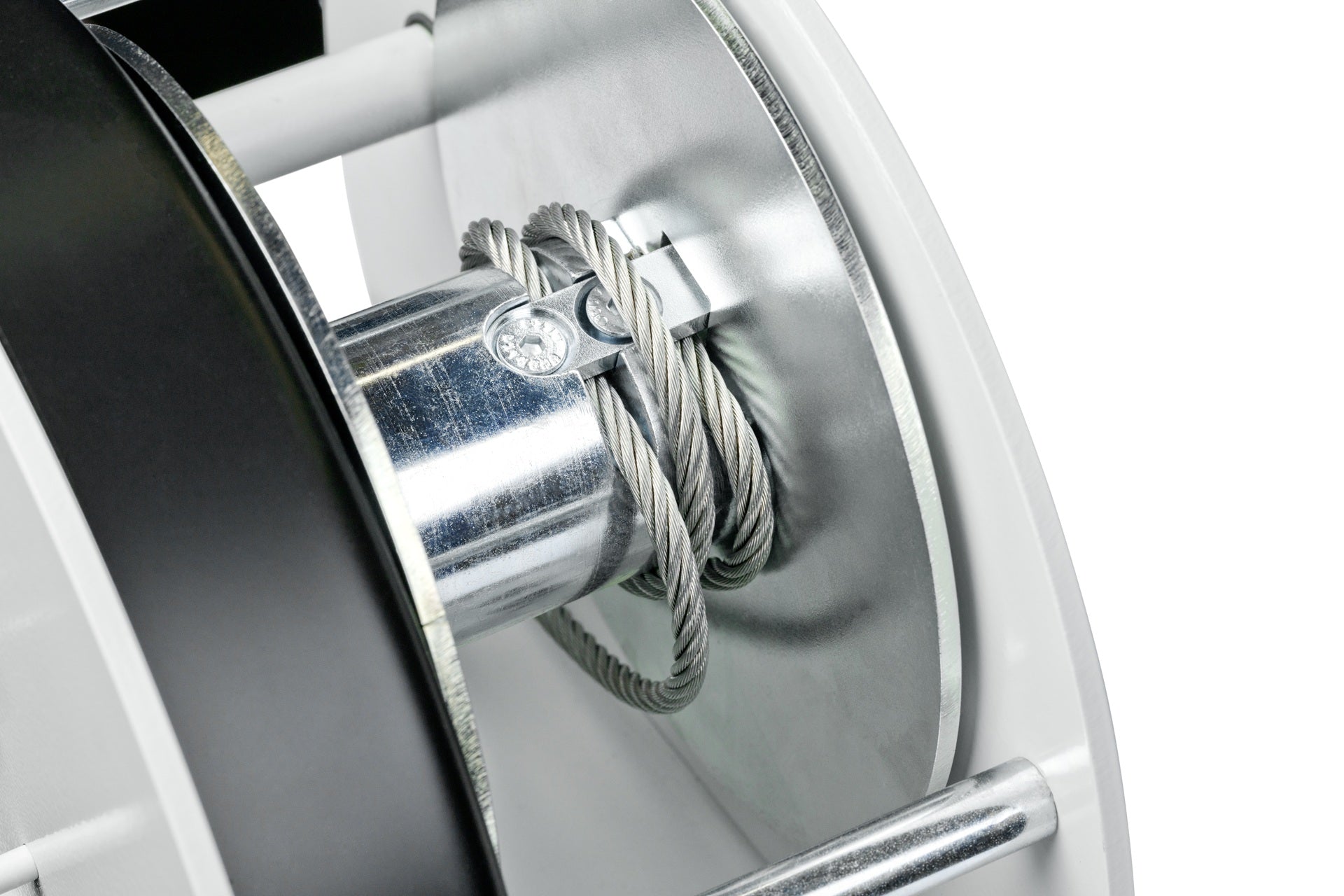

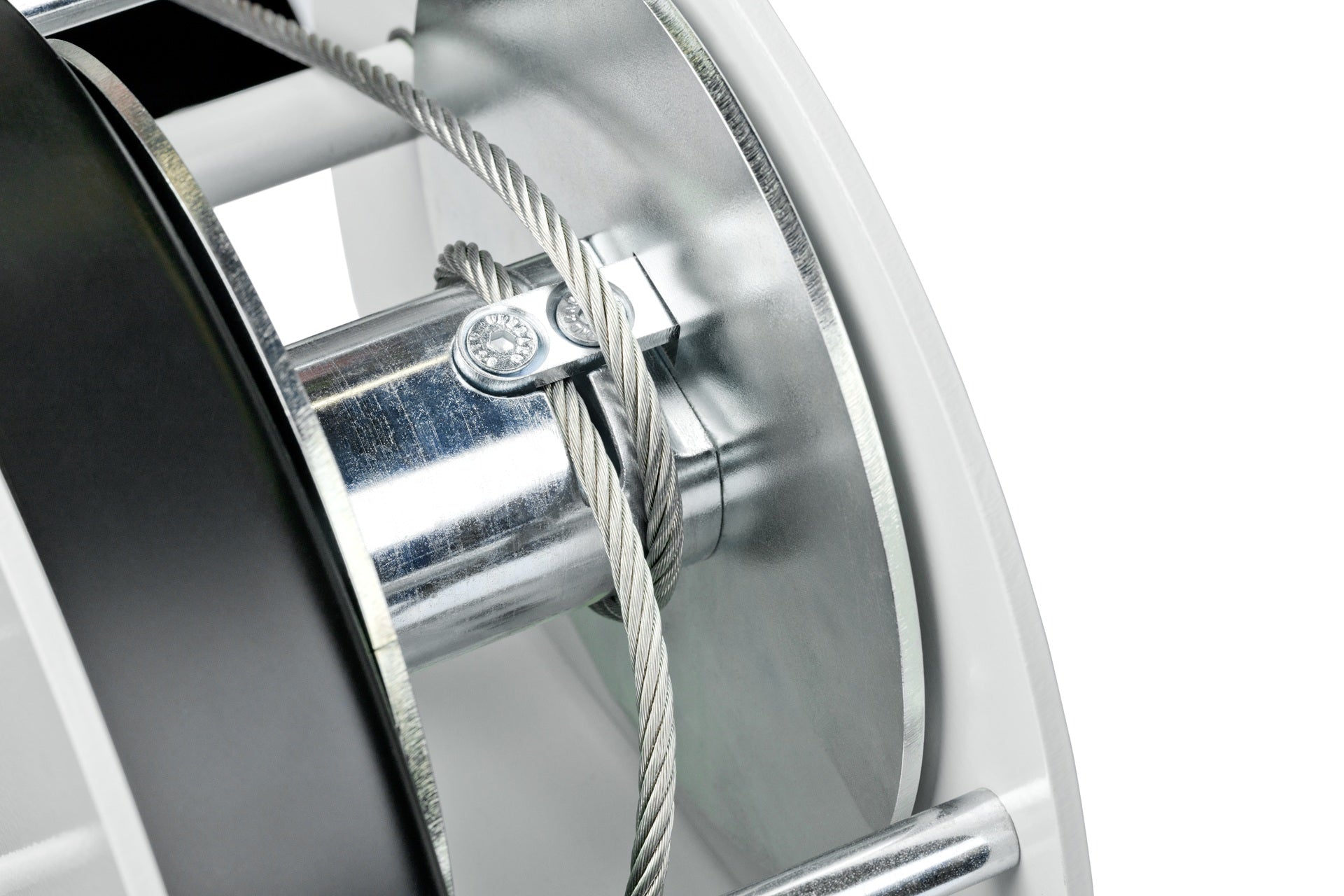

This spur gear winch is fast (2,2 m/min), easy and can be mounted on both walls and floors. The free spool option makes it posible to disengage the drum from the winch to pull out the wire quick. In addition to IP54 water resistance, this winch is also available in stainless steel 304 and 316.
- High speed due to spur gear transmission

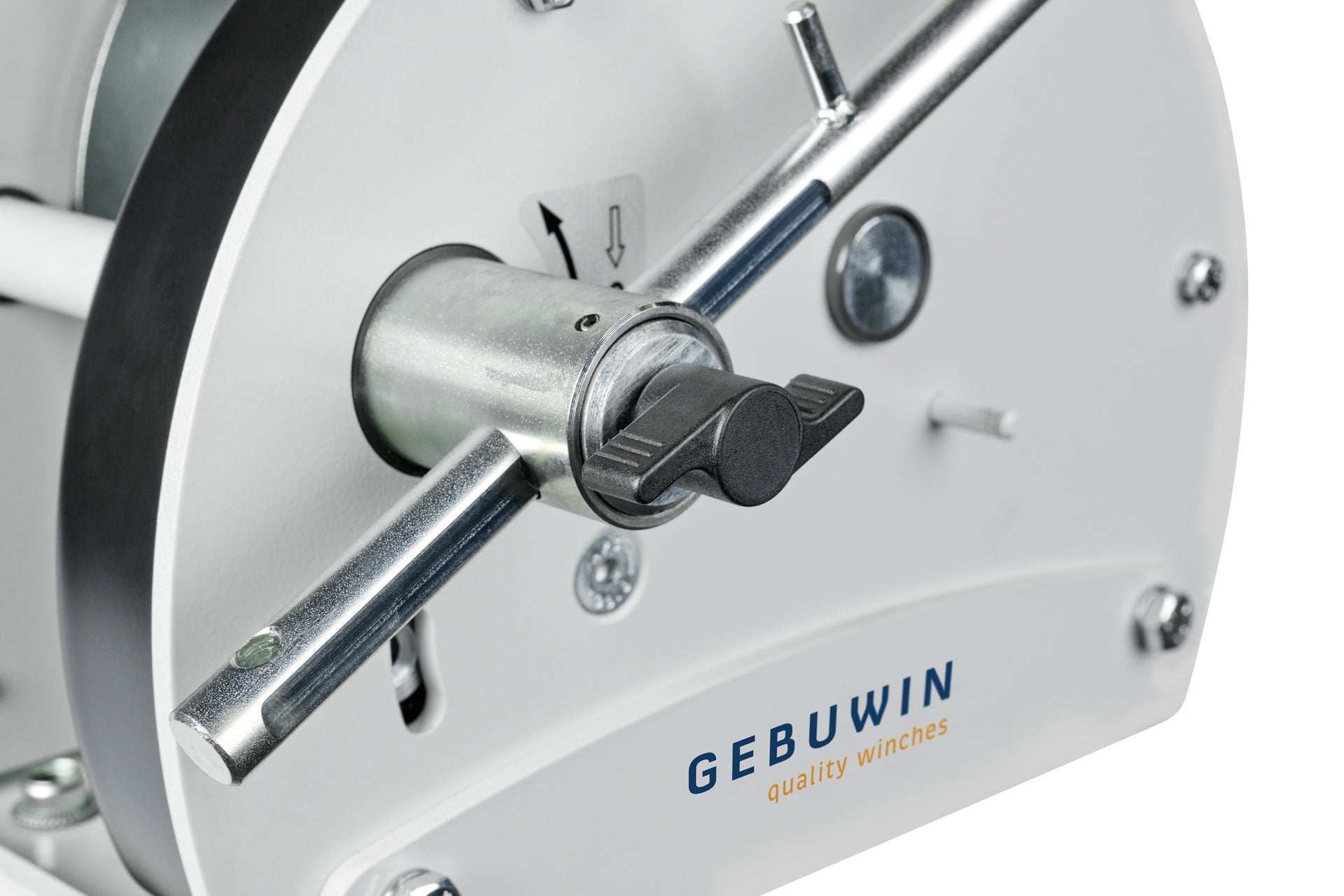

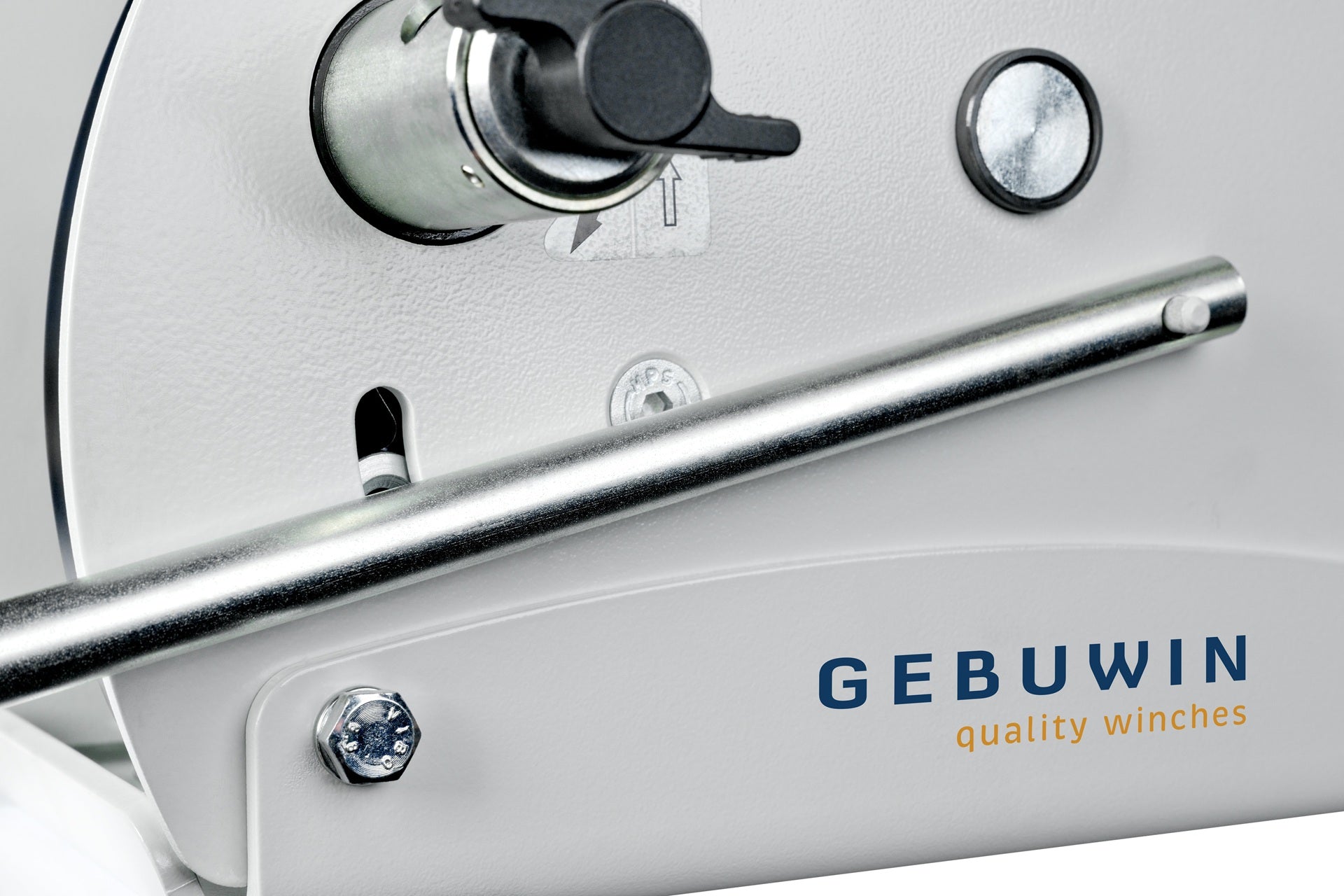

- Freespool – to disengage the drum
- Load pressure brake with double ratchet system
| Capacity 1st layer | 700 kg (1543 lb) |
|---|---|
| Capacity 4th layer | 475 kg (1047 lb) |
| Capacity top layer | 290 kg (639 lb) |
| Lifting speed | 2,2 m/min (7 ft/min) |
| Rope diameter-Ø | 6 mm (0.24 in) |
| MBL of cable | 21 kN |
| Rope storage 1st layer | 2 meter (7 ft) |
| Rope storage 4th layer | 11 meter (36 ft) |
| Rope storage top layer | 40 meter (131 ft) |

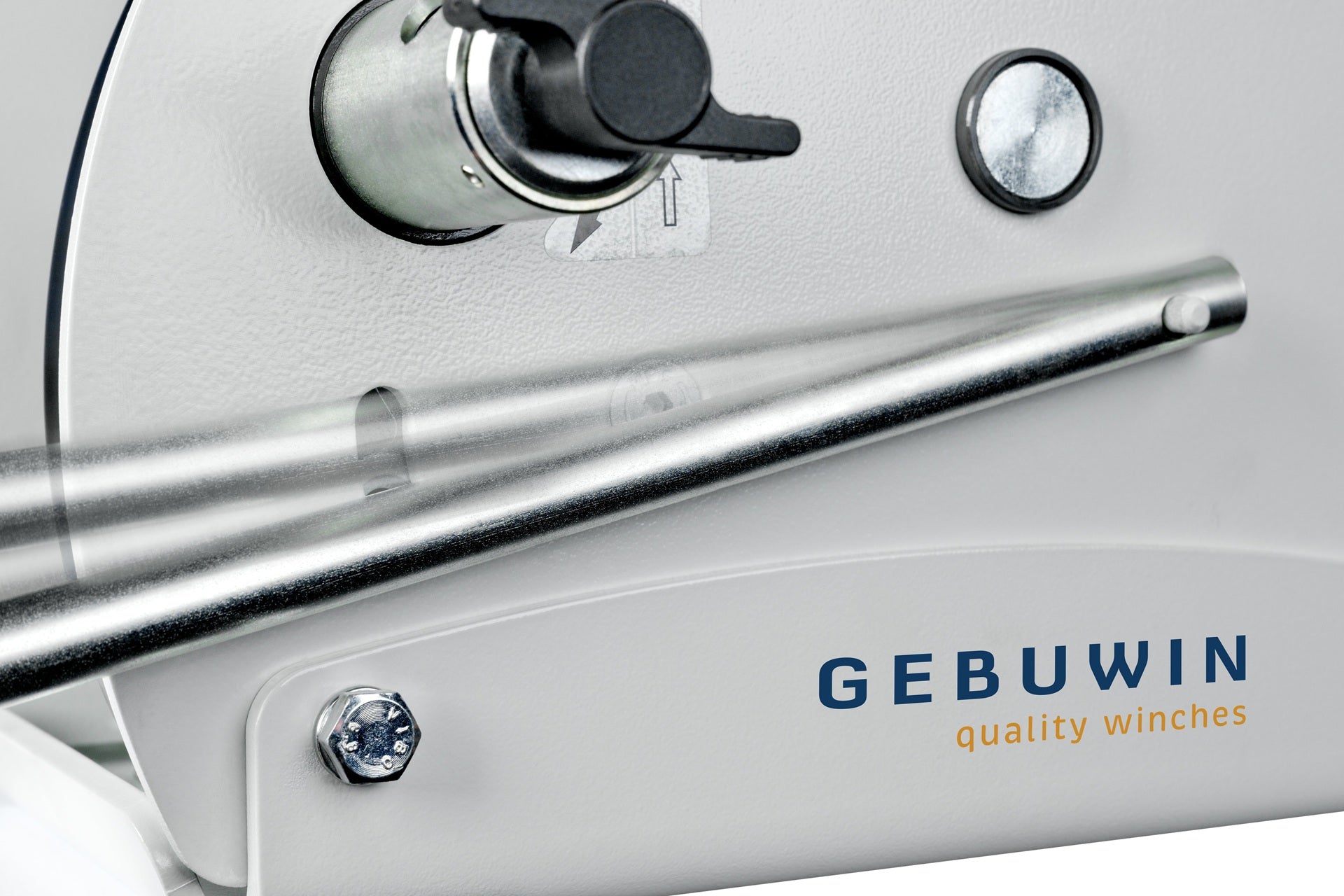

| Crank effort at full load | 15 kg (33 lb) |
| Weight (without rope) | 13,7 kg (30 lb) |
| Article number | 77155130 |
| Type name | CW700 |
Price on application.
If the options here don't meet your requirements, we can customise your order.
Please give us a call on (021) 4885 311 or complete the quote request form.
