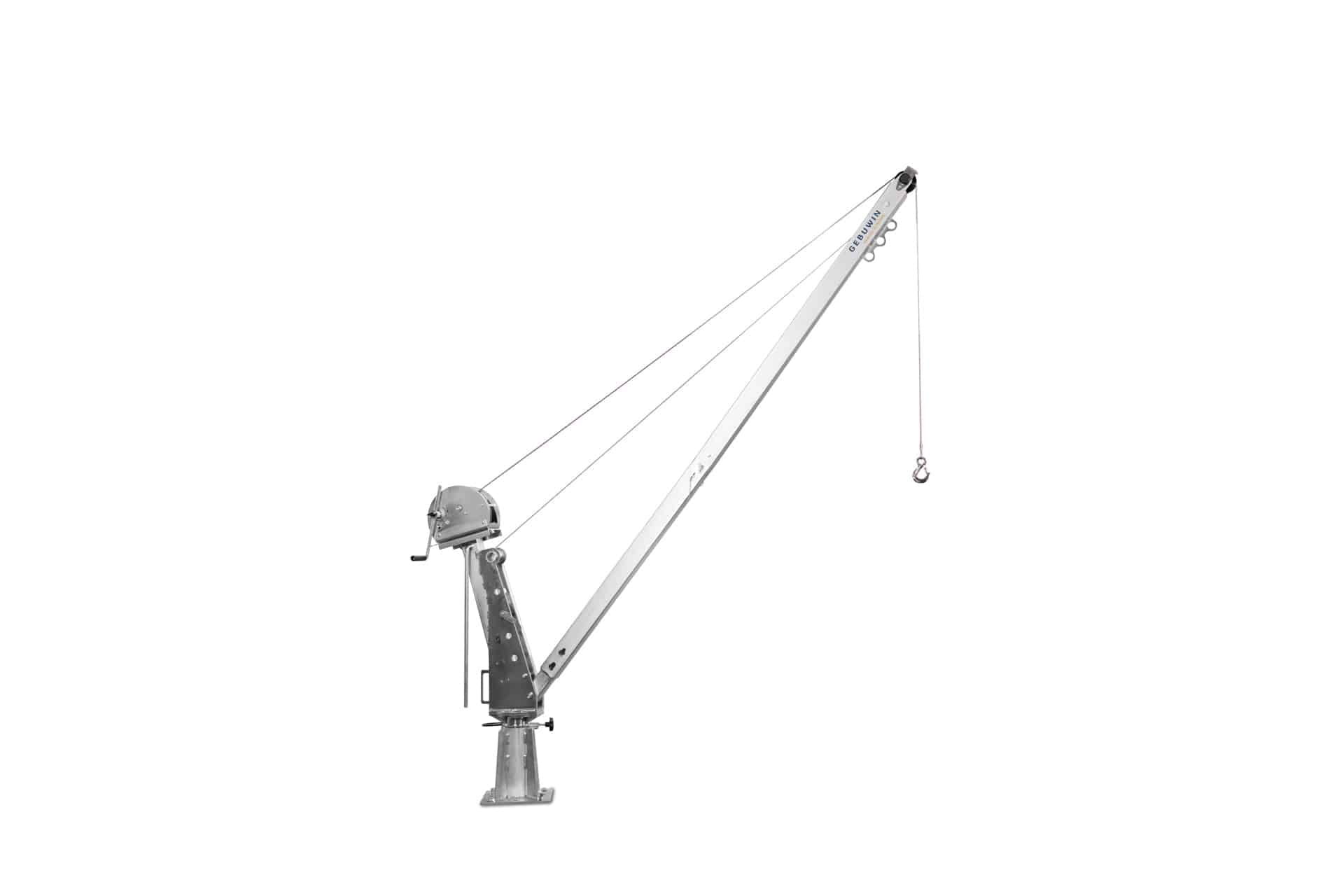

Stainless Steel Davit Crane 750kg
Capacity: up to 750Kg

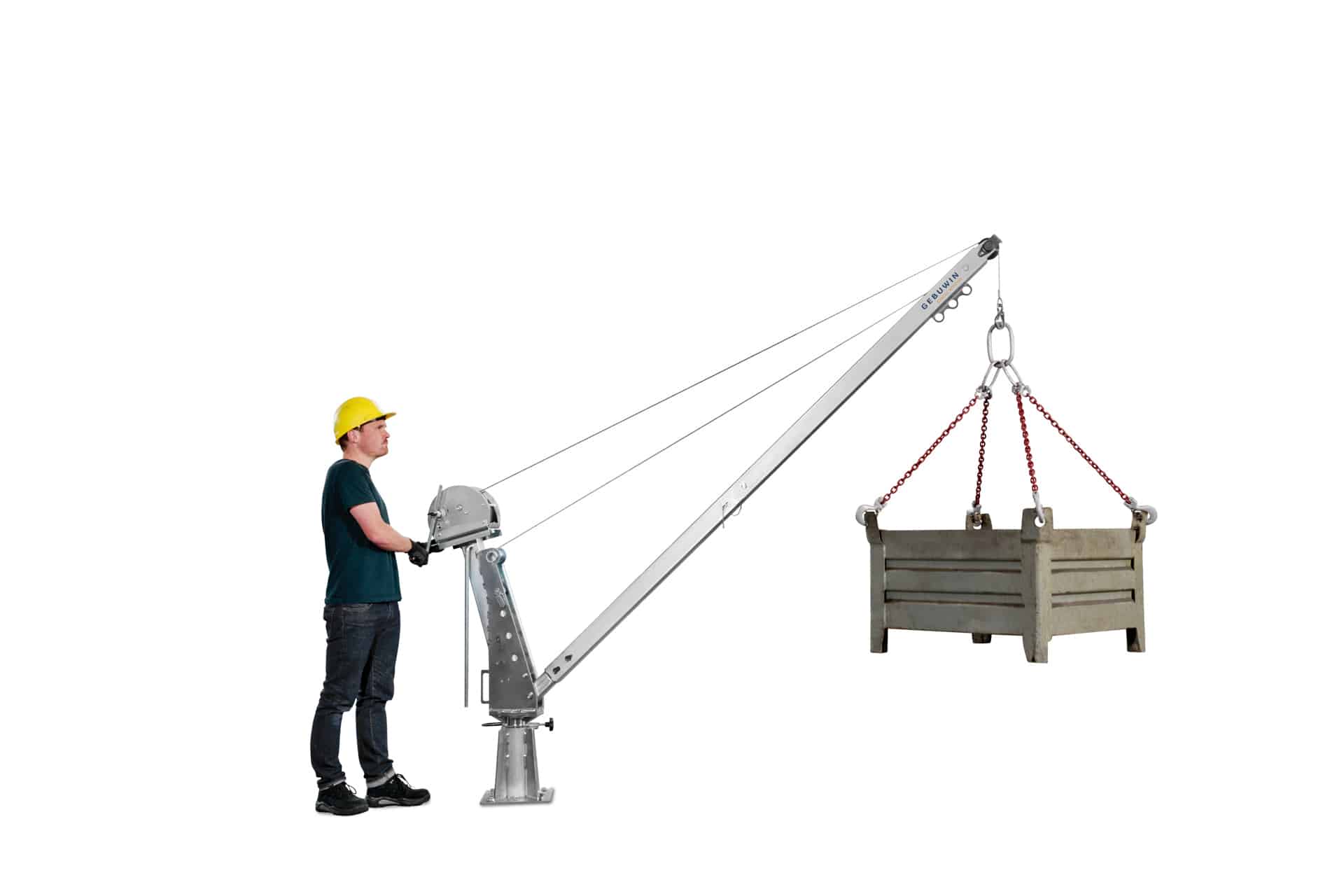

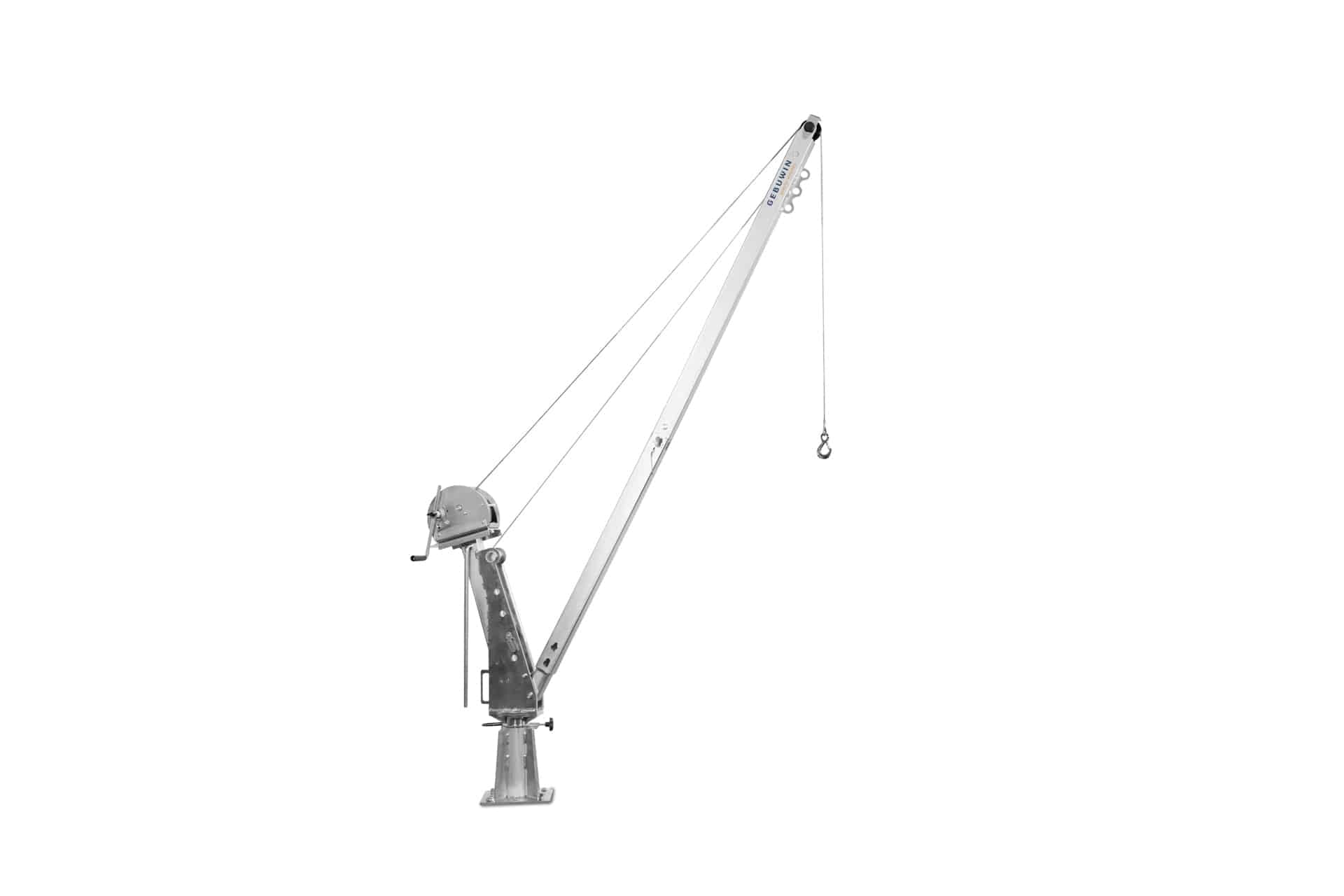

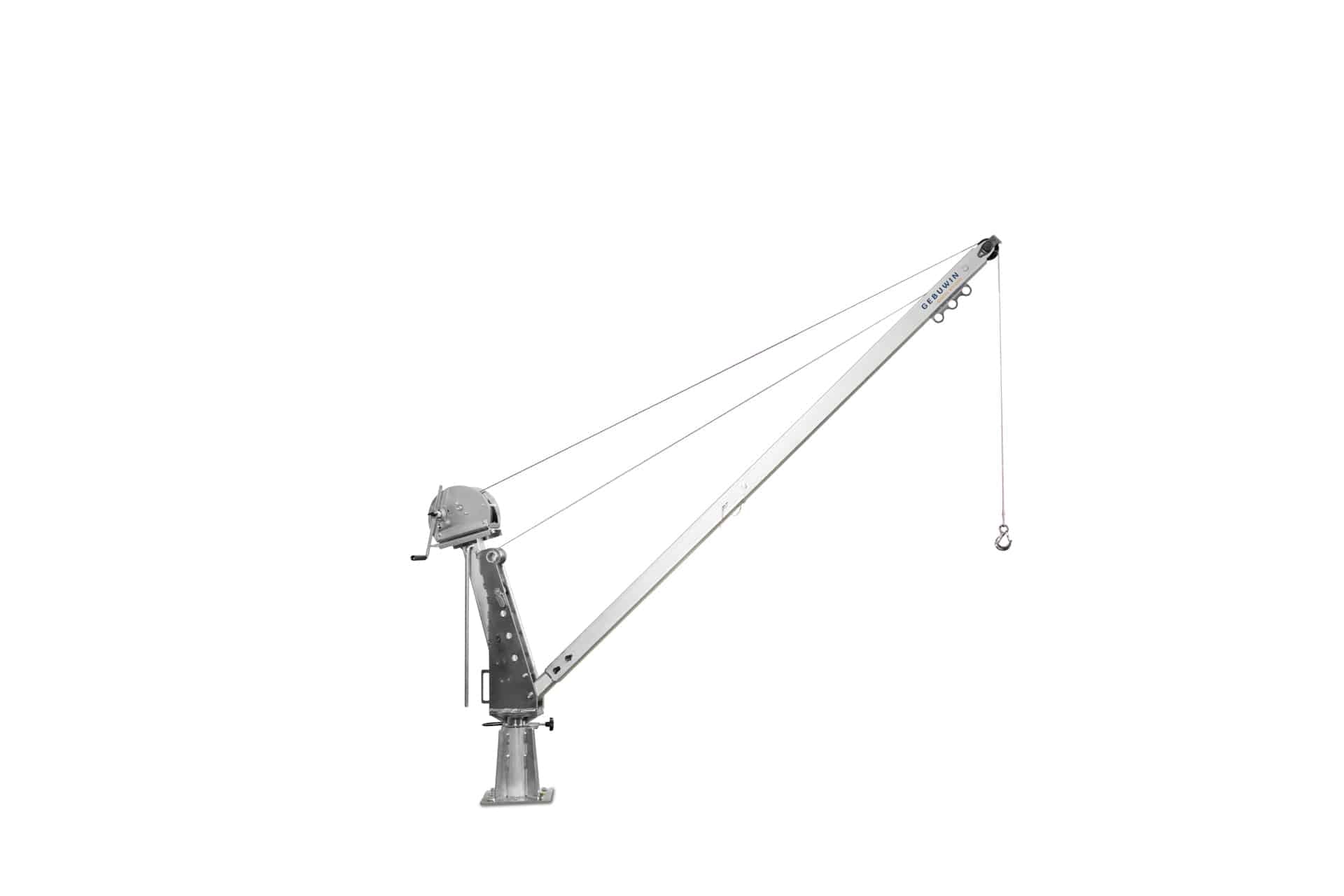

Discover the versatility of our davit crane! With three adjustable positions, this crane effortlessly adapts to your lifting needs. Depending on the position, the lifting capacity varies: up to 750kg at 1 meter, 600kg at 1.5 meters and 500kg at 2 meters.

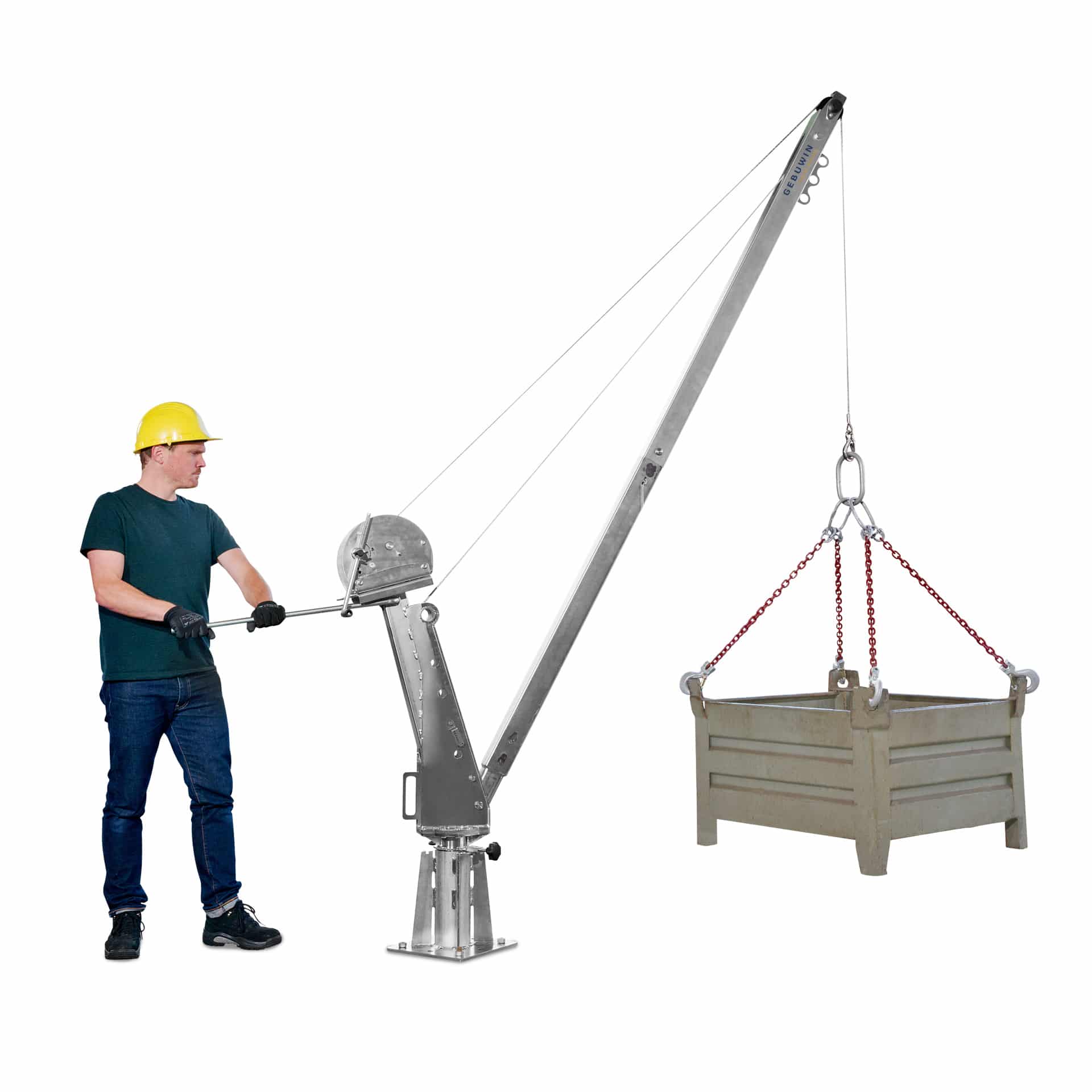

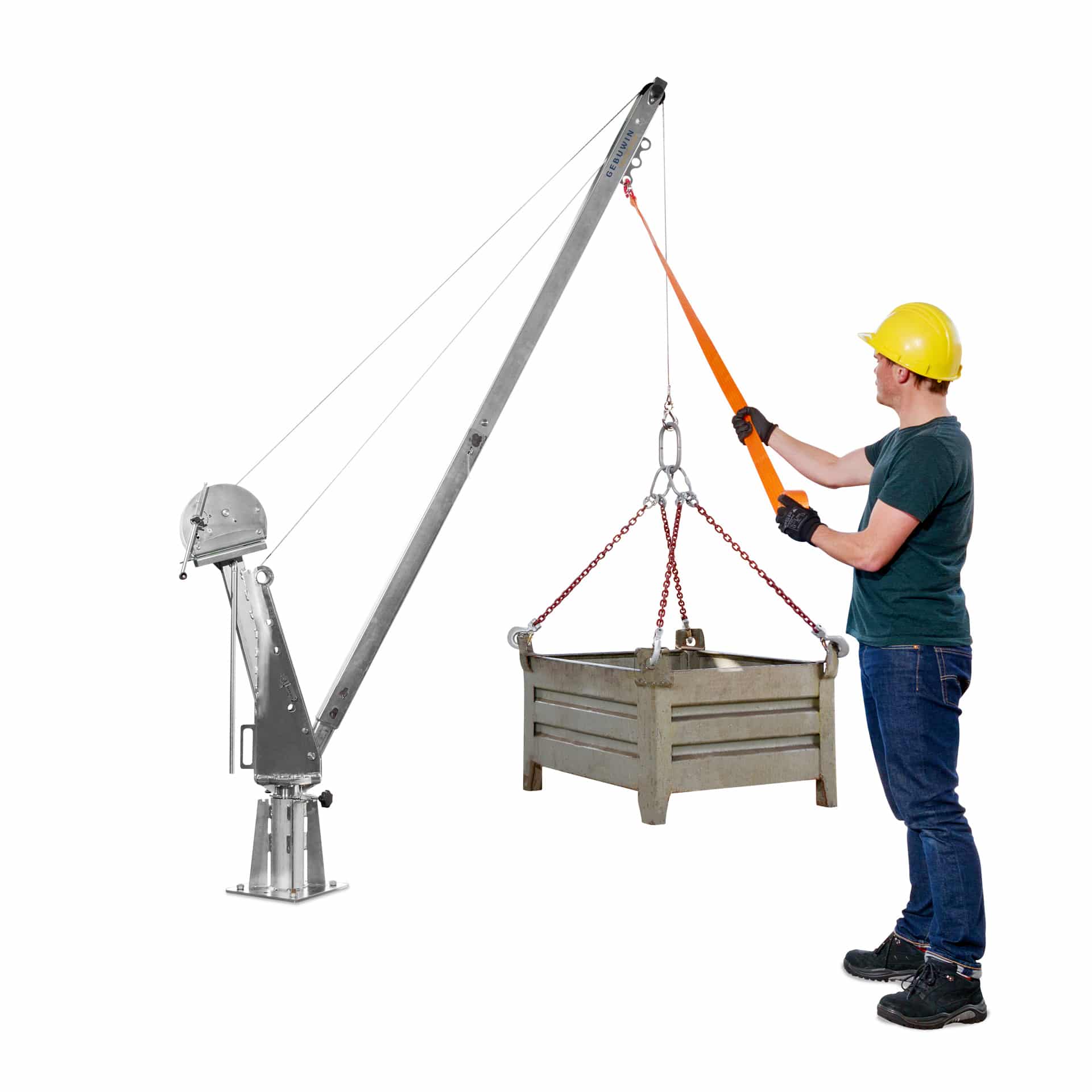

Thanks to the 360 degree rotation function, you can easily reach the desired position, and the crane can be safely locked in a horizontal position for controlled lifting and lowering. The standard galvanized finish ensures durability, while you can attach various winches or even a chain hoist to the davit. Ideal for any project where strength and flexibility come together!

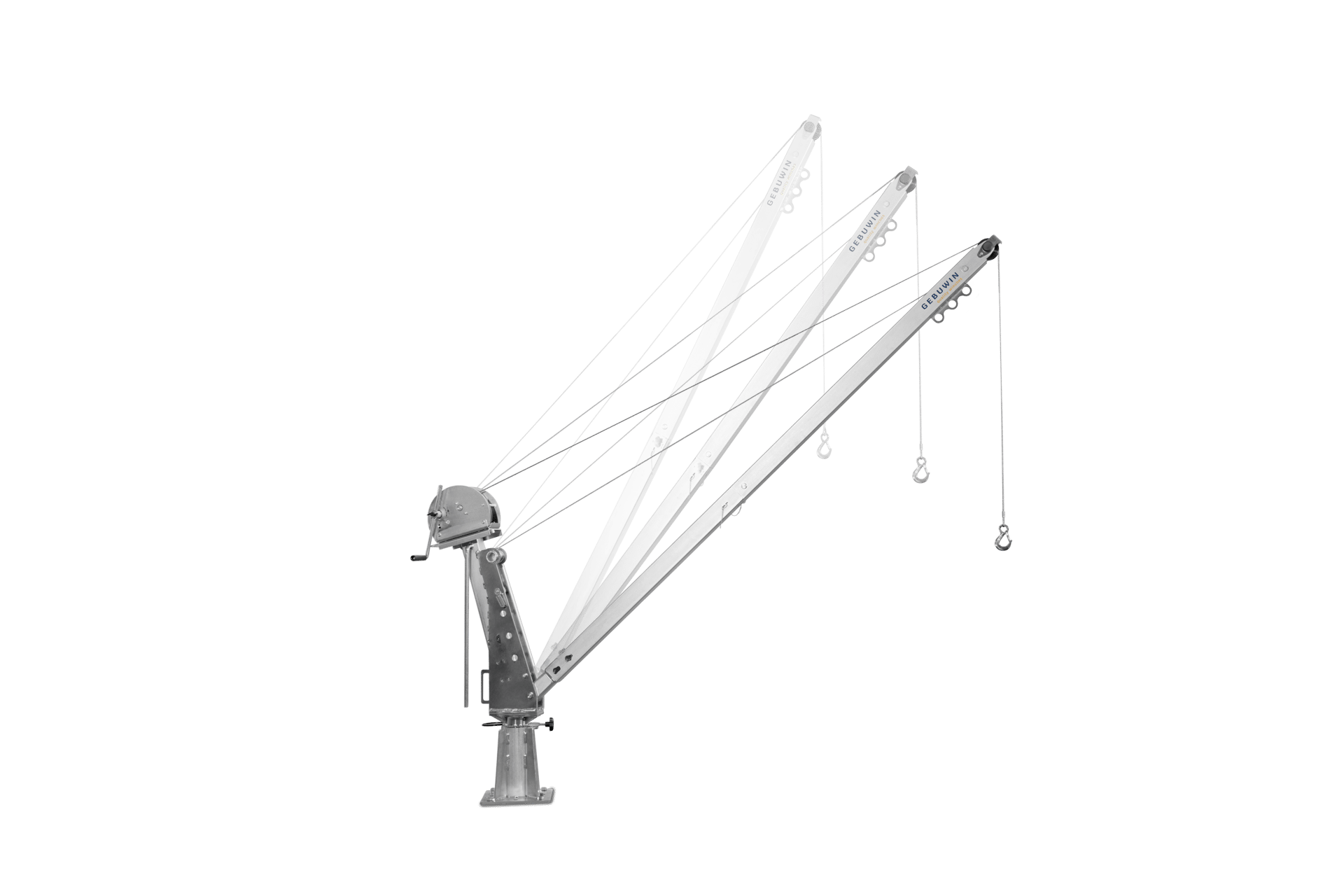

- 3 positions with max 2 meters reach
- up to 750kg lifting capacity in full SST316

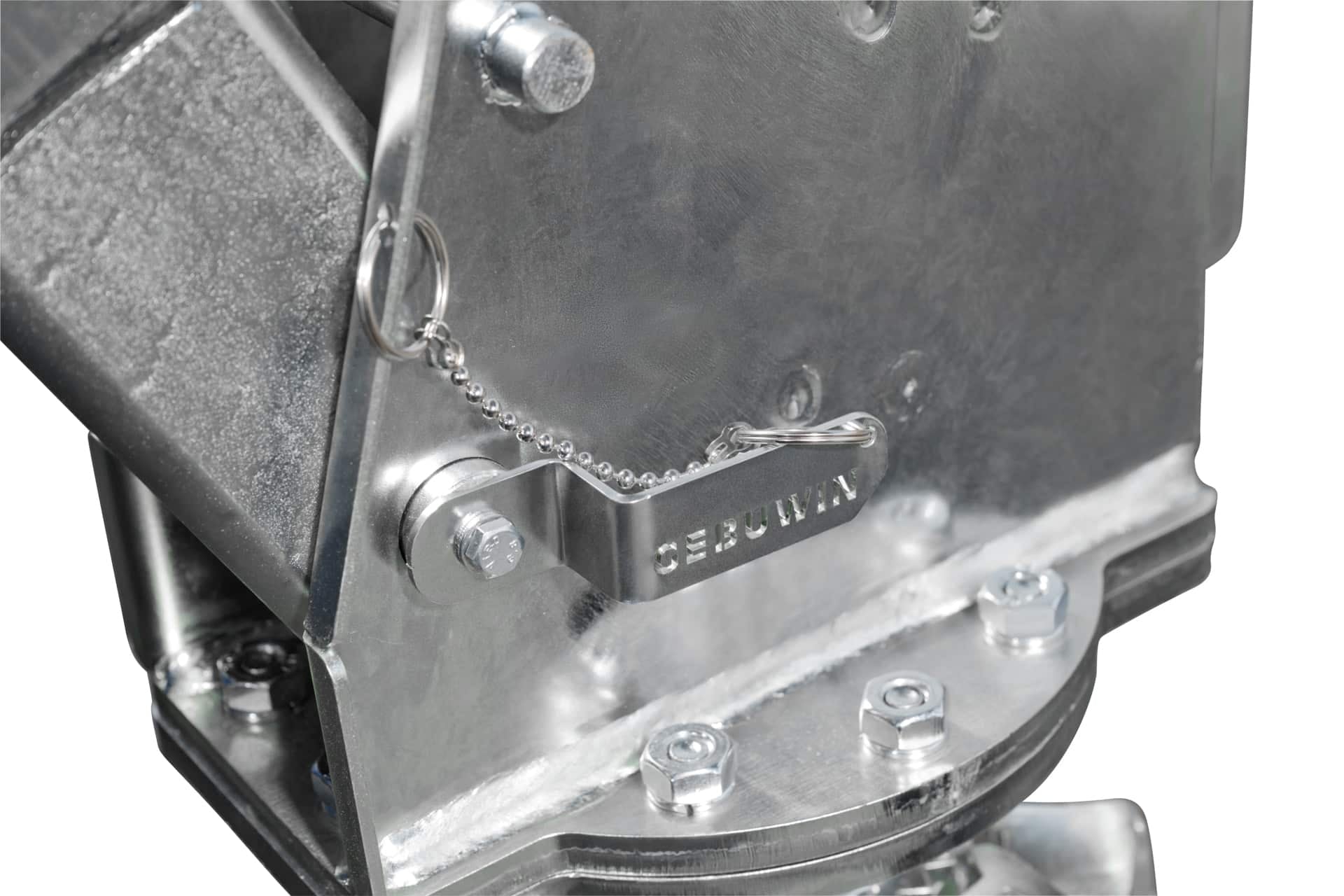

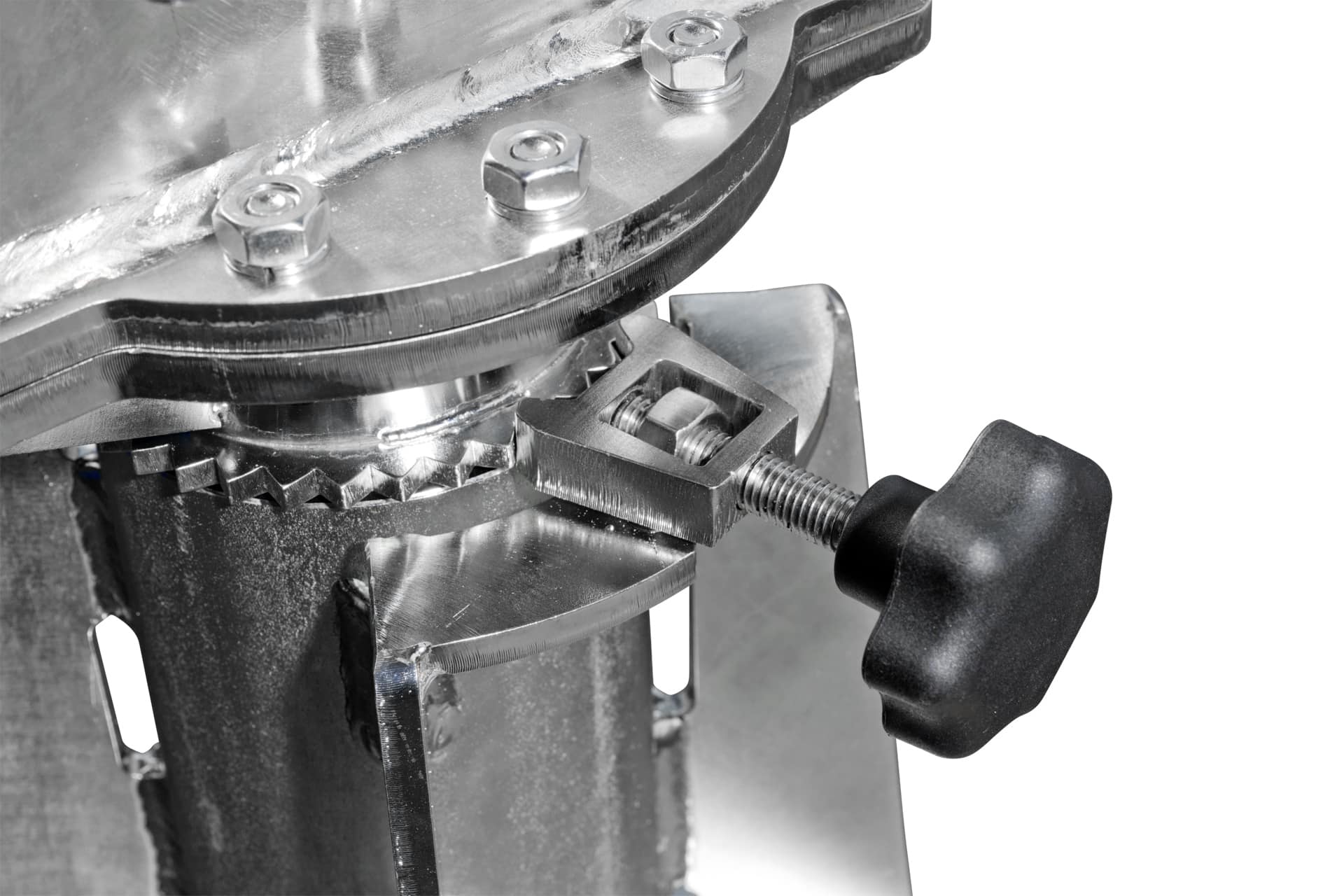

- locking mechanism for controlled operation
| Specification | Value |
|---|---|
| Capacity reach 1 meter (1st layer) | 750 kg (1653 lb) |
| Capacity reach 1,5 meter (1st layer) | 600 kg (1323 lb) |
| Capacity reach 2 meters (1st layer) | 500 kg (1102 lb) |
| Lifting speed | 1,2 m/min, 2,2 m/min (4 ft/min) |
| Rope diameter-Ø | 8 mm (0.31 in) |
| Rope storage top layer | 33 meter (108 ft) |
| Weight excl. winch | 49 kg (108 lb) |
| Weight TL1500 or CW700 | 27 kg or 14 kg (60 lb) |
| Article number | 77002011 |
| Type name | SD750 SST |
Price on application.
If the options here don't meet your requirements, we can customise your order.
Please give us a call on (021) 4885 311 or complete the quote request form.
