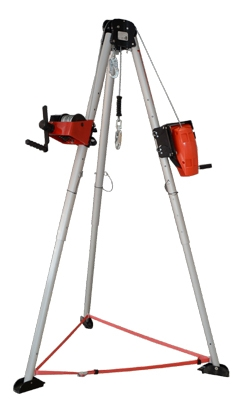

Checkmate TR3 Tripod

Checkmate TR3 Tripod

by Checkmate Safety
SKU

Capacity: up to up to 150Kg Personnel, 300Kg Goods

Price on application.

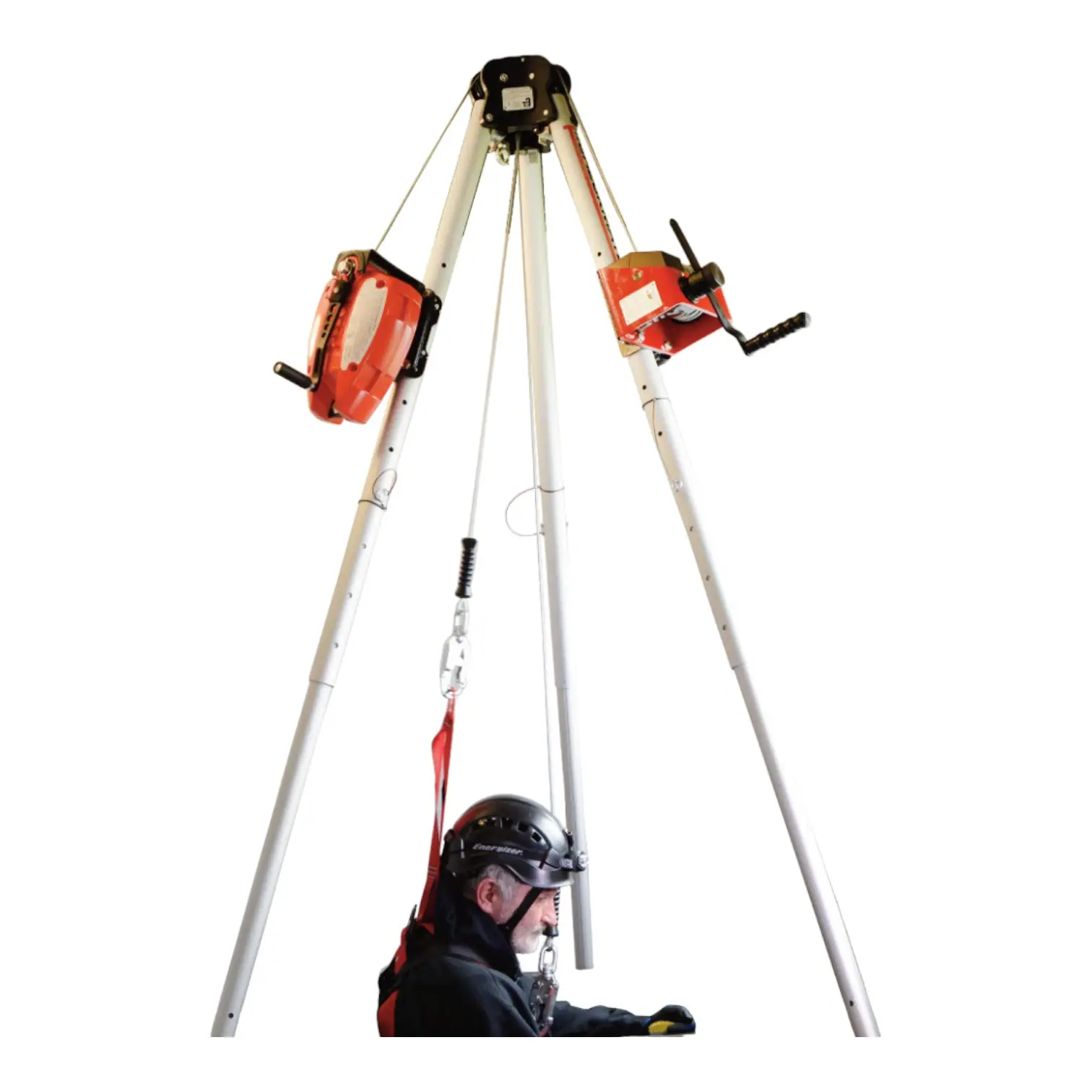

Ultra lightweight, tough, and with a durable alloy construction, the TR3 tripod is primarily to be used as Personal Protective Equipment, to provide access or fall protection in confined space environments. TR3 also provides anchorage for one winch operator/supervisor standing next to the tripod. It may alternatively (with different equipment) be used for goods carrying, with prior approval from Checkmate.

An optional protective storage/carry bag can be supplied.

Price on application.

If the options here don't meet your requirements, we can customise your order.

Please give us a call on (021) 4885 311 or complete the quote request form.

Features

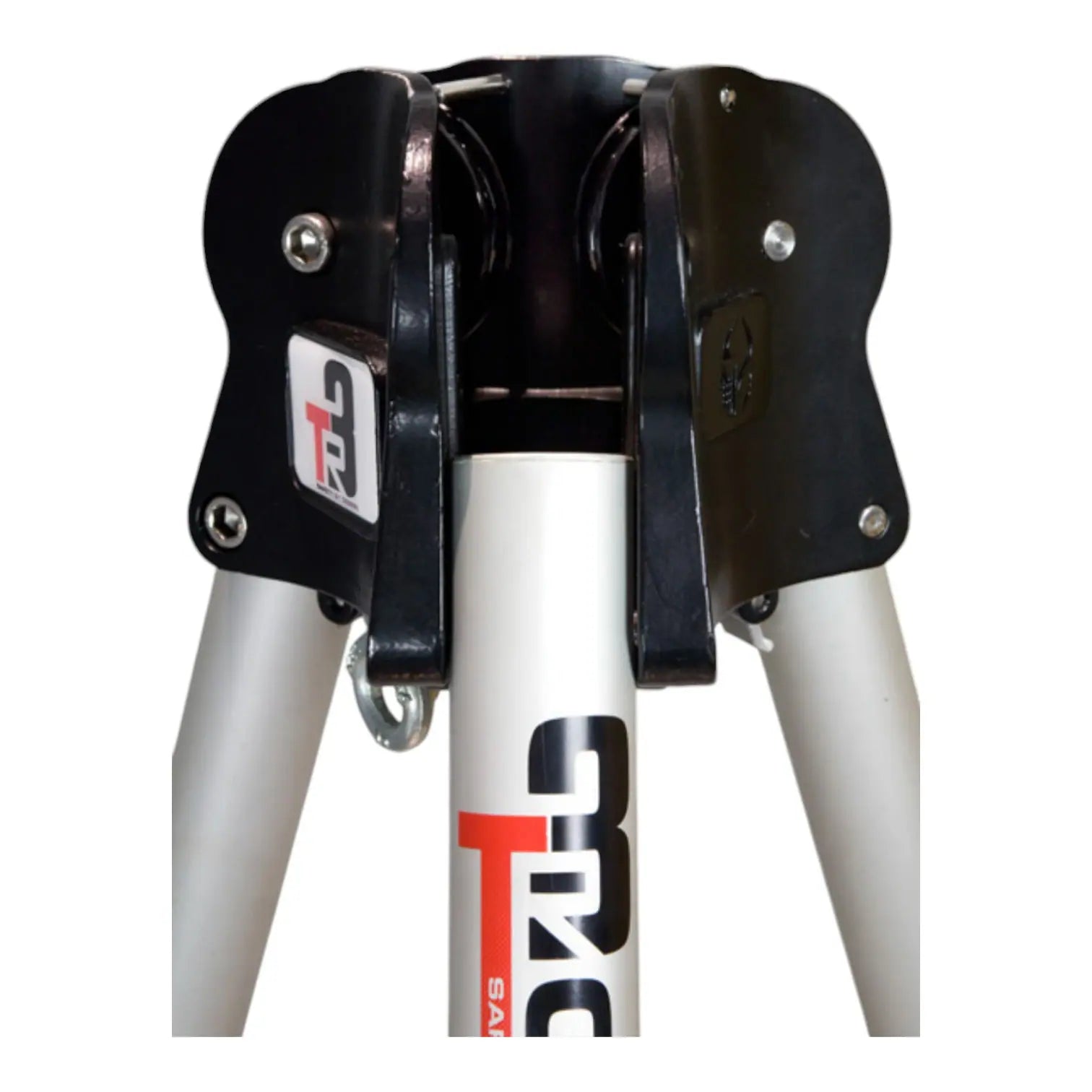

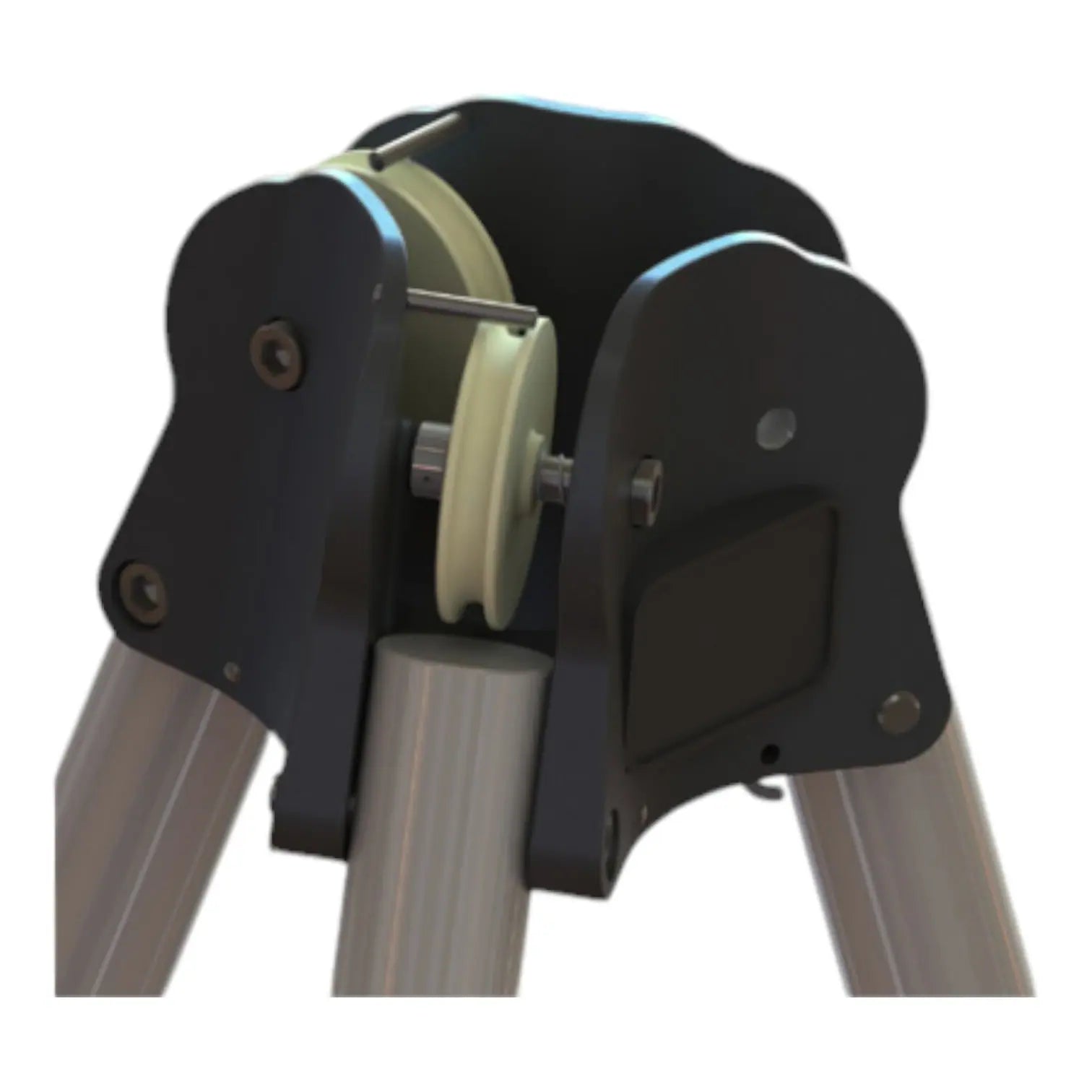

  • Crown Detail
    As standard, the TR3 comes with 2 x spring loaded pulleys, and 1 x eyebolt. Up to 3 of each can be fitted on request.

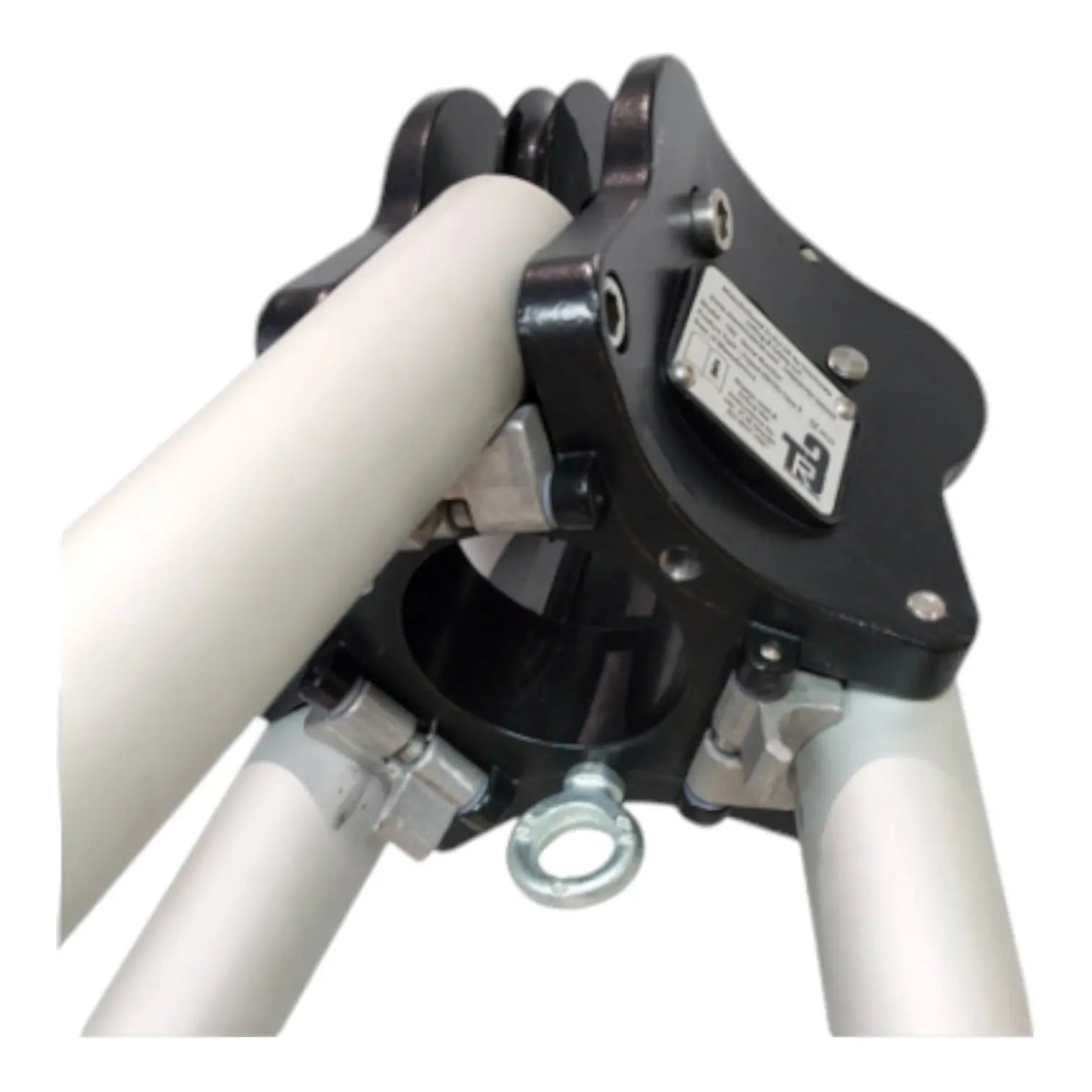

  • Auto Locking Leg
    Legs are locked in the open position automatically during use and easily disengaged for folding.

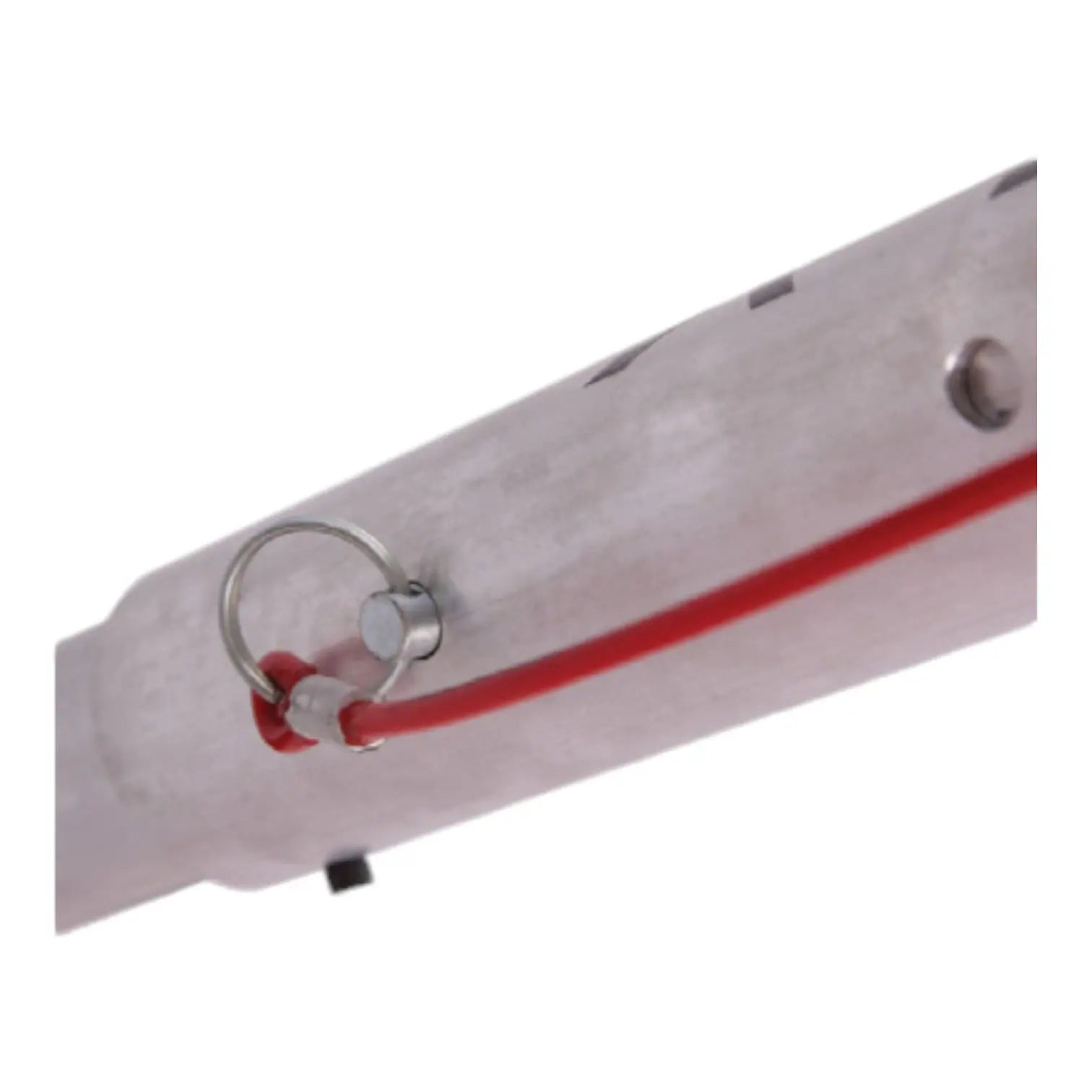

  • Captive Pins
    Legs are height adjustable using detent pins which are secured to tripod using PVC coated keeper wires.

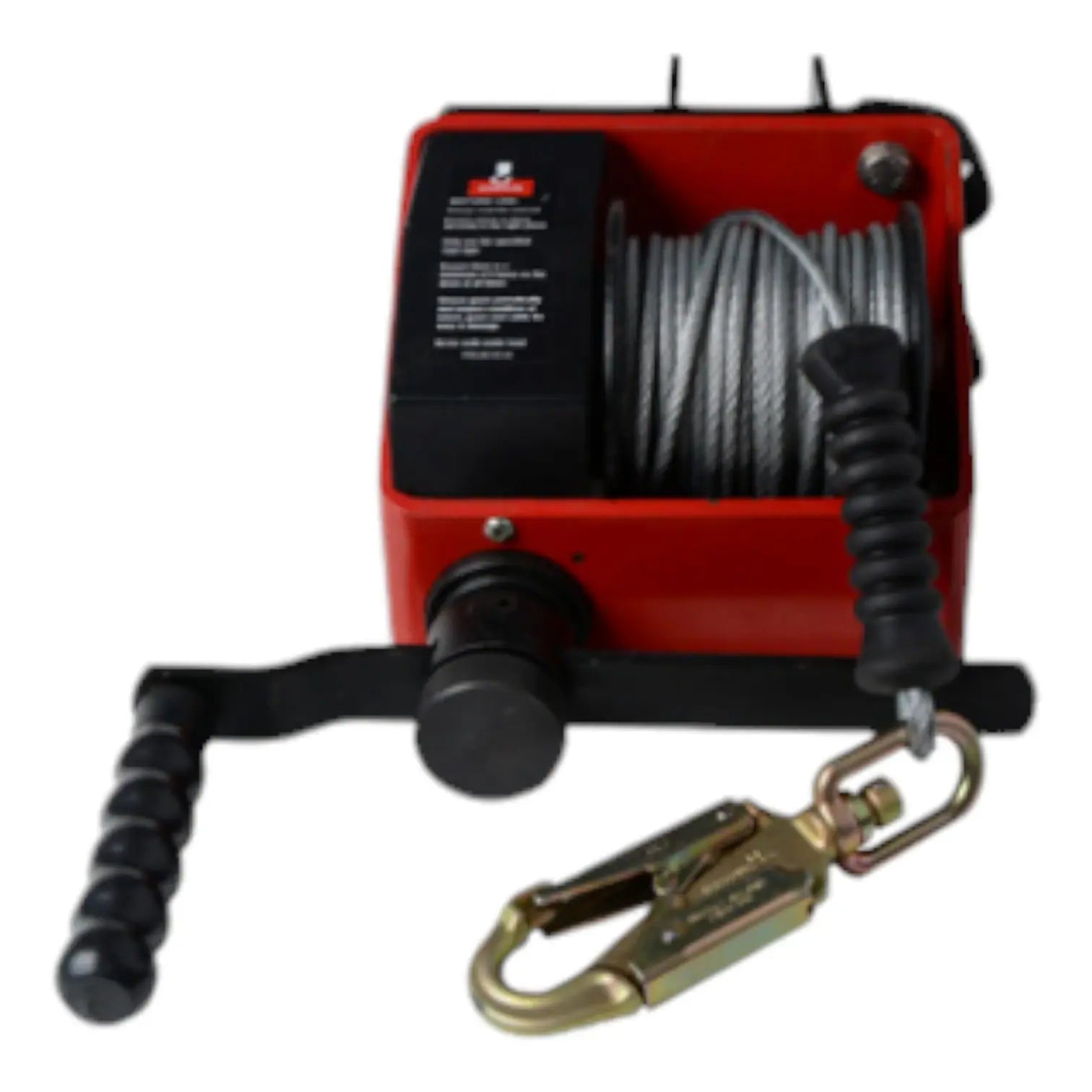

  • WG-01 Hand Winch.
    The TR3 tripod can be fitted with a 20m worm-gear winch, in conjuction with FABXR, for suspended work.

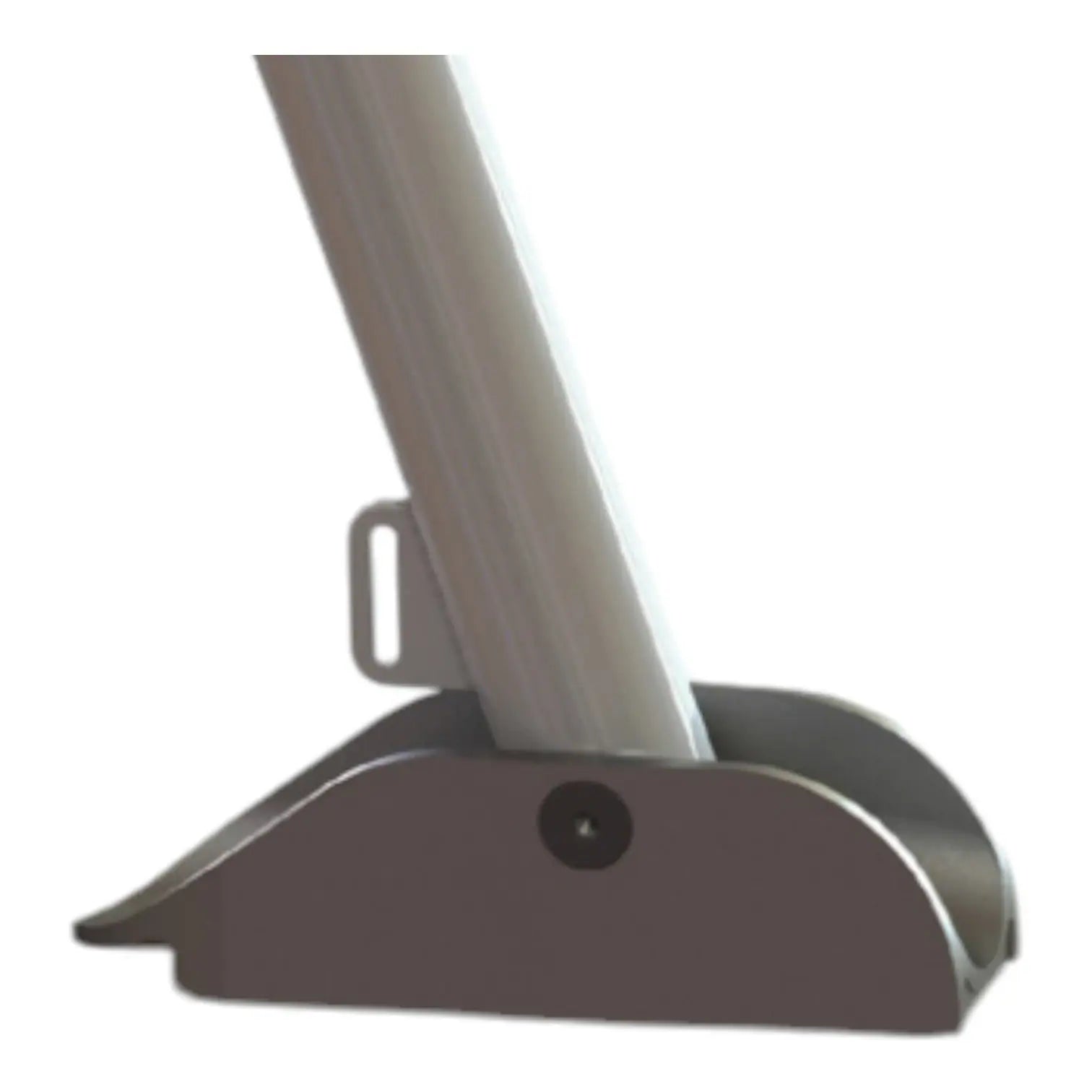

  • Robust Pivoting Spiked Feet
    Tripod fitted with pivoting feet with hot bonded rubber soles for soft or hard surfaces. Includes slot for anti-splay webbing strap.

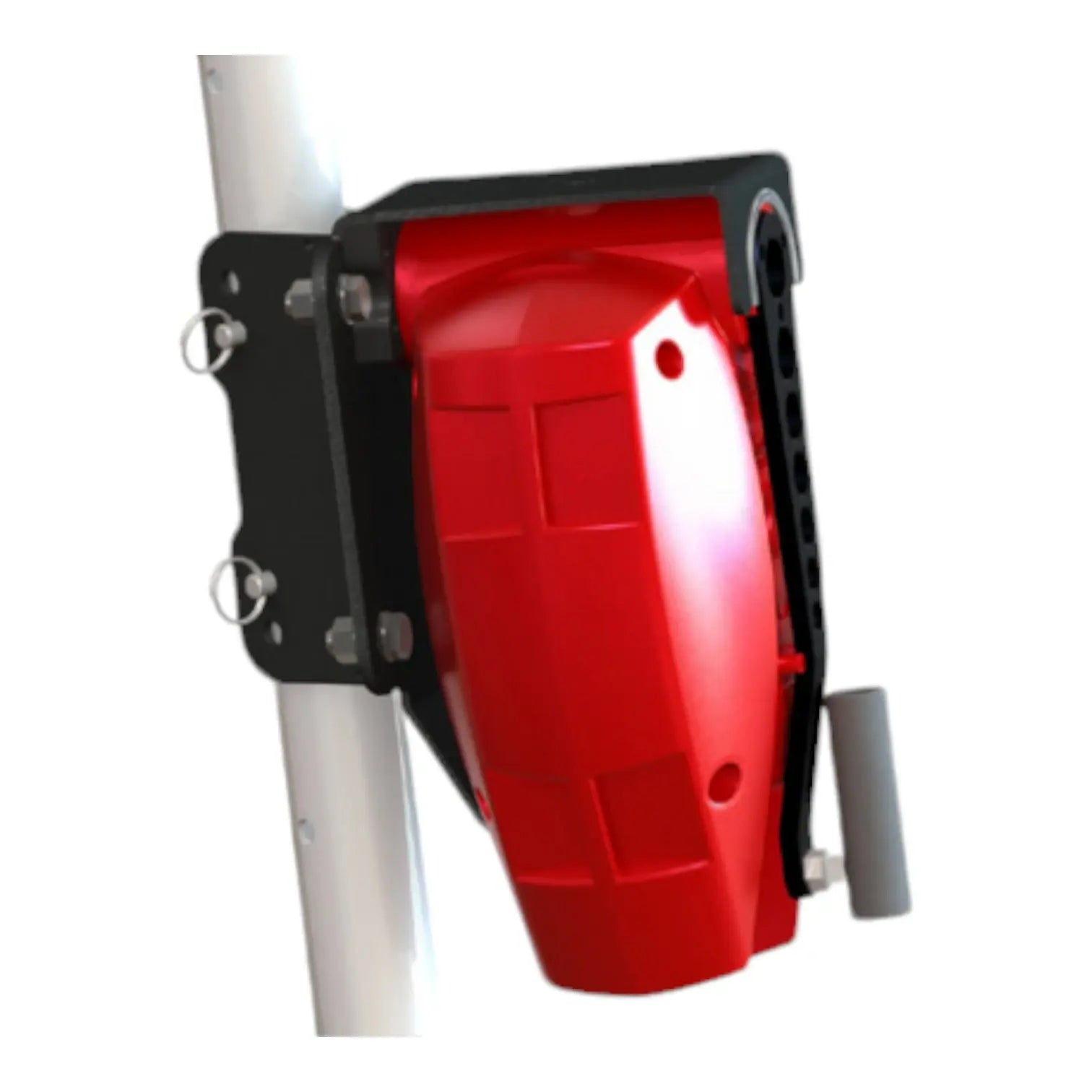

  • FABXR and FABXR-DB
    TR3 can be fitted with FABXR/ FABXLR and FABXR-DB/FABXLR-DB for emergency rescue with the user descending via a ladder.
