EasyLoad 250 Van Crane
SKU
Capacity: up to 250Kg

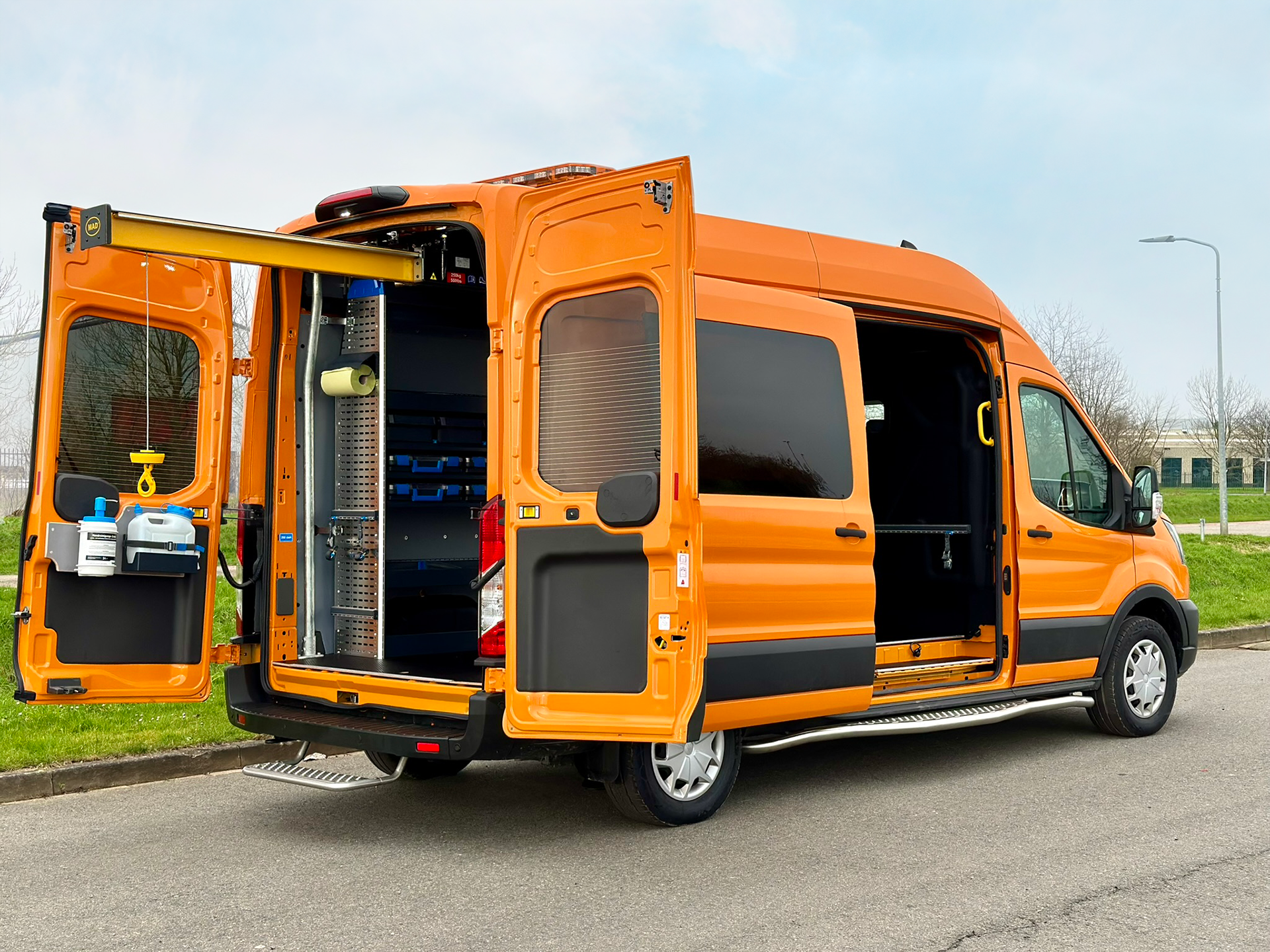

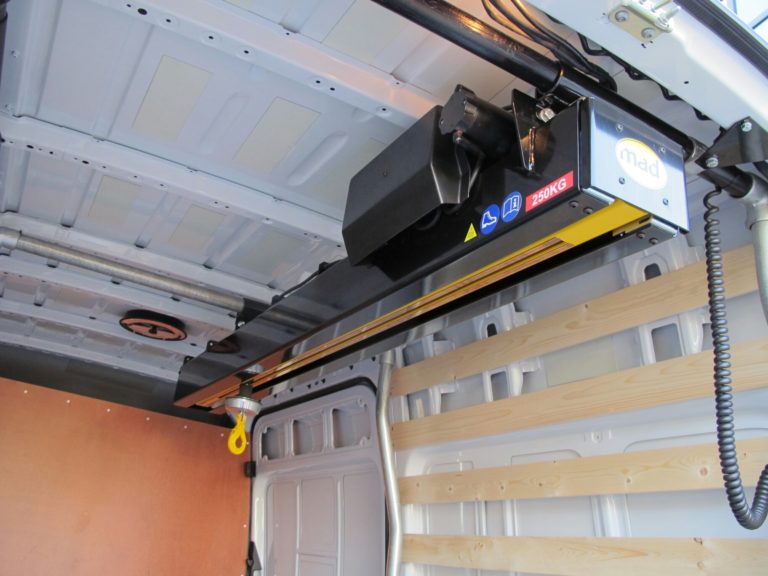

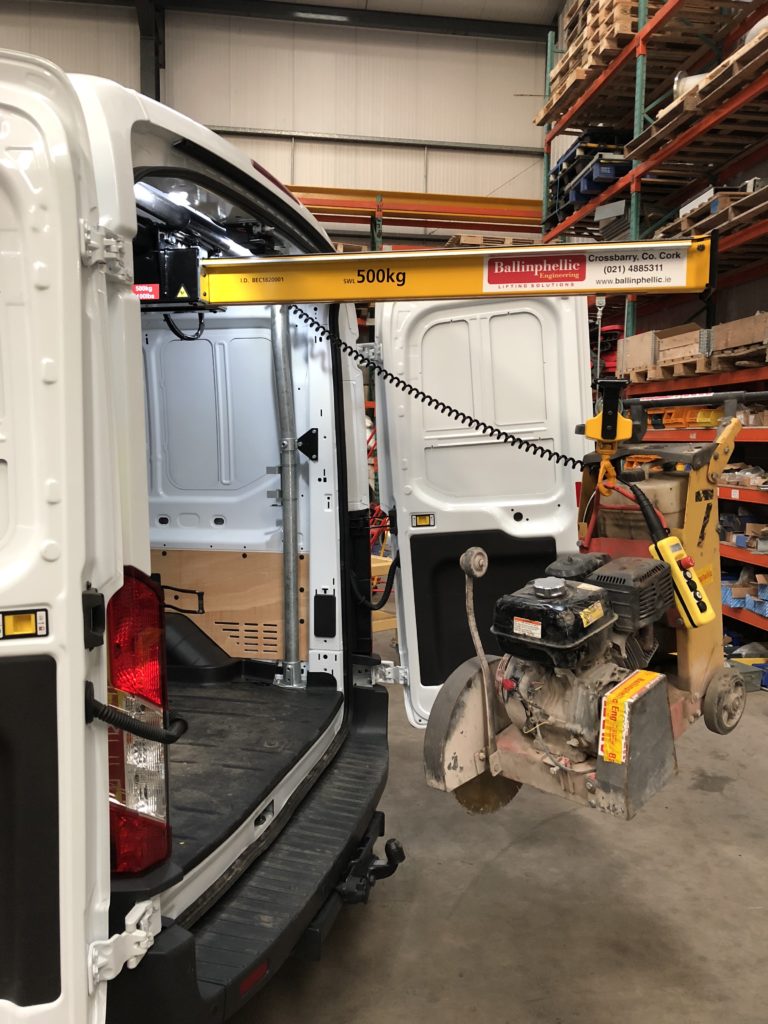

The EasyLoad Van Crane system is an onboard loading system for light commercial vehicles. The crane consists of a high quality, compact winch unit with extendable boom. The stable lightweight construction guarantees absolute reliability and is maintenance-free.
Product Highlights

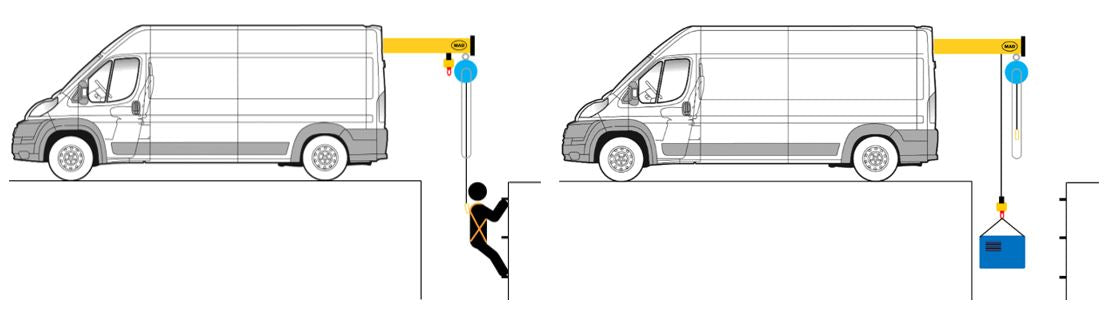

- Allows for safe unloading of items even when loading aids are not available
- Electrically operated winch controlled via a robust remote control
- Easy and simple installation
- Various load capacities and hoisting heights available
- Runs off the vehicles own electrical system
- Can be easily uninstalled and moved when the vehicle is replaced.
- Sub-frames are available for most popular light commercial vehicles with additional fitting kits available for electric vans.
- Installation service available
- Warranty and after sales support
Model Speciifcations:
| Model | EasyLift 250 |
| Max lifting capacity: | 250kg |
| Length when retracted: | 110 cm and 130 cm |
| Maxload height: | 2.5 metres (less the interior height) |
| Dead Weight | 85kg |
| Winch specification: | 12V 100A |
| Winch operation: | Electric |
| Slide system: | Manual |
| Lifting speed: | 10 cm per second |
| Safety: | EN-14492-2 |
This product can lift a maximum of: 250Kg
If you require a different maximum lift capacity, please select from the options below:
Build your Bundle
EasyLoad 250 Winch Unit
EasyLoad 250 Frames and Crossbeam
EasyLoad 250 eVan Fitting Kit
Bundle total:
If the options here don't meet your requirements, we can customise your order.
Please give us a call on (021) 4885 311 or complete the quote request form.
