Forklift Beam Traverse BT
by Bauer
SKU 4430-35-0000-3000
Capacity: up to 5000 kg
Shipping included to ROI addresses.
€2,237.00 exc. VAT
€2,751.51 inc. VAT
€2,751.51 inc. VAT

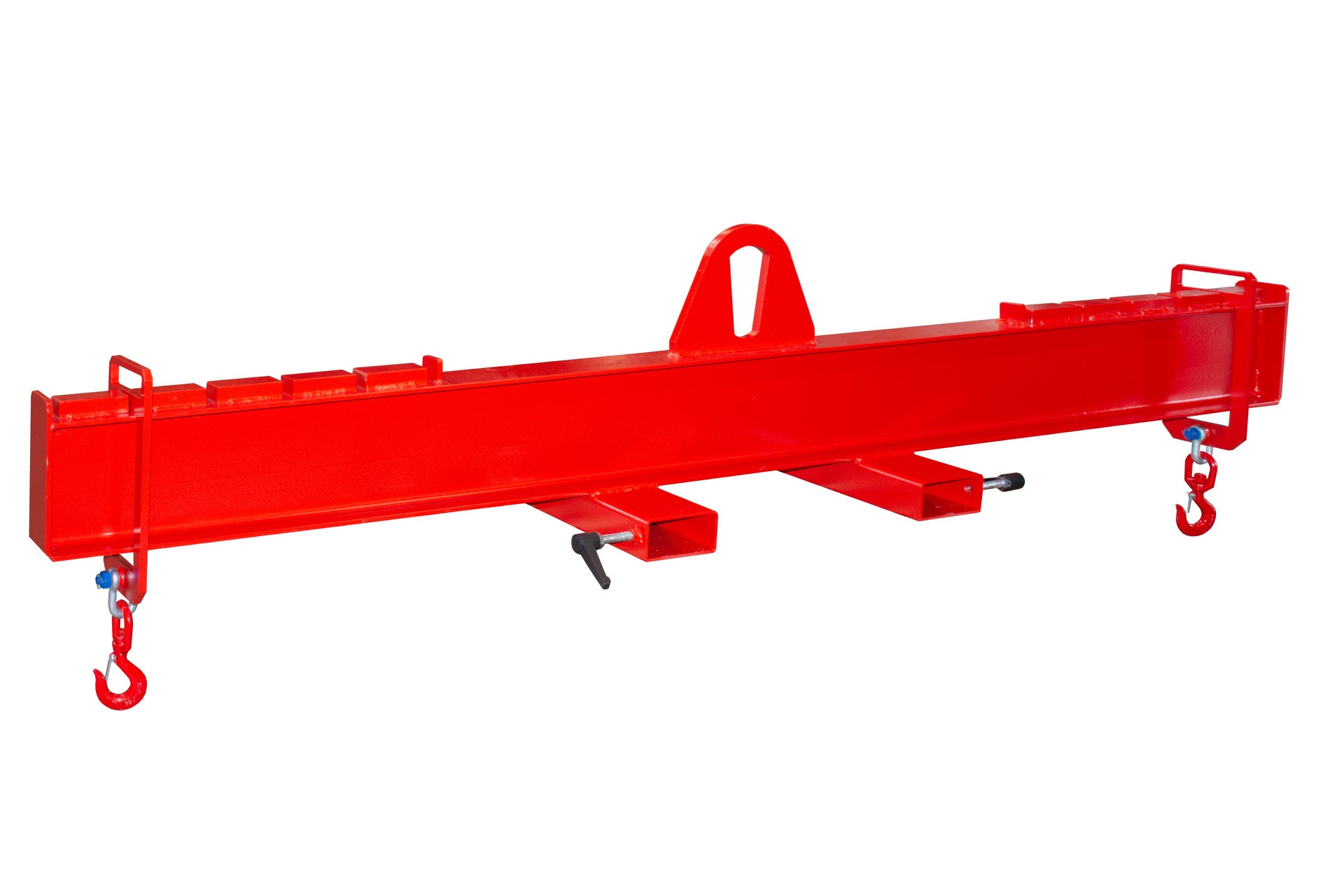

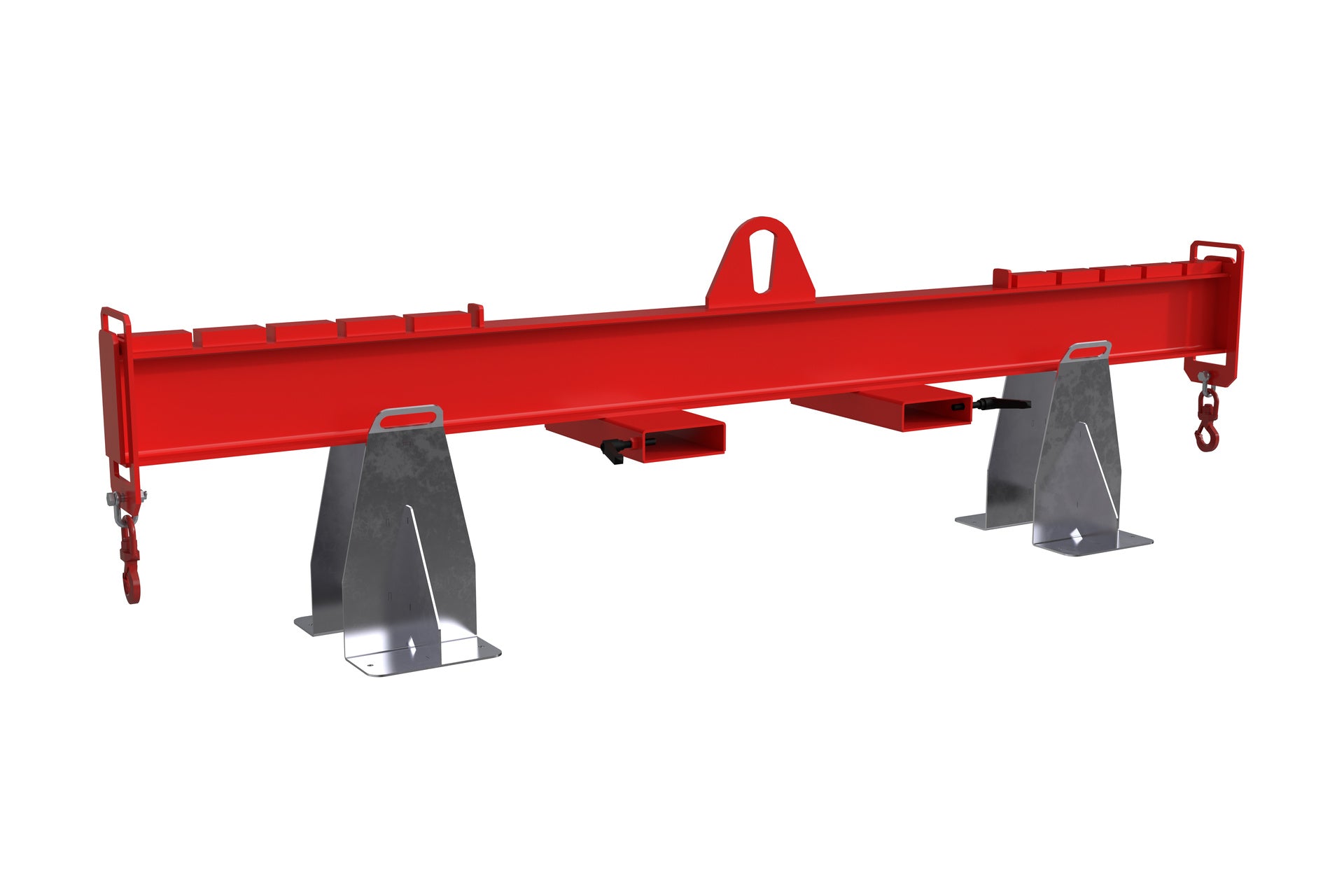

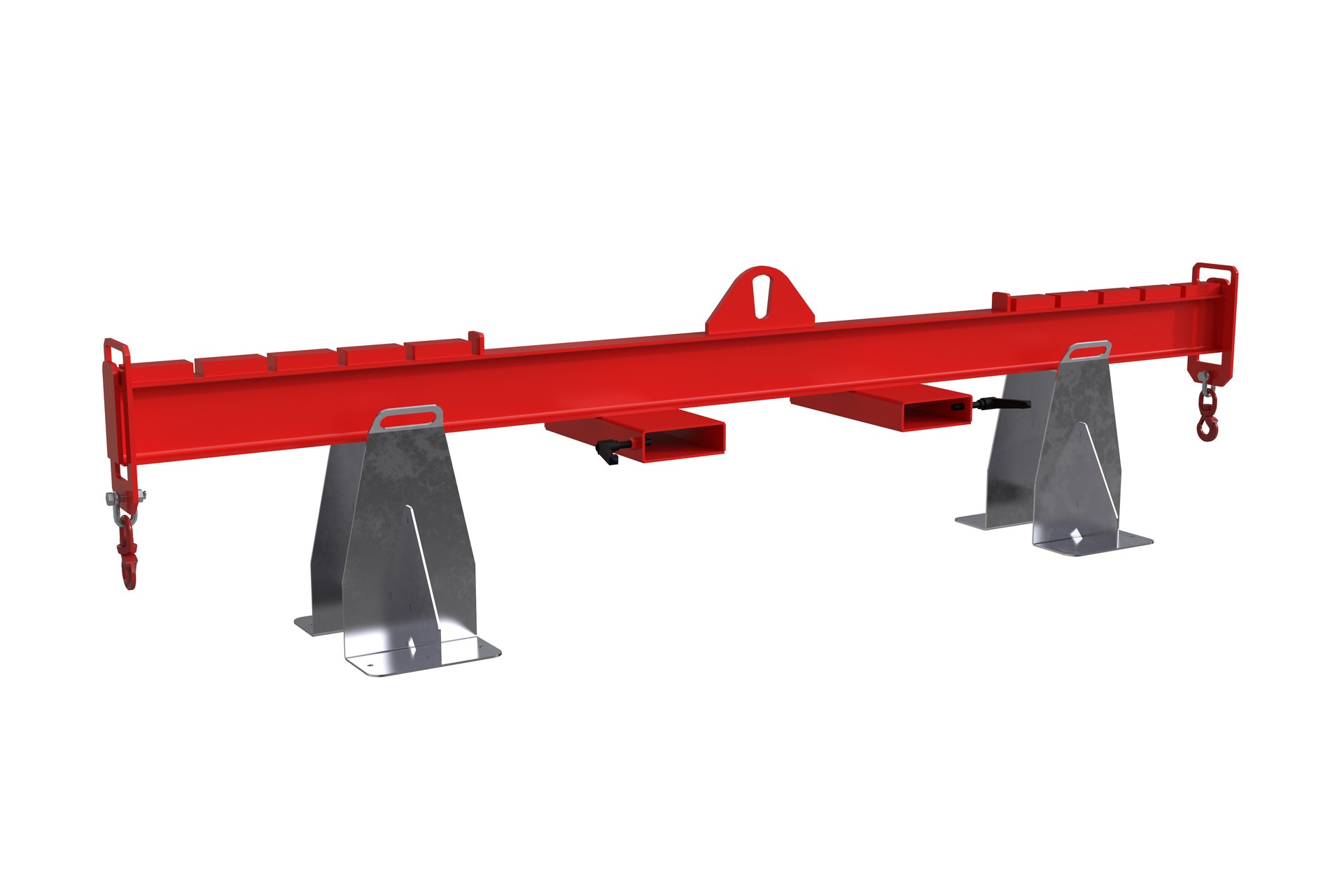

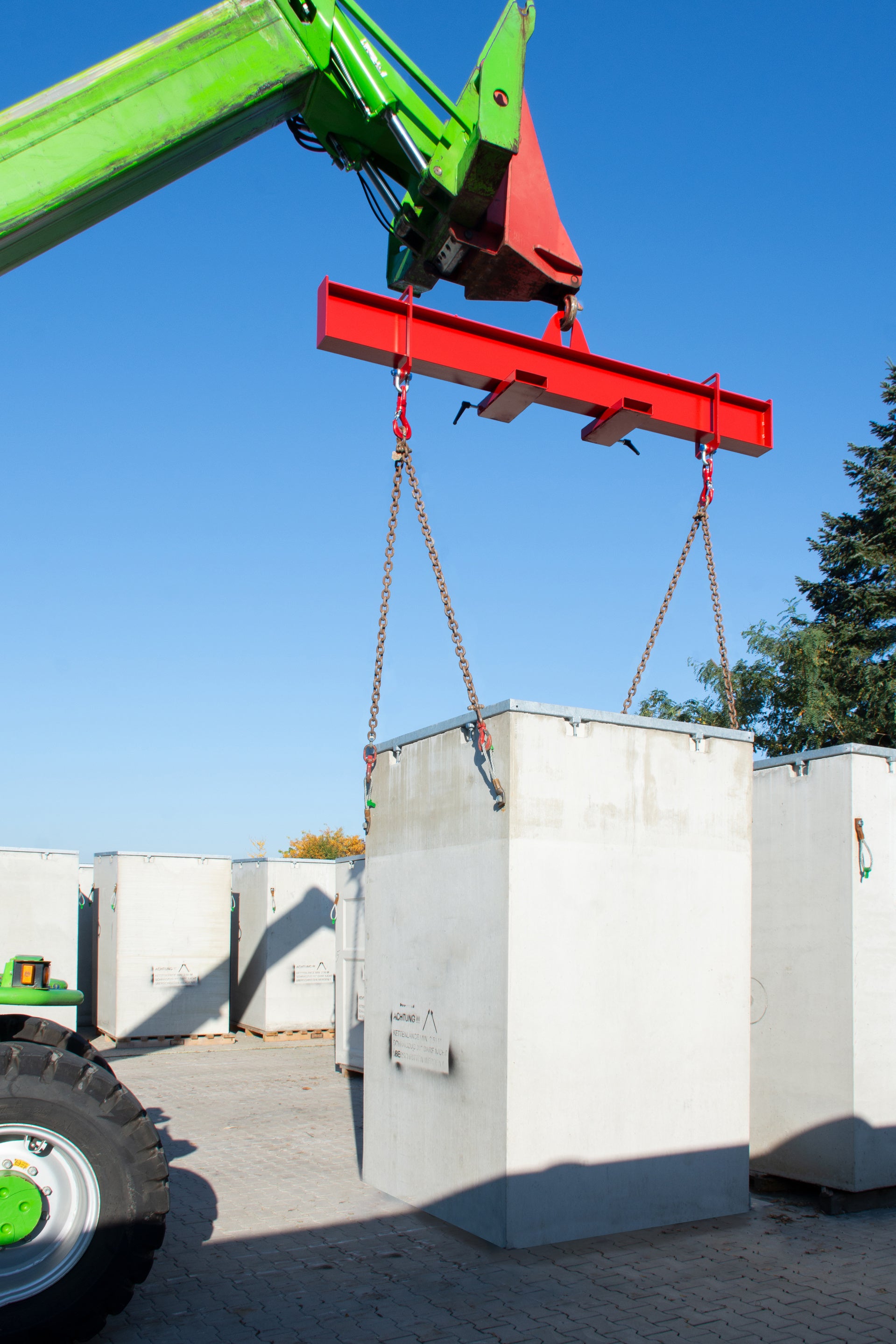

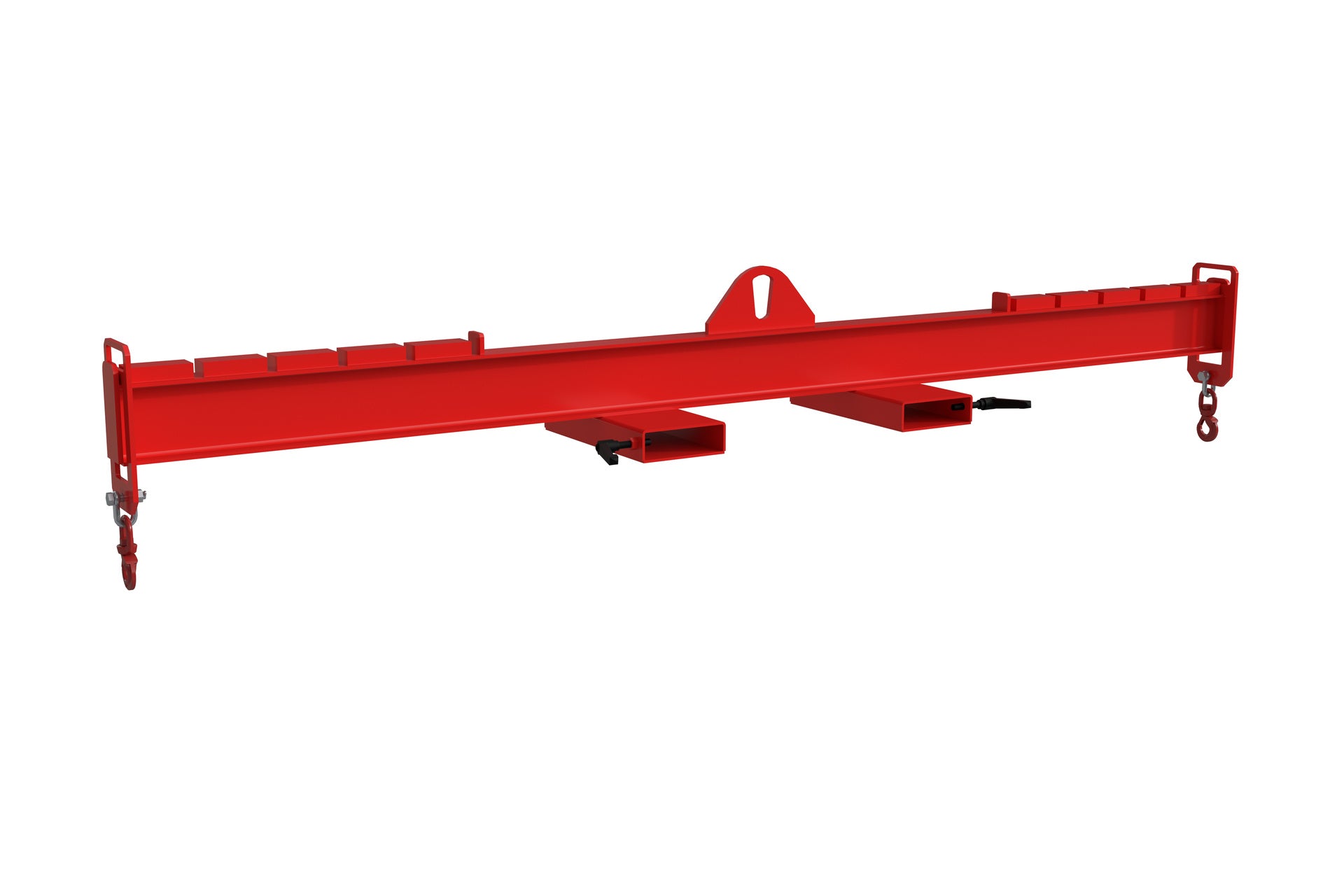

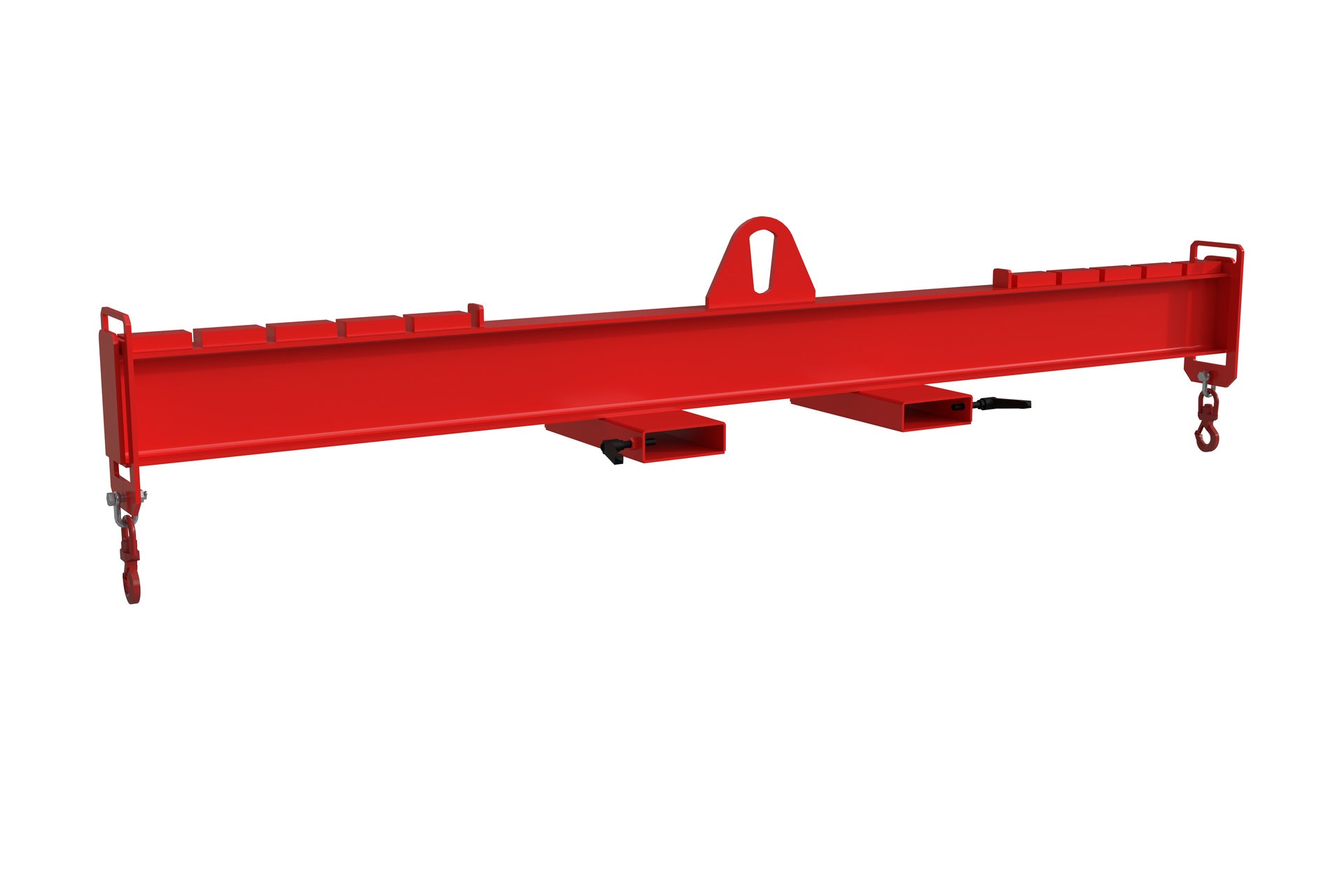

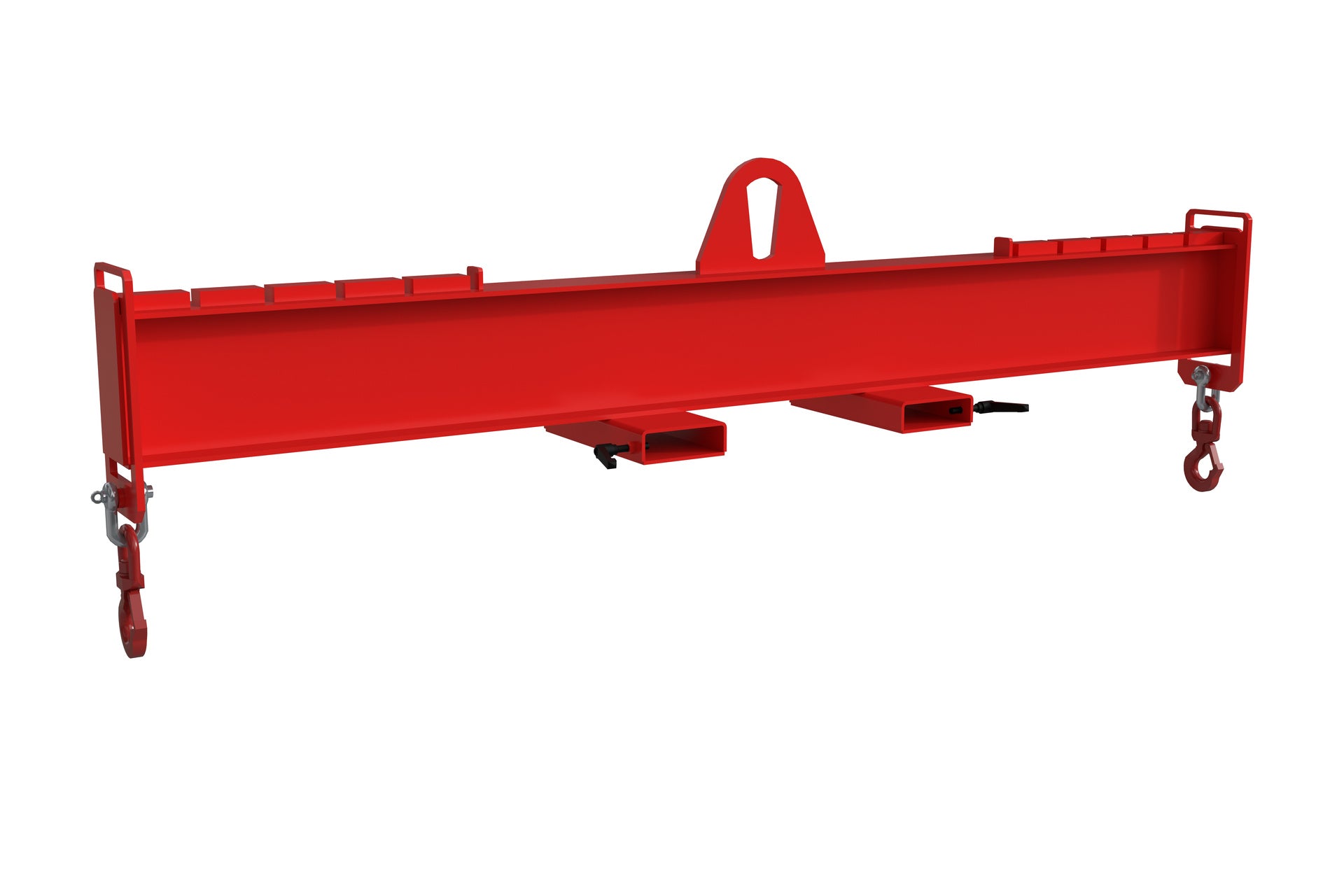

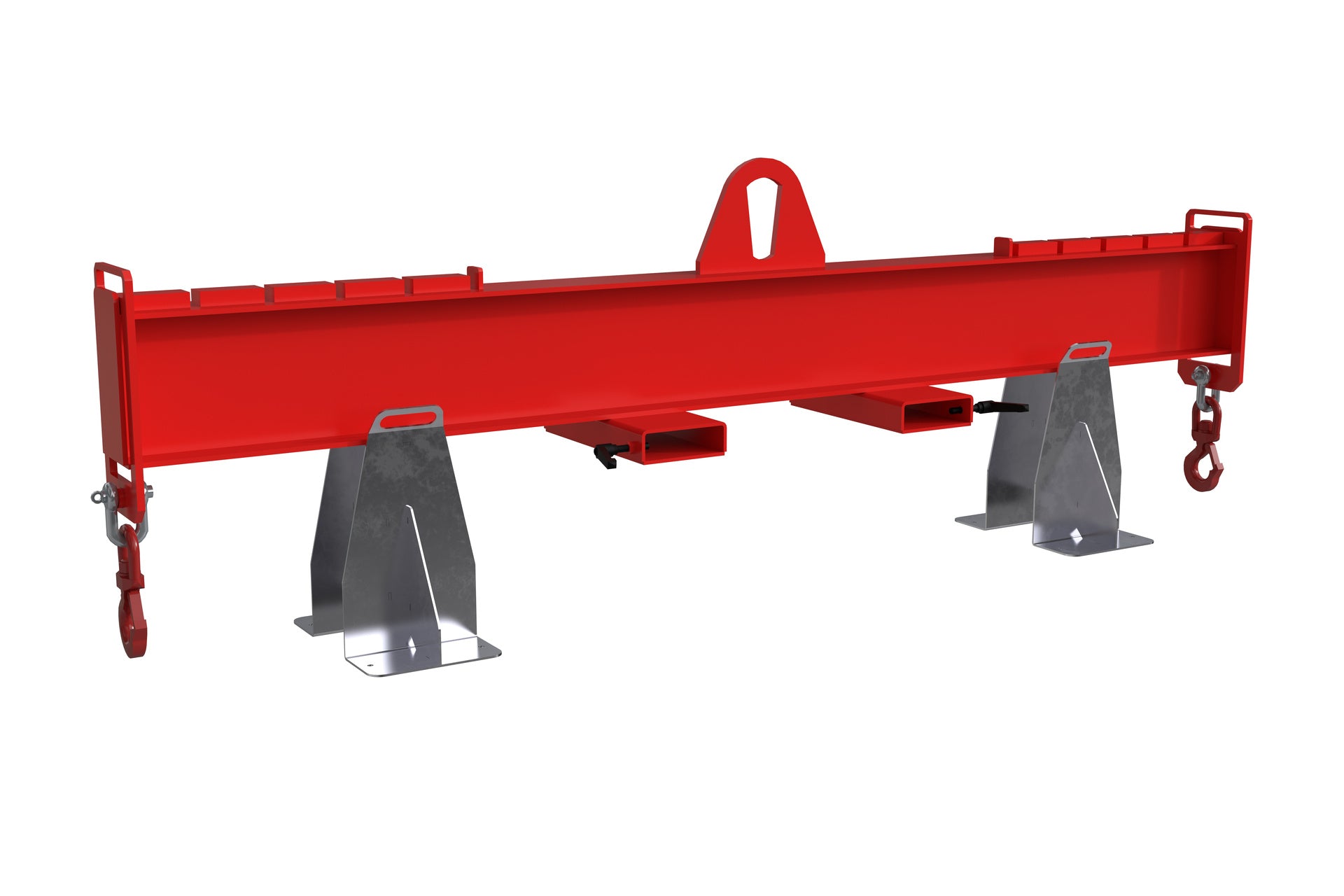

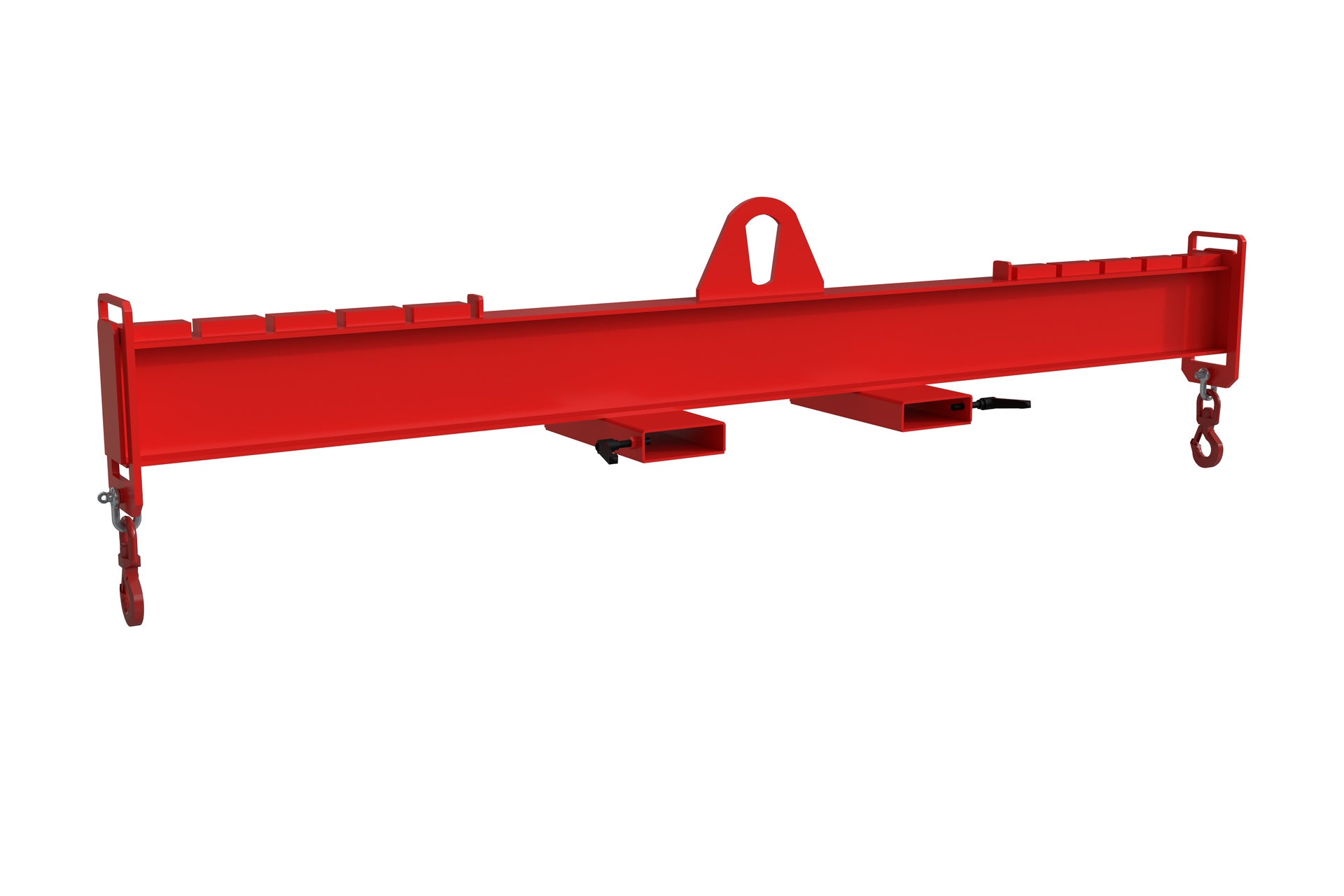

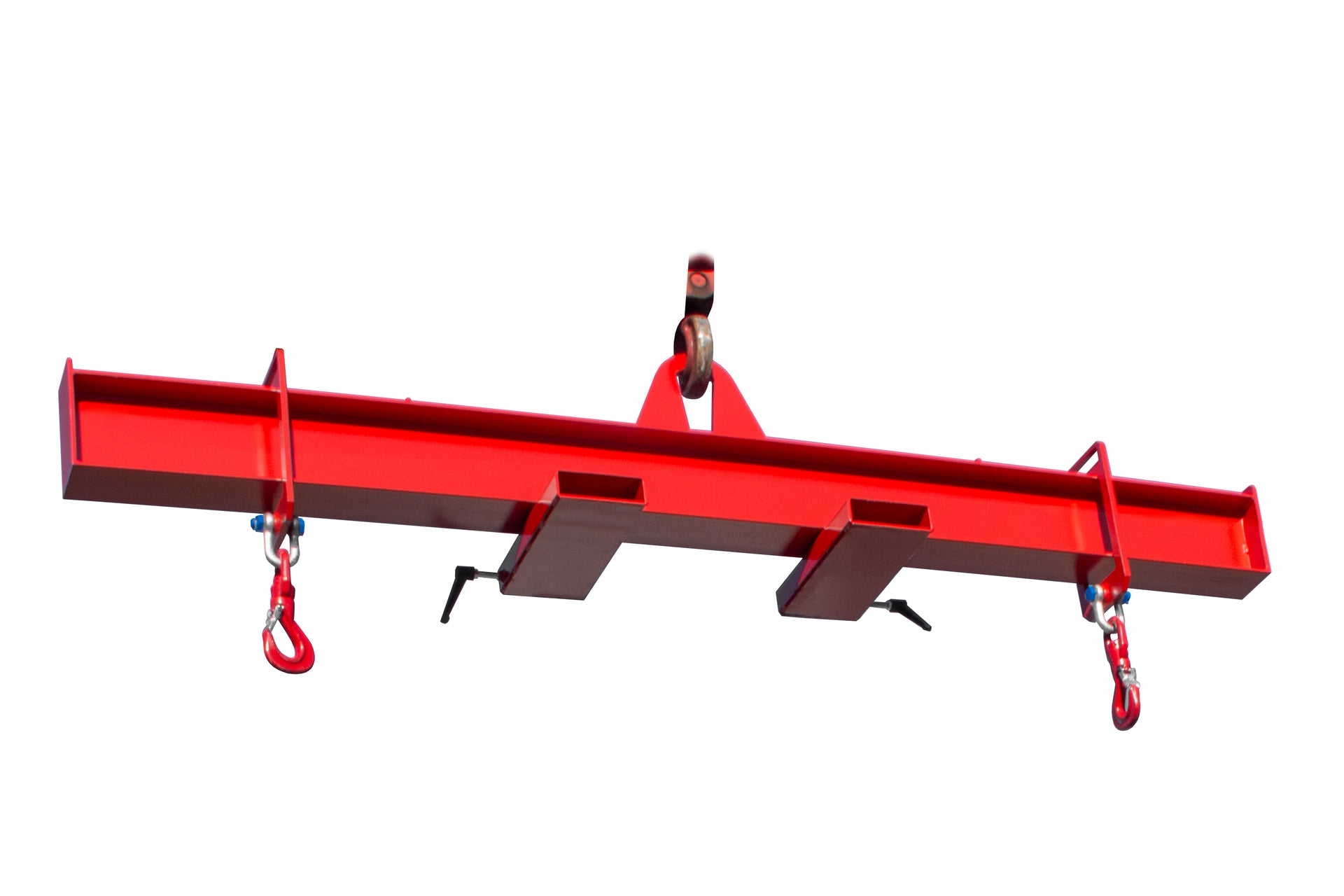

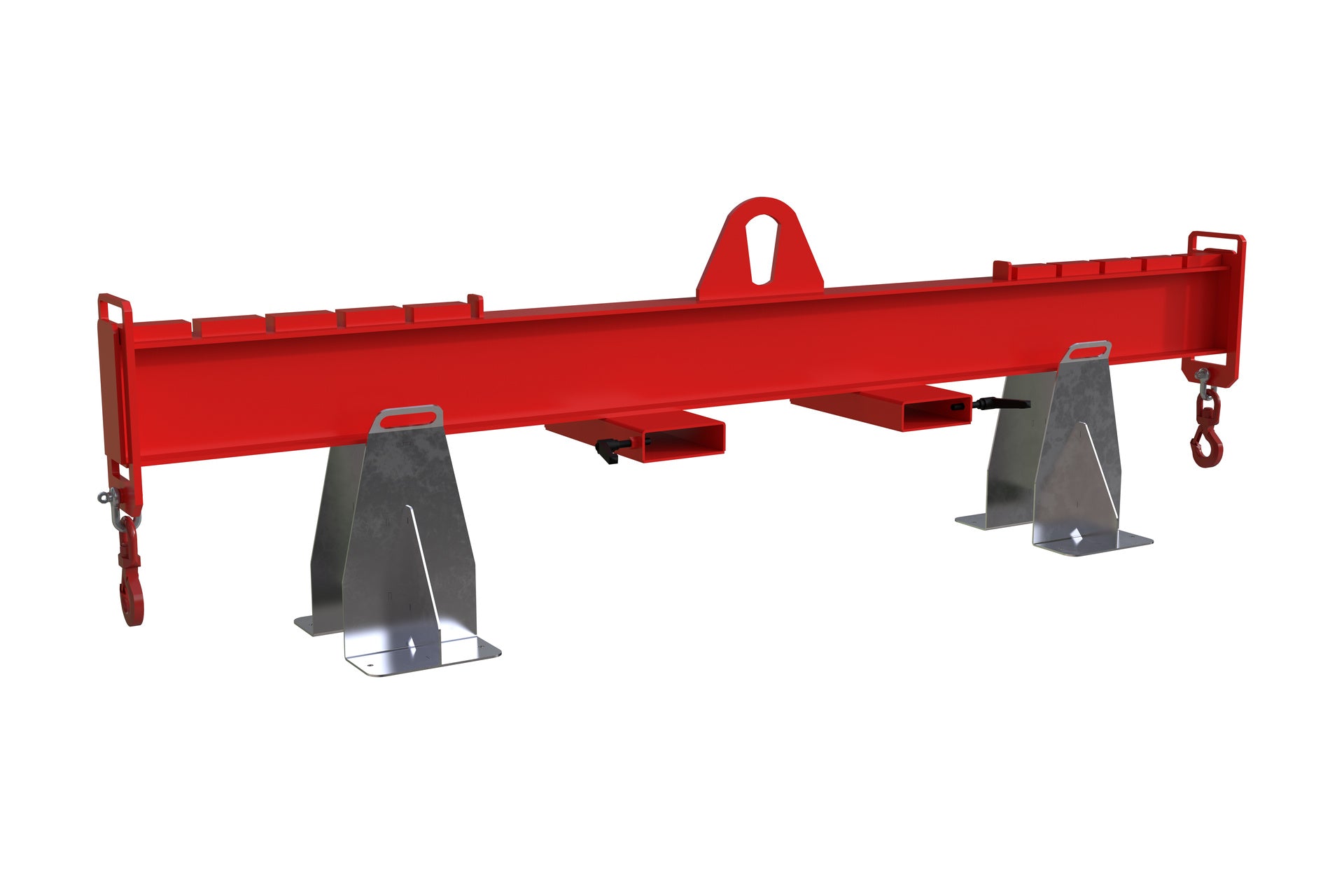

Robust beam traverse with crane eye and fork pockets for fork tines. Designed for occasional lifting and transport of loads that exceed the length of your forklift tines.
- 2 safeguards against slipping off the forks
- 2 swivel hooks
- 6 different hanging positions per side in a 150 mm grid. Quick, tool-free position changes
- Painted RAL 3000 Flame red
- Overall width: 3,040 mm | Fork length: 460 mm
- Distance between fork pockets: 500 mm
- Hook spacing: 1,500 mm (min) - 3,000 mm (max)
- Supplied assembled
| Model | Capacity | Fork Pocket (W ? H) | Height | Weight |
|---|---|---|---|---|
| BT 3001 | 1,000 kg | 200 x 60 mm | 570 mm | 103 kg |
| BT 3002 | 2,000 kg | 200 x 60 mm | 715 mm | 140 kg |
| BT 3003 | 3,000 kg | 220 x 80 mm | 805 mm | 156 kg |
| BT 3005 | 5,000 kg | 220 x 80 mm | 960 mm | 212 kg |
If the options here don't meet your requirements, we can customise your order.
Please give us a call on (021) 4885 311 or complete the quote request form.
