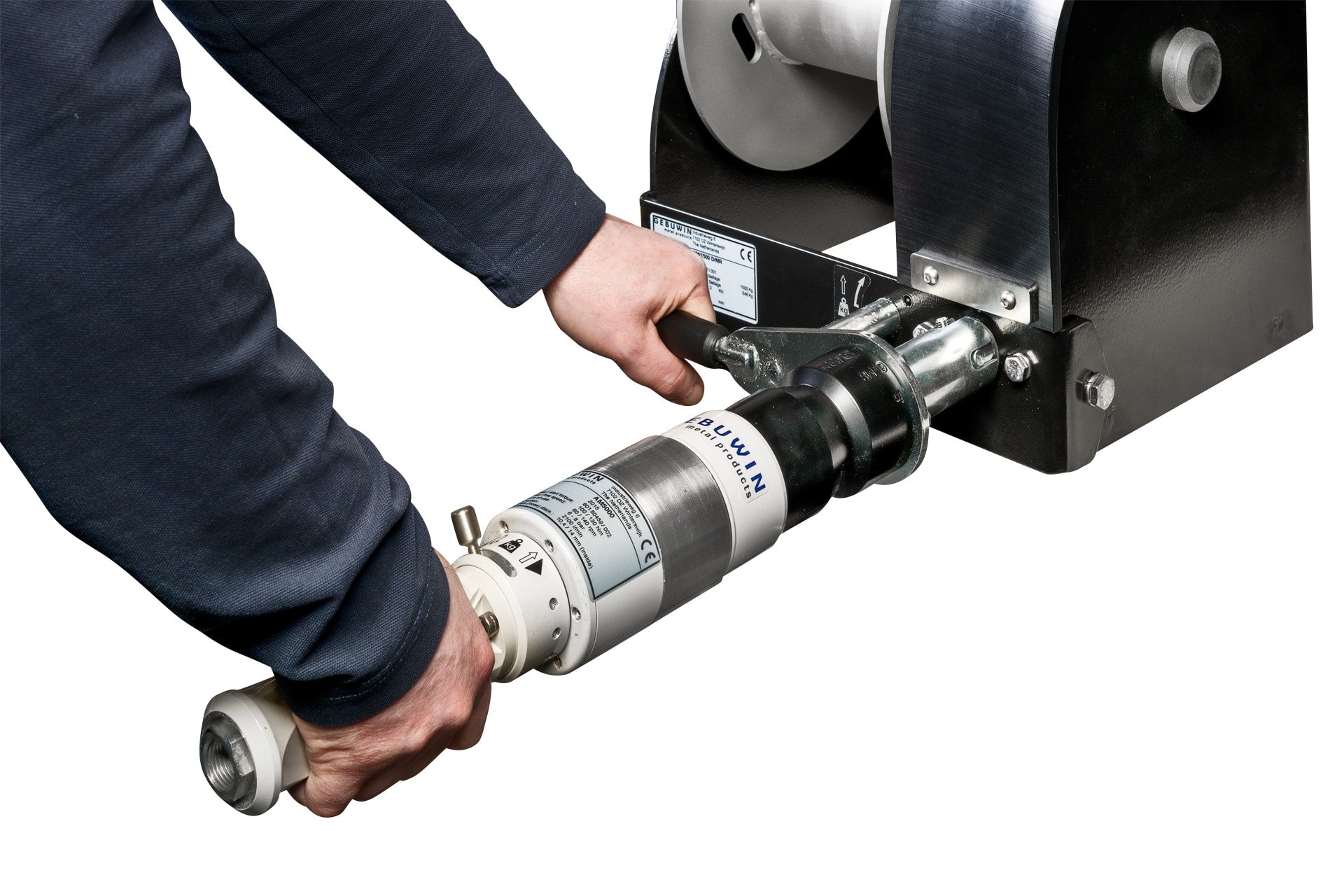

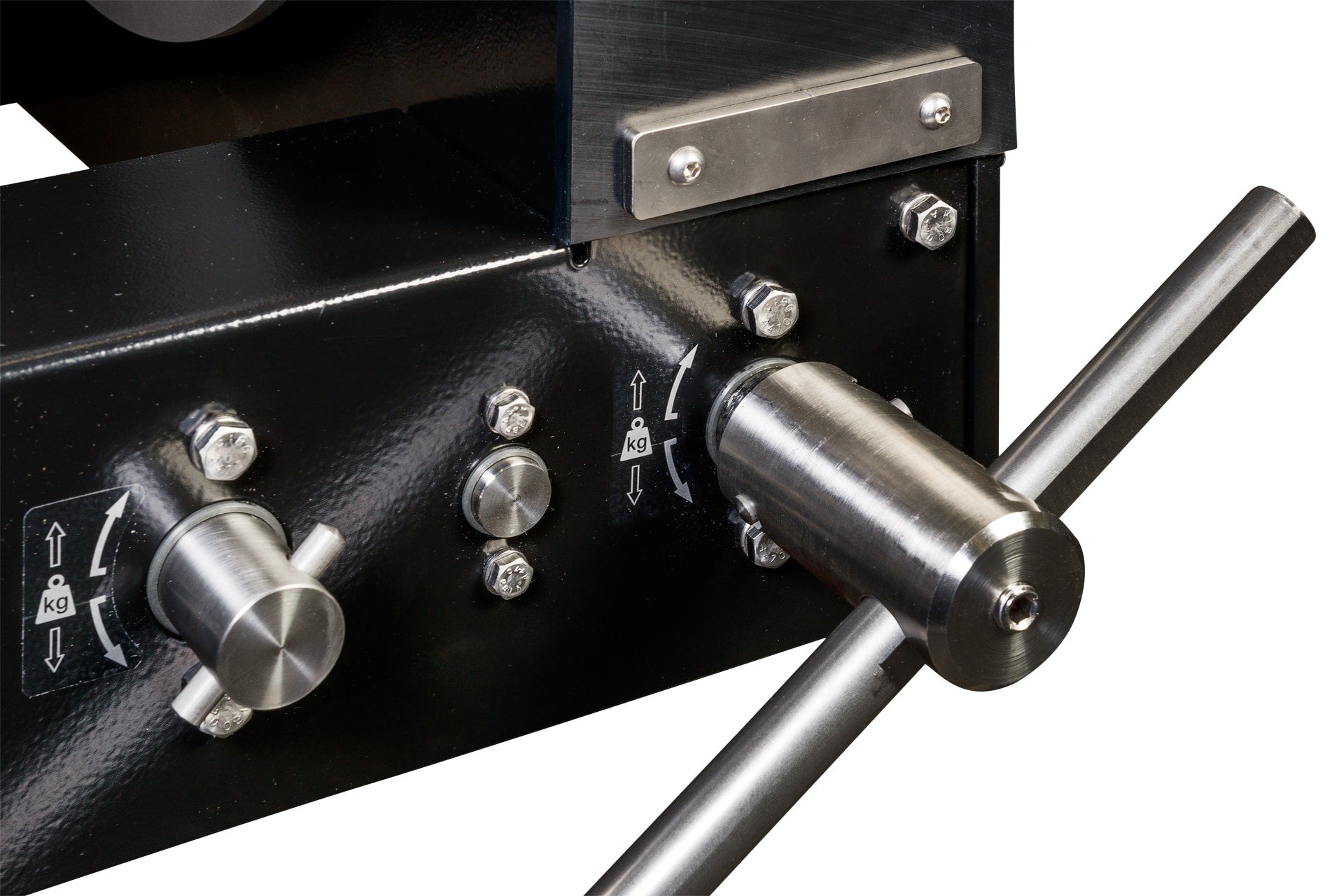

Marine worm gear hand winch 3000kg
by Gebuwin
SKU MR3000 C5M
Capacity: up to 3000Kg
Save 35%
Price on application.
The name of this winch implies that it belongs to the robust winches which are often used in the environment of salt water, such as the marine and offshore industry. With its IP54 rating, this marine winch is resistant to splash water and dust on the inside.
- Resistant to splash water IP54
- 3 coatings according to C5M
- Stainless steel 316 parts
| Capacity 1st layer | 3000 kg (6614 lb) |
| Capacity 4th layer | 2143 kg (4725 lb) |
| Capacity top layer | 1667 kg (3675 lb) |
| Lifting speed | 0.3 m/min (1 ft/min) |
| Rope diameter | 14 mm (0.55 in) |
| MBL of cable | 90 kN |
| Rope storage 1st layer | 5.7 meter (19 ft) |
| Rope storage 4th layer | 32.5 meter (107 ft) |
| Rope storage top layer | 68.7 meter (225 ft) |
| Crank effort at full load | 14 kg (31 lb) |
| Weight (without rope) | 104 kg (229 lb) |
| Article number | 77277080 |
| Type name | MR3000 C5M |
This product can lift a maximum of: 3000Kg
If you require a different maximum lift capacity, please select from the options below:
3000Kg
5000Kg
Price on application.
If the options here don't meet your requirements, we can customise your order.
Please give us a call on (021) 4885 311 or complete the quote request form.
