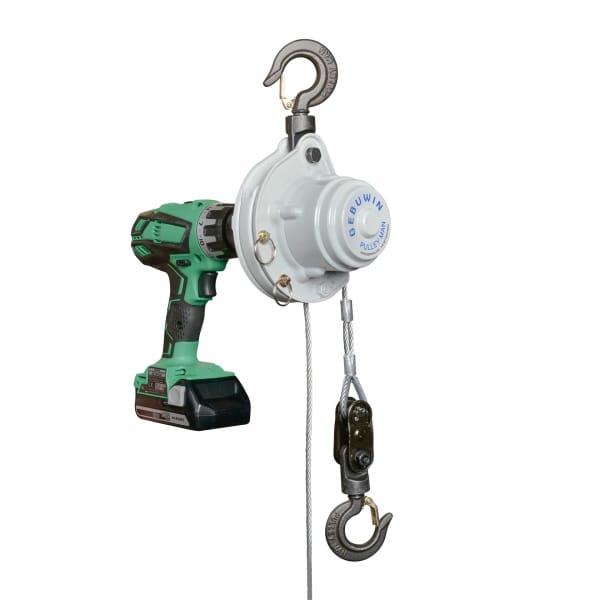

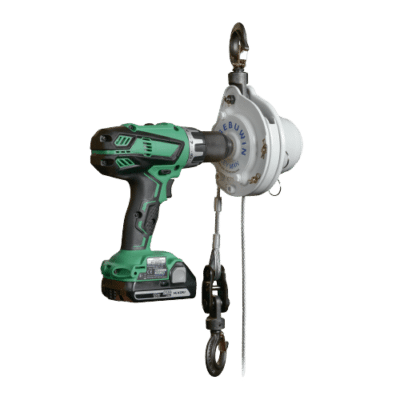

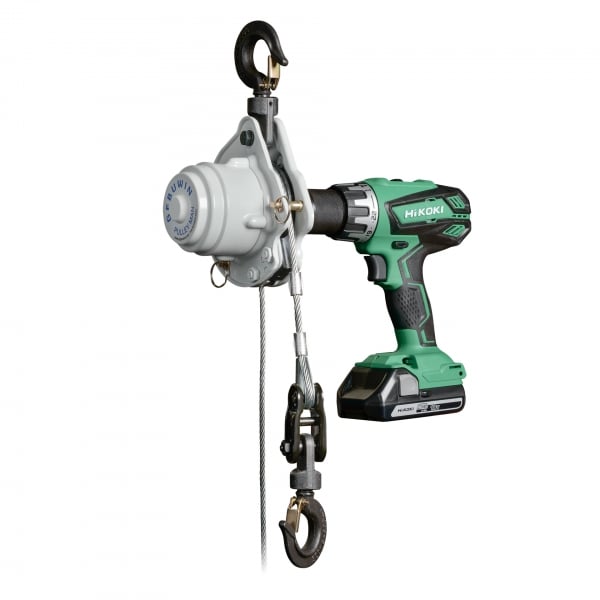

Pulley Man 300kg
Capacity: up to 300Kg
The Pulley Man actually falls a little outside the box when you look at the range of winches, but it really is a must-have. Weighing in at 4 kg, the Pulley Man is easy to carry, making it flexible and able to serve you anywhere quickly. Operation is achieved through the use of a cordless drill and installation is possible in three different ways and also rotates 360 degrees. In addition, the infinite cable length makes this Pulley Man a must for your workshop inventory.
- Lightweight and portable at 4 kg
- Can be operated with cordless drill
- 360 degrees rotatable and unwinding cable length
| Specification | Value |
|---|---|
| Lifting capacity | 300 kg (661 lb) |
| Pulling capacity (load on wheels, 6° inclination) | 1500 kg (3307 lb) |
| Pulling capacity (load on wheels, 35° inclination) | 450 kg (992 lb) |
| No. of lines | 1 |
| Lifting speed | 4 m/min (13 ft/min) |
| Cable diameter-Ø | 4,76 mm (0.19 in) |
| Standard cable length with hook | 12 m (39 ft) |
| Weight (without rope) | 3,8 kg (8 lb) |
| Weight (with rope) | 5 kg (11 lb) |
| Weight complete set | 9,5 kg (21 lb) |
| Article number | 77410001 |
| Type name | PM300 |
This product can lift a maximum of: 300Kg
If you require a different maximum lift capacity, please select from the options below:
Price on application.
If the options here don't meet your requirements, we can customise your order.
Please give us a call on (021) 4885 311 or complete the quote request form.
