Swivel davit crane 250kg
Capacity: up to 250Kg
Gebuwin has developed this modern designed folding swivel davit crane especially for lifting goods on location. This davit crane helps you carry out your work efficiently without the risk of physical strain. Gebuwin produces three types of lifting davits, which vary in lifting capacity and length of the boom. Because of the integrated winch and cable, the davit crane is not only compact but also low-maintenance. The crank is also adjustable in length, so that the lifting speed can be adjusted. It is a very good solution to lift or lower a load in a very user-friendly way.
- Ready to use within a few seconds
- Lightweight and portable
- Integrated winch and cable in ergonomic modern design
- Robust and safe lifting davit crane in compliance with EN13157
- Load pressure brake with double ratchet system
- 360° rotation via ball bearings

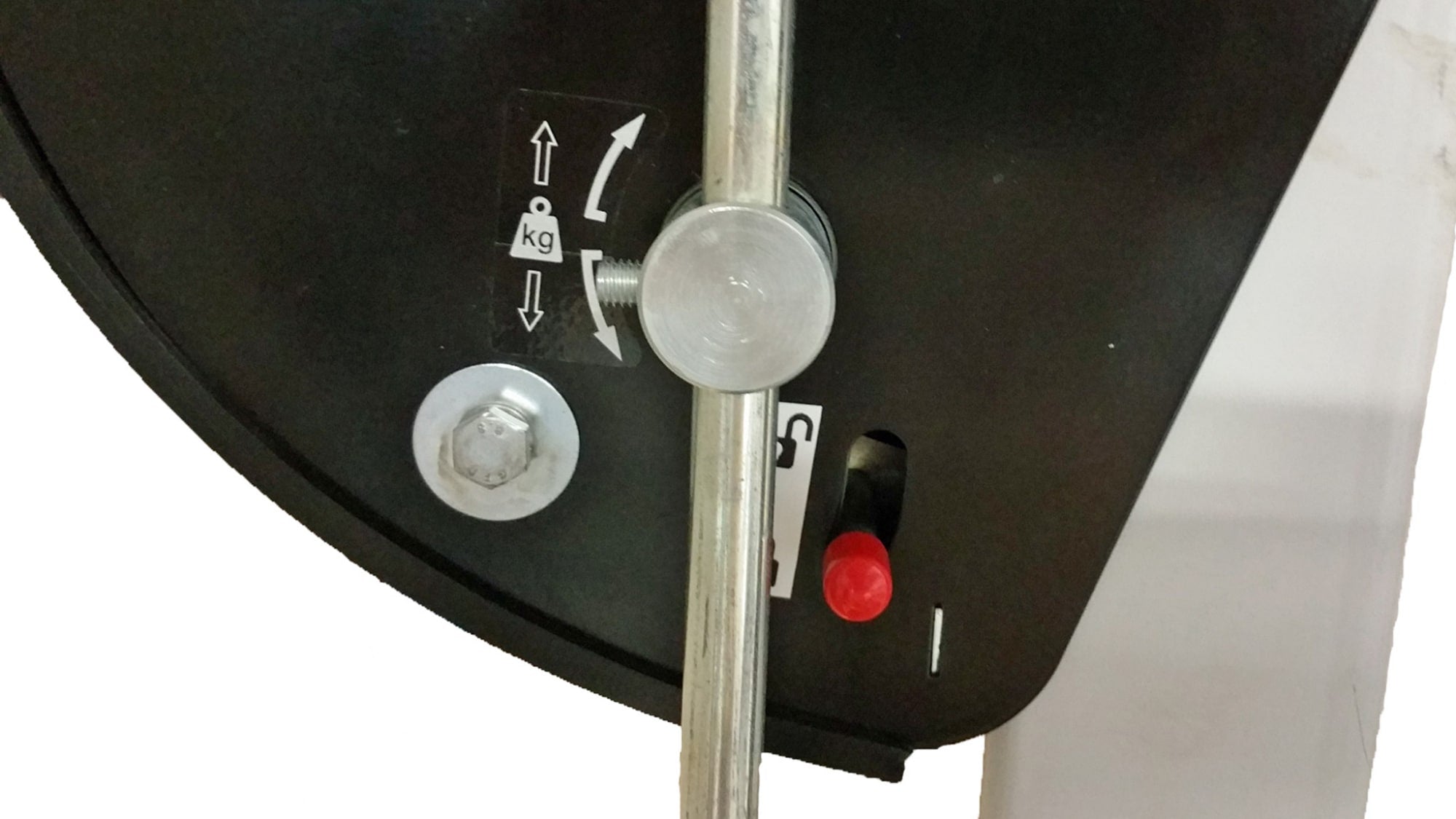

- Adjustable crank
- Includes 13-meter wire rope (5mm diameter) with hook
- Single layer of paint
| Specification | Value |
|---|---|
| Reach arm | 60 cm, 80 cm |
| Options | ATEX certified |
| Capacity 1st layer | 250 kg (551 lb) |
| Capacity top layer | 250 kg (551 lb) |
| Lifting speed | 1.2 m/min (4 ft/min) |
| Rope diameter | 4 mm (0.16 in) |
| Rope storage top layer | 18 meter (59 ft) |
| Crank effort at full load | 8 kg (18 lb) |
| Weight Swivel davit | 30 kg (66 lb) |
| Weight floor-socket | 8.9 |
| Article number | 77001870 |
| Type name | SD250 |
This product can lift a maximum of: 250Kg
If you require a different maximum lift capacity, please select from the options below:
Price on application.
If the options here don't meet your requirements, we can customise your order.
Please give us a call on (021) 4885 311 or complete the quote request form.
