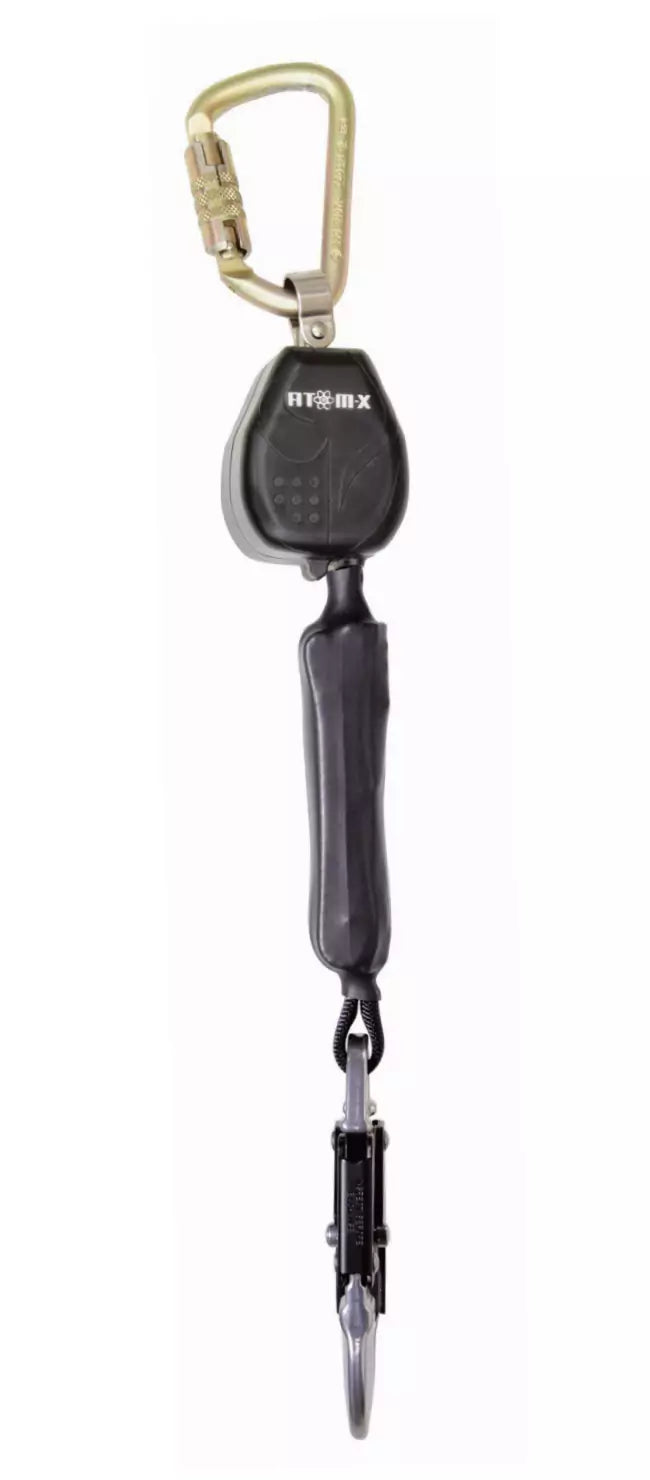

Atom-X COMPACT fall arrest block CHECKMATE
SKU ATOMX
Capacity: up to 140Kg
€175.00 exc. VAT
€215.25 inc. VAT
€215.25 inc. VAT
ATOM-X is the smallest and lightest fall arrest block in its class in the world. Its lightweight chassis, PC ABS housing and Dyneema® webbing contribute to its outstanding strength and performance.
Features
- Anchorage connection: 11mm alloy twist lock karabiner approved to EN362, rated to 25kN (supplied as standard)
- Bottom connector: ANSI rated snap/scaffold hook
- Dyneema® webbing: 22mm, minimum breaking load 22kN
- Capacity: 1.8 metres (6ft)
- Maximum arresting force: webbing 6.0kN
- Average arresting force: webbing 4.0kN
- User weight: 150kg (330lbs) maximum
Principal Materials
- External housings: PC ABS high strength and rigidity, UV stabilised
- Shaft: steel zinc plated & passivated
- Chassis: hot rolled steel zinc plated & passivated
- Pawl: hardened steel, zinc plated & passivated
- Bearing plates: PTFE
- Aluminium snap hook: 23kN minimum breaking load, 16kN rated gate
Standards
- EN 360
- AS/NZS 1891.3:1997
- ANSI Z359.14-2012 Class A
If the options here don't meet your requirements, we can customise your order.
Please give us a call on (021) 4885 311 or complete the quote request form.
