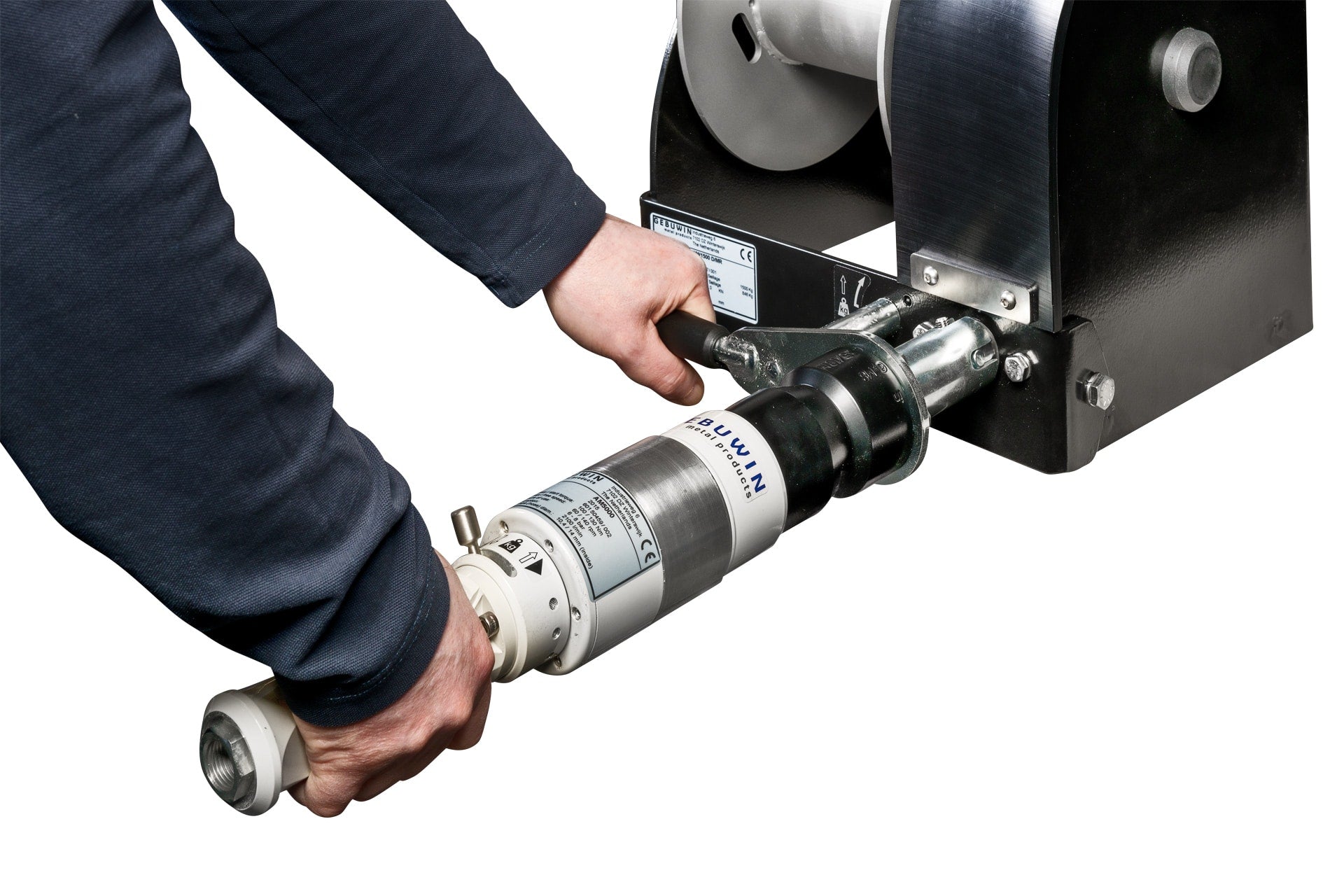

Marine worm gear hand winch 5000kg
by Gebuwin
SKU MR5000 C5M
Capacity: up to 5000Kg
Save 35%
Price on application.
The name of this winch implies that it belongs to the robust winches which are often used in the environment of salt water, such as the marine and offshore industry.
- Resistant to splash water IP54
- 3 coatings according to C5M
- Stainless steel 316 parts
| Capacity 1st layer | 5000 kg (11023 lb) |
| Capacity 4th layer | 3585 kg (7904 lb) |
| Capacity top layer | 3276 kg (7222 lb) |
| Lifting speed | 0.2 m/min (1 ft/min) |
| Rope diameter | 18 mm (0.71 in) |
| MBL of cable | 160 kN |
| Rope storage 1st layer | 5.2 meter (17 ft) |
| Rope storage 4th layer | 31.5 meter (103 ft) |
| Rope storage top layer | 42.9 meter (141 ft) |
| Crank effort at full load | 15 kg (33 lb) |
| Weight (without rope) | 135 kg (298 lb) |
| Article number | 77279080 |
| Type name | MR5000 C5M |
This product can lift a maximum of: 5000Kg
If you require a different maximum lift capacity, please select from the options below:
3000Kg
5000Kg
Price on application.
If the options here don't meet your requirements, we can customise your order.
Please give us a call on (021) 4885 311 or complete the quote request form.
