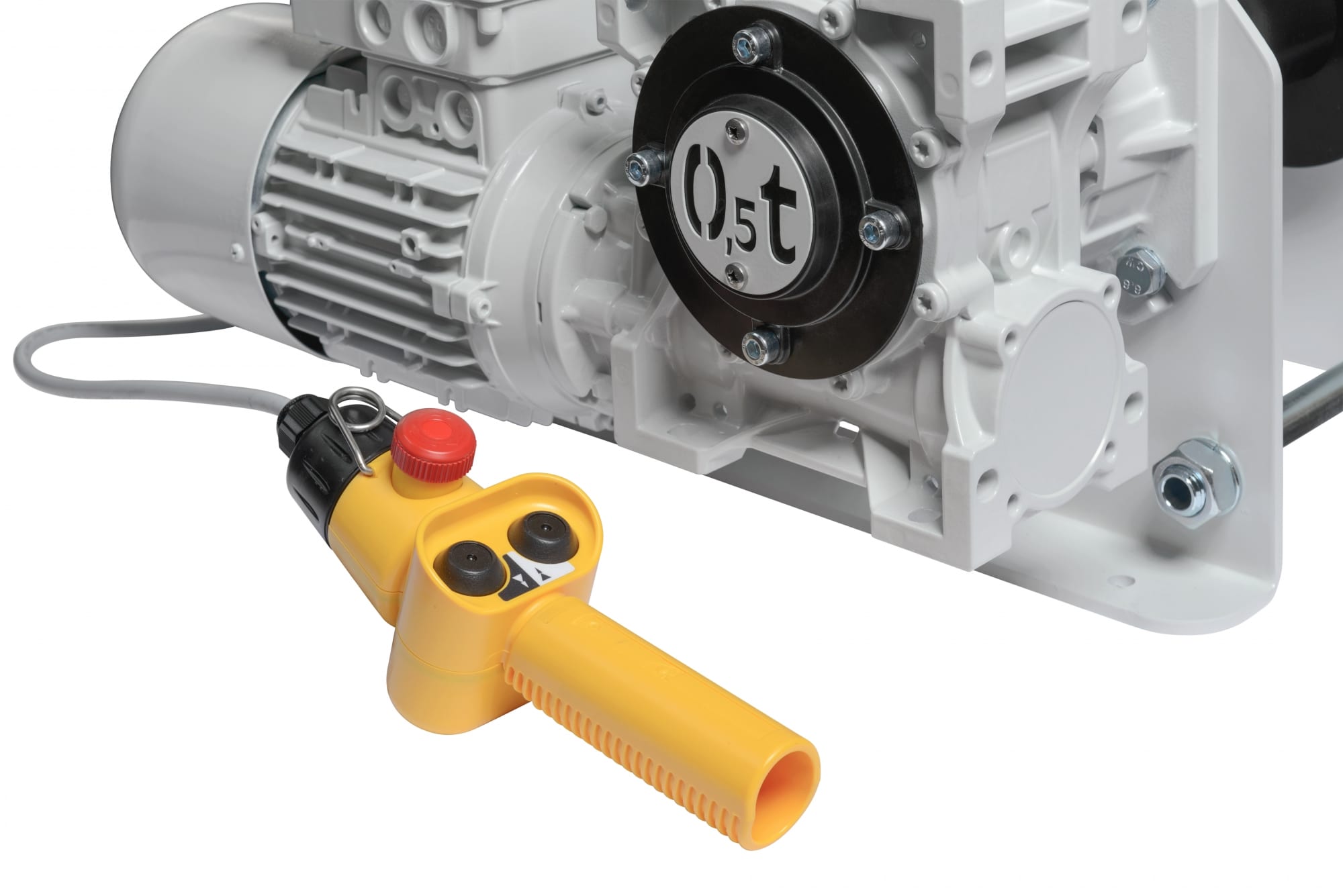

Electric e-Winch 500kg
by Gebuwin
SKU e-W500
Capacity: up to 500Kg
Save 35%
Price on application.

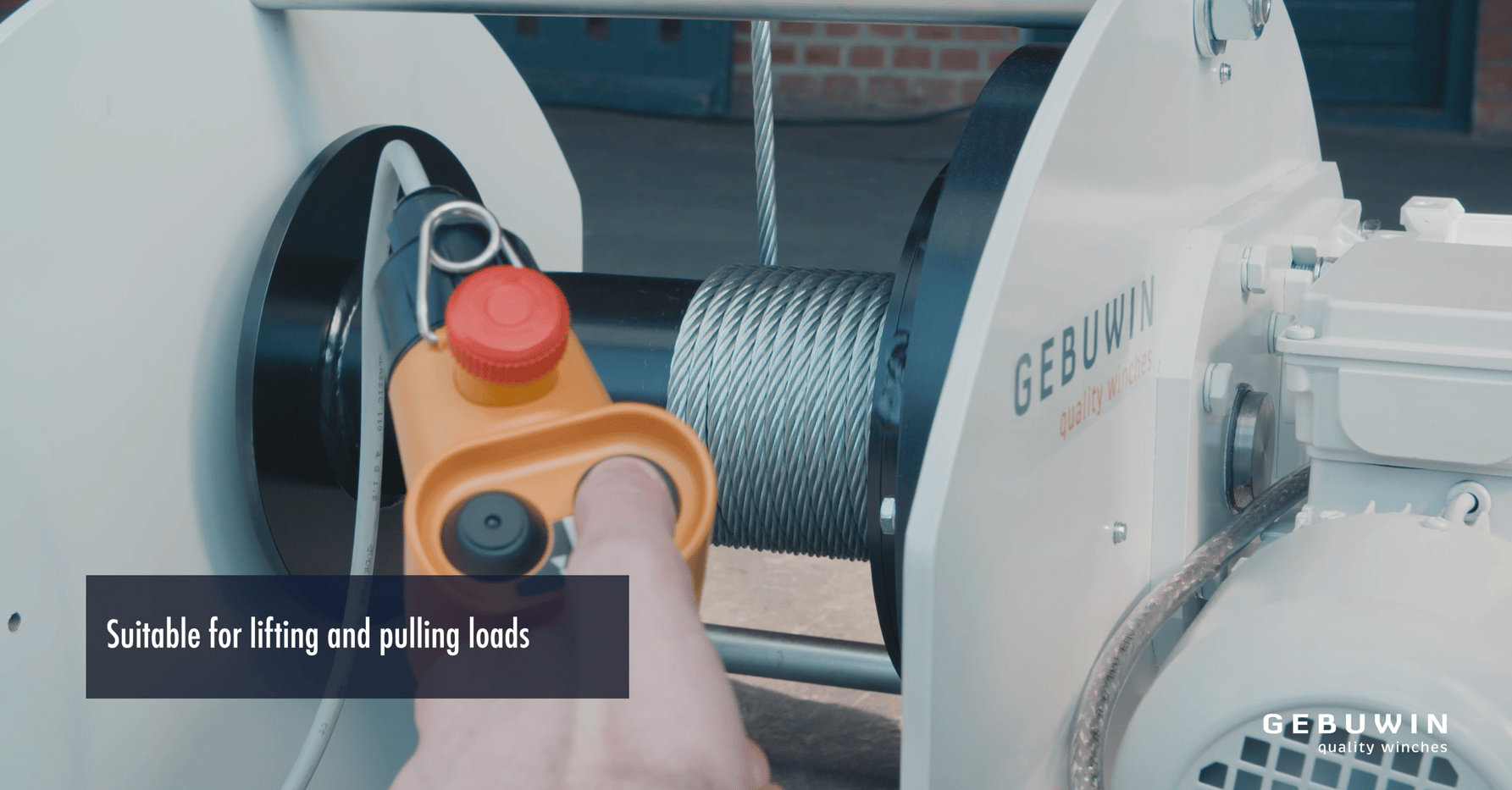

Newly developed electric pulling and lifting electric winch with a powerful three-phase motor, budget-friendly and strong in its work.
- Robust and safe electric lifting and pulling winch

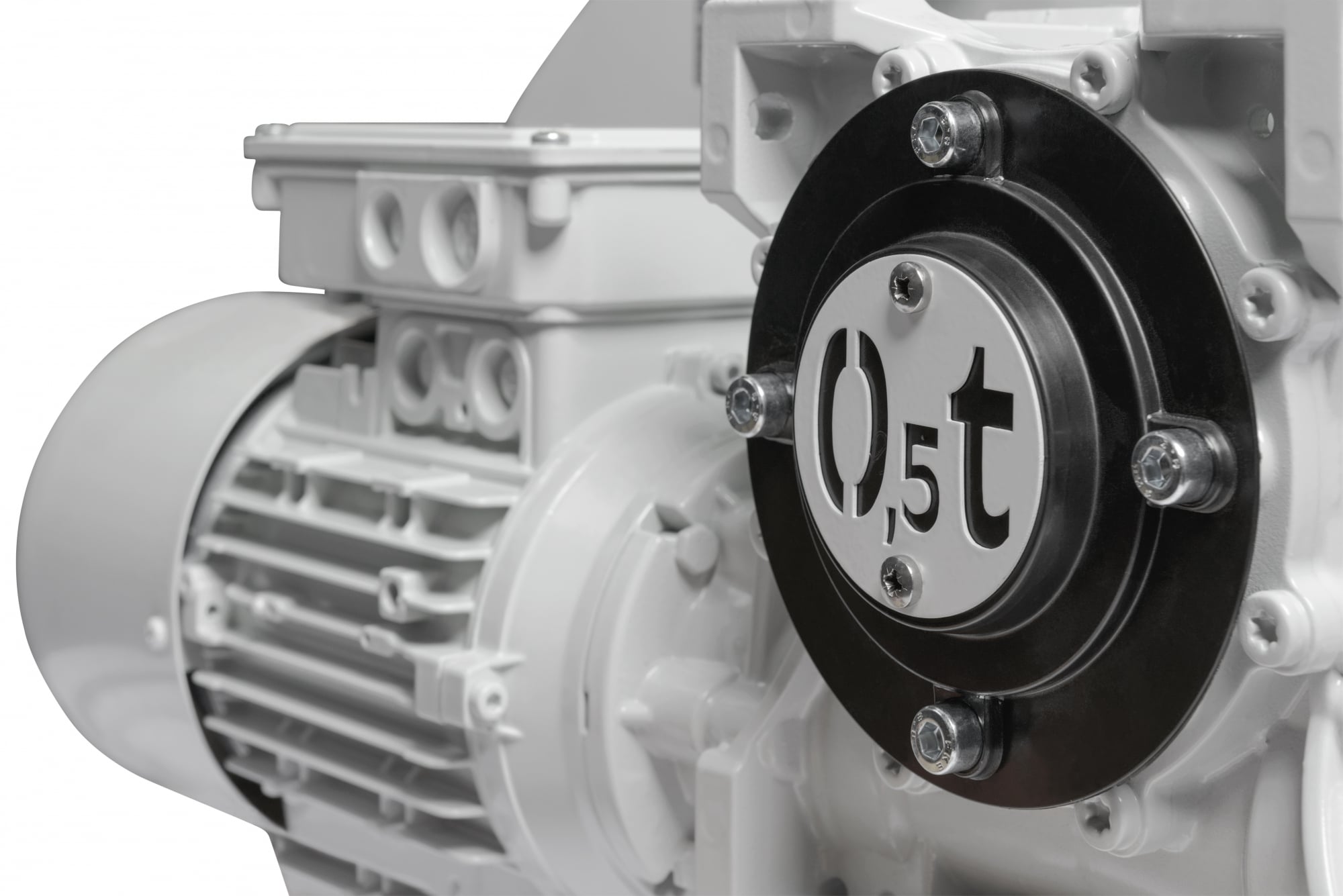

- Powerful three-phase motor
- Budget-friendly and strong in its work
| Specification | Value |
|---|---|
| Capacity 1st layer | 500 kg (1102 lb) |
| Capacity top layer | 247 (7) kg (545 lb) |
| Lifting speed | 5,4 m/min (18 ft/min) |
| Rope diameter-Ø | 6 mm (0.24 in) |
| Rope storage 1st layer | 3,8 meter (12 ft) |
| Rope storage top layer | 45 meter (148 ft) |
| Motor output (400 V) | 0,75 kW |
| Current (400V) | 2 A |
| FEM classification | 1Bm |
| MBL of cable | 33,1 kN |
| Weight (without rope) | 60 kg (132 lb) |
| Finish | Standard one layer of paint |
| Type name | e-W500 |
This product can lift a maximum of: 500Kg
If you require a different maximum lift capacity, please select from the options below:
Price on application.
If the options here don't meet your requirements, we can customise your order.
Please give us a call on (021) 4885 311 or complete the quote request form.
