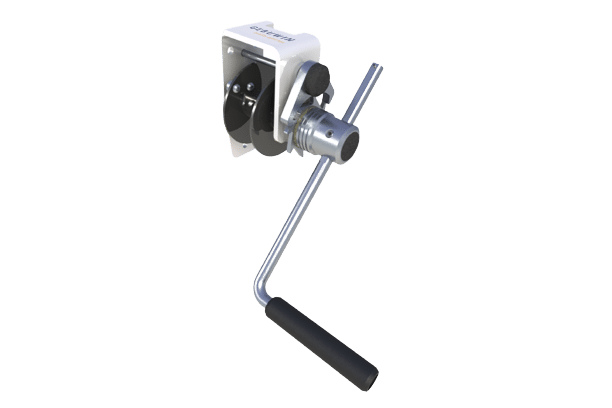

Spur gear hand winch 150kg
by Gebuwin
SKU TL150
Capacity: up to 150Kg
Save 35%
Price on application.
This small spur gear winch is known for its high speed due to its direct drive. This fast and easy winch is a very compact lightweight of 4 kg and extremely suitable for smaller work.
- High speed due to spur gear transmission
- Very compact and lightweight at 4 kg
- Ideal for small jobs
| Capacity 1st layer | 150 kg (331 lb) |
|---|---|
| Capacity 4th layer | 98 kg (216 lb) |
| Capacity top layer | 67 kg (148 lb) |
| Lifting speed | 7,3 m/min (24 ft/min) |
| Rope diameter-Ø | 4 mm (0.16 in) |
| MBL of cable | 9 kN |
| Rope storage 1st layer | 0,7 meter (2 ft) |
| Rope storage 4th layer | 4,9 meter (16 ft) |
| Rope storage top layer | 13,1 meter (43 ft) |
| Crank effort at full load | 10 kg (22 lb) |
| Weight (without rope) | 4 kg (9 lb) |
| Article number | 77111010 |
| Type name | TL150 |
This product can lift a maximum of: 150Kg
If you require a different maximum lift capacity, please select from the options below:
Price on application.
If the options here don't meet your requirements, we can customise your order.
Please give us a call on (021) 4885 311 or complete the quote request form.
