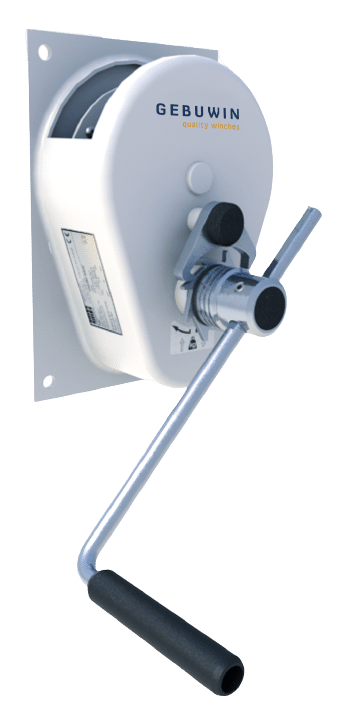

Spur gear hand winch 300kg
by Gebuwin
SKU TL300
Capacity: up to 300Kg
Save 35%
Price on application.
This spur gear winch is very efficient and safe due to its spur gear transmission and developed design. The load-pressure brake with a double ratchet system makes it very reliable. Extra attention has also been paid to the semi-closed housing.
- High speed due to spur gear transmission
- Semi-closed housing

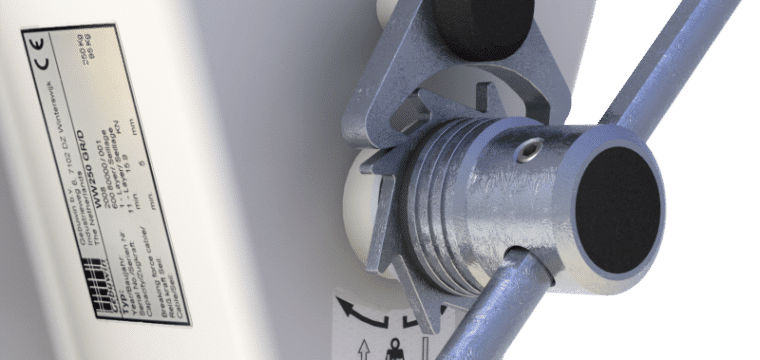

- Load pressure brake with double ratchet system
| Capacity 1st layer | 300 kg (661 lb) |
|---|---|
| Capacity 4th layer | 234 kg (516 lb) |
| Capacity top layer | 172 kg (379 lb) |
| Lifting speed | 1.9 m/min (6 ft/min) |
| Rope diameter-Ø | 4 mm (0.16 in) |
| MBL of cable | 9 kN |
| Rope storage 1st layer | 2.3 meter (8 ft) |
| Rope storage 4th layer | 12.5 meter (41 ft) |
| Rope storage top layer | 35.4 meter (116 ft) |
| Crank effort at full load | 5.5 kg (12 lb) |
| Weight (without rope) | 10 kg (22 lb) |
| Article number | 77121000 |
| Type name | TL300 |
This product can lift a maximum of: 300Kg
If you require a different maximum lift capacity, please select from the options below:
Price on application.
If the options here don't meet your requirements, we can customise your order.
Please give us a call on (021) 4885 311 or complete the quote request form.
