Worm gear hand winch 1500kg
Capacity: up to 1500Kg

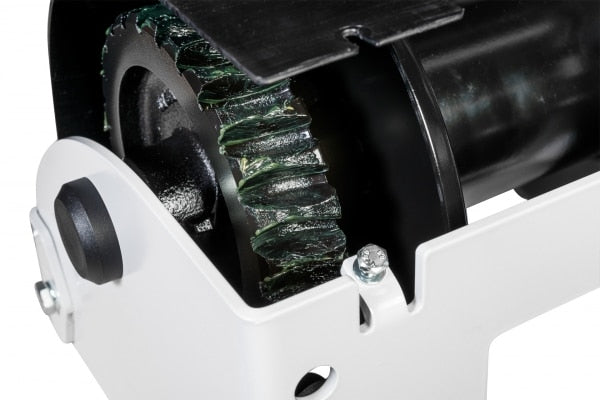

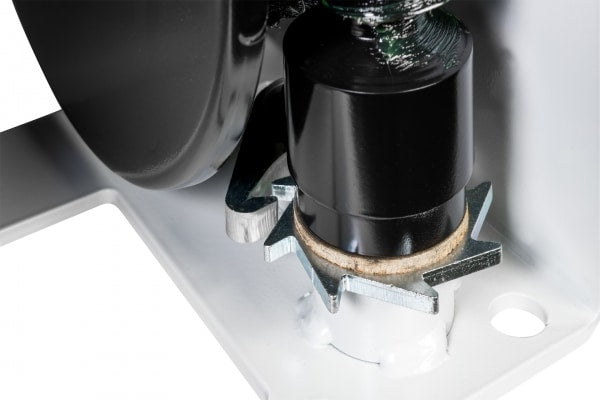

This small worm gear winch has, as the name implies, a worm gear transmission. This type of transmission, in combination with the load-pressure brake, ensures that this winch is a very safe winch. In addition, the small worm gear winch is easy to use and can be mounted in any position. The winch also has space for a large cable storage up to 120 meters. In short, a very safe and reliable winch that is easy to use.
- Worm gear transmission for extra safety

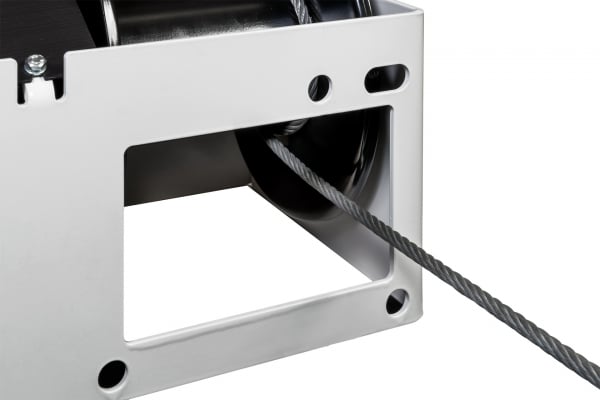

- Large cable storage (to 120 meters)

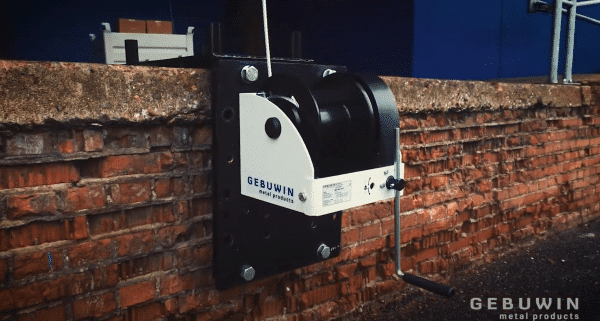

- Mounting in all positions
| Specification | Value |
|---|---|
| Capacity 1st layer | 1500 kg (3307 lb) |
| Capacity 4th layer | 1025 kg (2260 lb) |
| Capacity top layer | 846 kg (1865 lb) |
| Lifting speed | 0.5 m/min (2 ft/min) |
| Rope diameter-Ø | 10 mm (0.39 in) |
| MBL of cable | 51 kN |
| Rope storage 1st layer | 4.2 meter (14 ft) |
| Rope storage 4th layer | 24 meter (79 ft) |
| Rope storage top layer | 41 meter (135 ft) |
| Crank effort at full load | 14 kg (31 lb) |
| Weight (without rope) | 24 kg (53 lb) |
| Article number | 77281850 |
| Type name | WW1500 |
This product can lift a maximum of: 1500Kg
If you require a different maximum lift capacity, please select from the options below:
Price on application.
If the options here don't meet your requirements, we can customise your order.
Please give us a call on (021) 4885 311 or complete the quote request form.
