Worm gear hand winch 2000kg
Capacity: up to 2000Kg

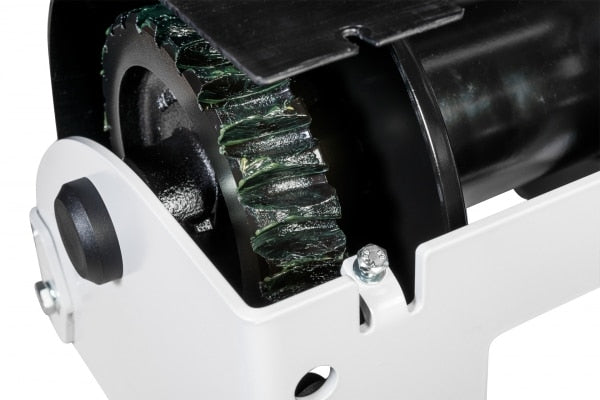

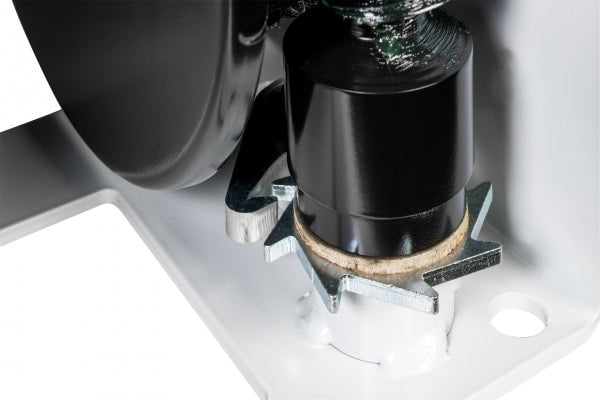

This large worm gear winch has, as the name implies, a worm gear transmission. This type of transmission, in combination with the load-pressure brake, ensures that this winch is a very safe winch. In addition, the large worm gear winch is easy to use and can be mounted in any position. The winch also has space for a large cable storage up to 120 meters. In short, a very safe and reliable winch that is easy to use.
- Worm gear transmission for extra safety
- Large cable storage (to 120 meters)
- Mounting in all positions
| Specification | Value |
|---|---|
| Capacity 1st layer | 2000 kg (4409 lb) |
| Capacity 4th layer | 1399 kg (3084 lb) |
| Capacity top layer | 1075 kg (2370 lb) |
| Lifting speed | 0,3 m/min (1 ft/min) |
| Rope diameter-Ø | 12 mm (0.47 in) |
| MBL of cable | 60 kN |
| Rope storage 1st layer | 5 meter (16 ft) |
| Rope storage 4th layer | 28,4 meter (93 ft) |
| Rope storage top layer | 60,5 meter (198 ft) |
| Crank effort at full load | 15 kg (33 lb) |
| Weight (without rope) | 60 kg (132 lb) |
| Article number | 77276000 |
| Type name | WW2000 |
This product can lift a maximum of: 2000Kg
If you require a different maximum lift capacity, please select from the options below:
Price on application.
If the options here don't meet your requirements, we can customise your order.
Please give us a call on (021) 4885 311 or complete the quote request form.
