Worm gear hand winch 5000kg
Capacity: up to 5000Kg

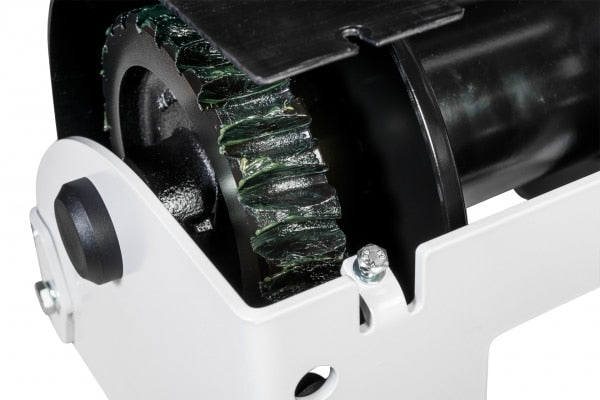

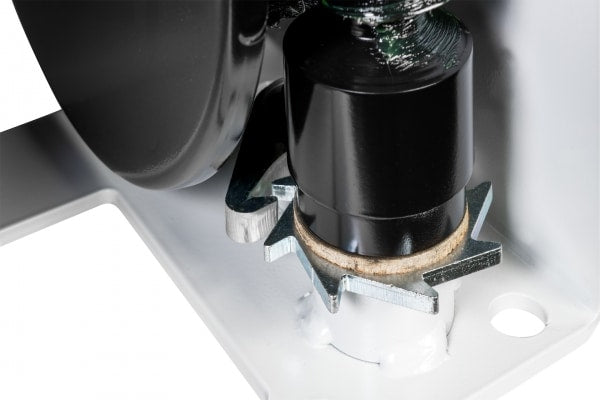

This large worm gear winch has, as the name implies, a worm gear transmission. This type of transmission, in combination with the load-pressure brake, ensures that this winch is a very safe winch. In addition, the large worm gear winch is easy to use and can be mounted in any position. The winch also has space for a large cable storage up to 120 meters. In short, a very safe and reliable winch that is easy to use.
- Worm gear transmission for extra safety

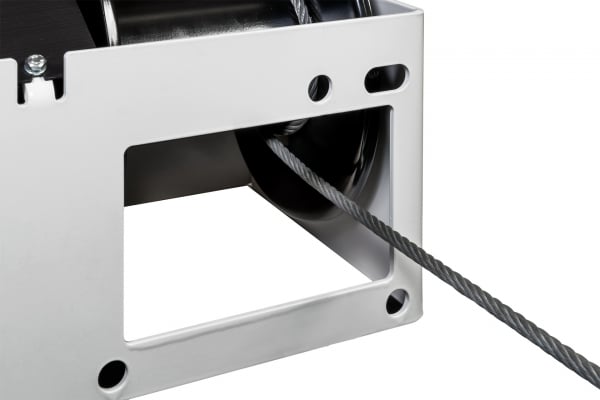

- Large cable storage (to 120 meters)

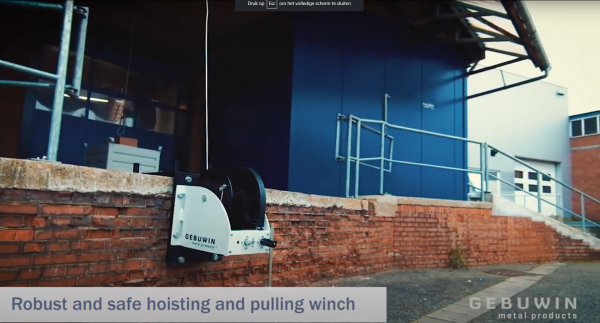

- Mounting in all positions
| Specification | Value |
|---|---|
| Capacity 1st layer | 5000 kg (11023 lb) |
| Capacity 4th layer | 3585 kg (7904 lb) |
| Capacity top layer | 3276 kg (7222 lb) |
| Lifting speed | 0,2 m/min (1 ft/min) |
| Rope diameter-Ø | 16 mm (0.63 in) |
| MBL of cable | 168 kN |
| Rope storage 1st layer | 5,9 meter (19 ft) |
| Rope storage 4th layer | 34,2 meter (112 ft) |
| Rope storage top layer | 57,8 meter (190 ft) |
| Crank effort at full load | 15 kg (33 lb) |
| Weight (without rope) | 117 kg (258 lb) |
| Article number | 77281100 |
| Type name | WW5000 |
This product can lift a maximum of: 5000Kg
If you require a different maximum lift capacity, please select from the options below:
Price on application.
If the options here don't meet your requirements, we can customise your order.
Please give us a call on (021) 4885 311 or complete the quote request form.
