Worm gear hand winch 500kg
Capacity: up to 500Kg

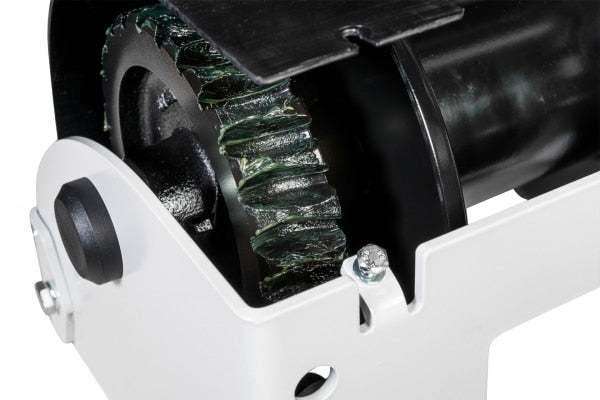

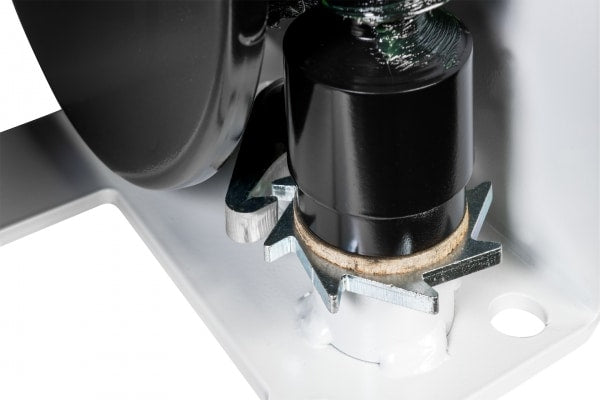

This small worm gear winch has, as the name implies, a worm gear transmission. This type of transmission, in combination with the load-pressure brake, ensures that this winch is a very safe winch. In addition, the small worm gear winch is easy to use and can be mounted in any position. The winch also has space for a large cable storage up to 120 meters. In short, a very safe and reliable winch that is easy to use.
- Worm gear transmission for extra safety

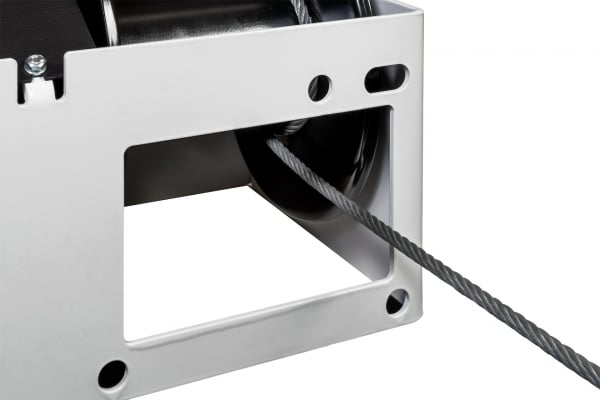

- Large cable storage (to 120 meters)

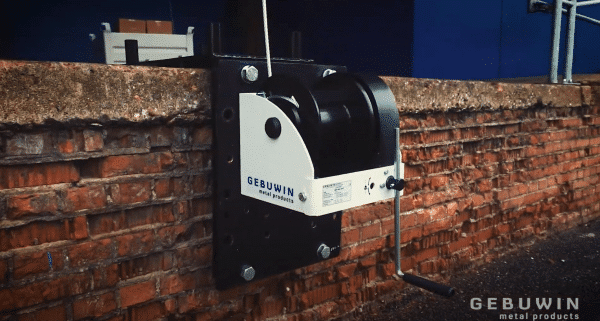

- Mounting in all positions
| Specification | Value |
|---|---|
| Capacity 1st layer | 500 kg (1102 lb) |
| Capacity 4th layer | 355 kg (783 lb) |
| Capacity top layer | 224 kg (494 lb) |
| Lifting speed | 1,2 m/min (4 ft/min) |
| Rope diameter-Ø | 6 mm (0.24 in) |
| MBL of cable | 17 kN |
| Rope storage 1st layer | 4,3 meter (14 ft) |
| Rope storage 4th layer | 22,8 meter (75 ft) |
| Rope storage top layer | 78,2 meter (257 ft) |
| Crank effort at full load | 10 kg (22 lb) |
| Weight (without rope) | 13 kg (29 lb) |
| Article number | 77281100 |
| Type name | WW500 |
This product can lift a maximum of: 500Kg
If you require a different maximum lift capacity, please select from the options below:
Price on application.
If the options here don't meet your requirements, we can customise your order.
Please give us a call on (021) 4885 311 or complete the quote request form.
