Worm gear hand winch 3000kg
Capacity: up to 3000Kg

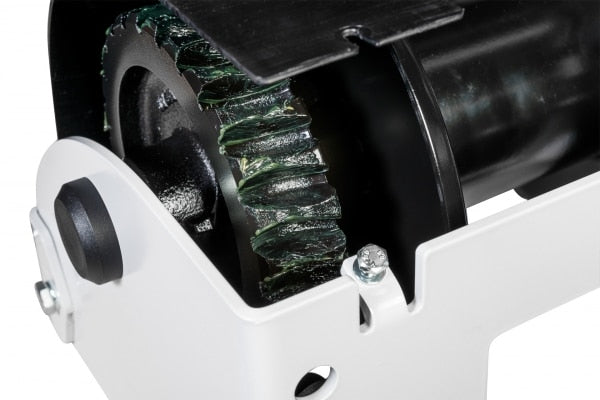

This large worm gear winch has, as the name implies, a worm gear transmission. This type of transmission, in combination with the load-pressure brake, ensures that this winch is a very safe winch. In addition, the large worm gear winch is easy to use and can be mounted in any position. The winch also has space for a large cable storage up to 120 meters. In short, a very safe and reliable winch that is easy to use.
- Worm gear transmission for extra safety
- Large cable storage (to 120 meters)
- Mounting in all positions
| Specification | Value |
|---|---|
| Capacity 1st layer | 3000 kg (6614 lb) |
| Capacity 4th layer | 2143 kg (4725 lb) |
| Capacity top layer | 1667 kg (3675 lb) |
| Lifting speed | 0,3 m/min (1 ft/min) |
| Rope diameter-Ø | 14 mm (0.55 in) |
| MBL of cable | 102 kN |
| Rope storage 1st layer | 5,7 meter (19 ft) |
| Rope storage 4th layer | 32,5 meter (107 ft) |
| Rope storage top layer | 68,7 meter (225 ft) |
| Crank effort at full load | 14 kg (31 lb) |
| Weight (without rope) | 78 kg (172 lb) |
| Article number | 77277000 |
| Type name | WW3000 |
This product can lift a maximum of: 3000Kg
If you require a different maximum lift capacity, please select from the options below:
Price on application.
If the options here don't meet your requirements, we can customise your order.
Please give us a call on (021) 4885 311 or complete the quote request form.
